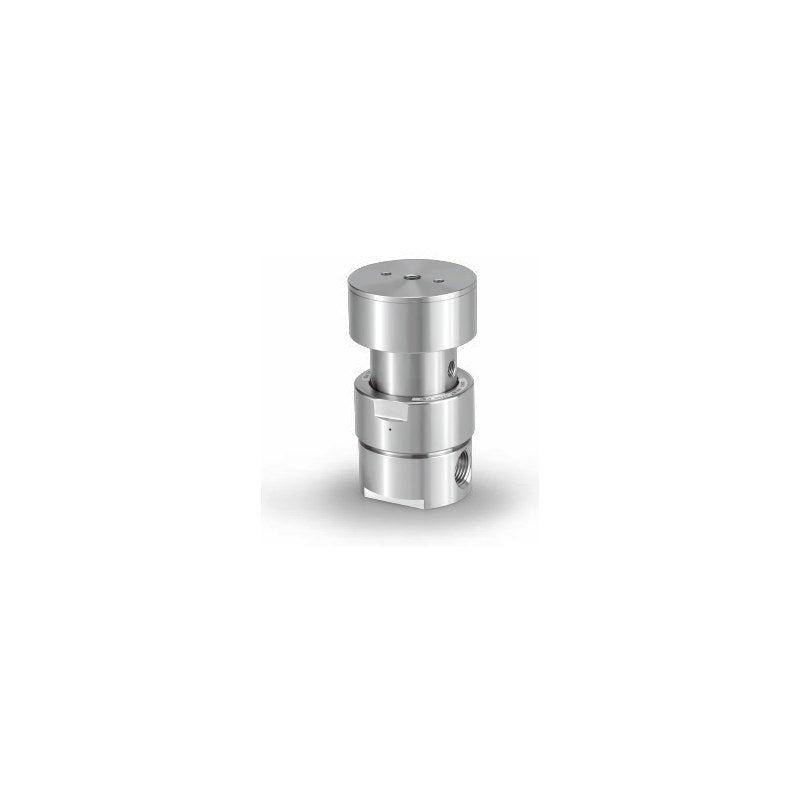

SMC AK14PAT Air-Operated General Gas Regulator (Medium Flow, Tied Diaphragm)

SMC AK14PAT Air-Operated General Gas Regulator (Medium Flow, Tied Diaphragm)

SMC AK14PAT series air-operated tied-diaphragm general gas regulator in stainless steel or brass for medium flow (below 400 slpm).

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • Stainless steel (SUS316) or brass body for general and specialty gases; Ni-Cr-Mo internals available for corrosive gases
  • Inlet up to 2300 psig (15.9 MPa), HR option 20.7 MPa; flow below 400 slpm
  • NPT1/4 to 1/2 female or 1/4 to 1/2 compression fitting connections
  • 2P, 3P bodies (stainless) and 4PL, 5PC bodies (stainless or brass)
  • Listed codes: gauge ports "0" (NPT1/4 port, no gauge); gauges (V3 to 40), plug C, MPA scale, VS/PK/TF seat and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
External leakage 1x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Port connection NPT female thread or compression fitting
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 15.9 MPa (HR 20.7 MPa)
Internal volume 18.7 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 748-749
AK14PATB4PL4400 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK14PATB4PL6600 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT3/8 female
AK14PATB4PL8800 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/2 female
AK14PATB4PL4T4T00 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK14PATB4PL6T6T00 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK14PATB4PL8T8T00 Material: Brass body, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/2 compression fitting
AK14PATB5PC44000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK14PATB5PC66000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT3/8 female
AK14PATB5PC88000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/2 female
AK14PATB5PC4T4T000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK14PATB5PC6T6T000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK14PATB5PC8T8T000 Material: Brass body, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/2 compression fitting
AK14PATS2P44 Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: NPT1/4 female
AK14PATS2P66 Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: NPT3/8 female
AK14PATS2P88 Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: NPT1/2 female
AK14PATS2P4T4T Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/4 compression fitting
AK14PATS2P6T6T Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 3/8 compression fitting
AK14PATS2P8T8T Material: SUS316, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/2 compression fitting
AK14PATS3P440 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK14PATS3P660 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: NPT3/8 female
AK14PATS3P880 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: NPT1/2 female
AK14PATS3P4T4T0 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK14PATS3P6T6T0 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK14PATS3P8T8T0 Material: SUS316, Ni-Cr-Mo internals | Ports: 3 ports (OUT gauge) | Connection: 1/2 compression fitting
AK14PATS4PL4400 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK14PATS4PL6600 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT3/8 female
AK14PATS4PL8800 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/2 female
AK14PATS4PL4T4T00 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK14PATS4PL6T6T00 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK14PATS4PL8T8T00 Material: SUS316, Ni-Cr-Mo internals | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/2 compression fitting
AK14PATS5PC44000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK14PATS5PC66000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT3/8 female
AK14PATS5PC88000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/2 female
AK14PATS5PC4T4T000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK14PATS5PC6T6T000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK14PATS5PC8T8T000 Material: SUS316, Ni-Cr-Mo internals | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/2 compression fitting
AK14PATSH2P44 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: NPT1/4 female
AK14PATSH2P66 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: NPT3/8 female
AK14PATSH2P88 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: NPT1/2 female
AK14PATSH2P4T4T Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: 1/4 compression fitting
AK14PATSH2P6T6T Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: 3/8 compression fitting
AK14PATSH2P8T8T Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 2 ports | Connection: 1/2 compression fitting
AK14PATSH3P440 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: NPT1/4 female
AK14PATSH3P660 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: NPT3/8 female
AK14PATSH3P880 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: NPT1/2 female
AK14PATSH3P4T4T0 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: 1/4 compression fitting
AK14PATSH3P6T6T0 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: 3/8 compression fitting
AK14PATSH3P8T8T0 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 3 ports (OUT gauge) | Connection: 1/2 compression fitting
AK14PATSH4PL4400 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/4 female
AK14PATSH4PL6600 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT3/8 female
AK14PATSH4PL8800 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: NPT1/2 female
AK14PATSH4PL4T4T00 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/4 compression fitting
AK14PATSH4PL6T6T00 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 3/8 compression fitting
AK14PATSH4PL8T8T00 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 4 ports (OUT extra + OUT gauge) | Connection: 1/2 compression fitting
AK14PATSH5PC44000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/4 female
AK14PATSH5PC66000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT3/8 female
AK14PATSH5PC88000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: NPT1/2 female
AK14PATSH5PC4T4T000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/4 compression fitting
AK14PATSH5PC6T6T000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 3/8 compression fitting
AK14PATSH5PC8T8T000 Material: SUS316, Ni-Cr-Mo internals/nozzle | Ports: 5 ports (extra, IN, OUT gauge) | Connection: 1/2 compression fitting
RegulatorsSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AK14PAT Air-Operated General Gas Regulator (Medium Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (60)

AK14PATB4PL4400, AK14PATB4PL6600, AK14PATB4PL8800, AK14PATB4PL4T4T00, AK14PATB4PL6T6T00, AK14PATB4PL8T8T00, AK14PATB5PC44000, AK14PATB5PC66000, AK14PATB5PC88000, AK14PATB5PC4T4T000 + 50 more — see full table ↓
