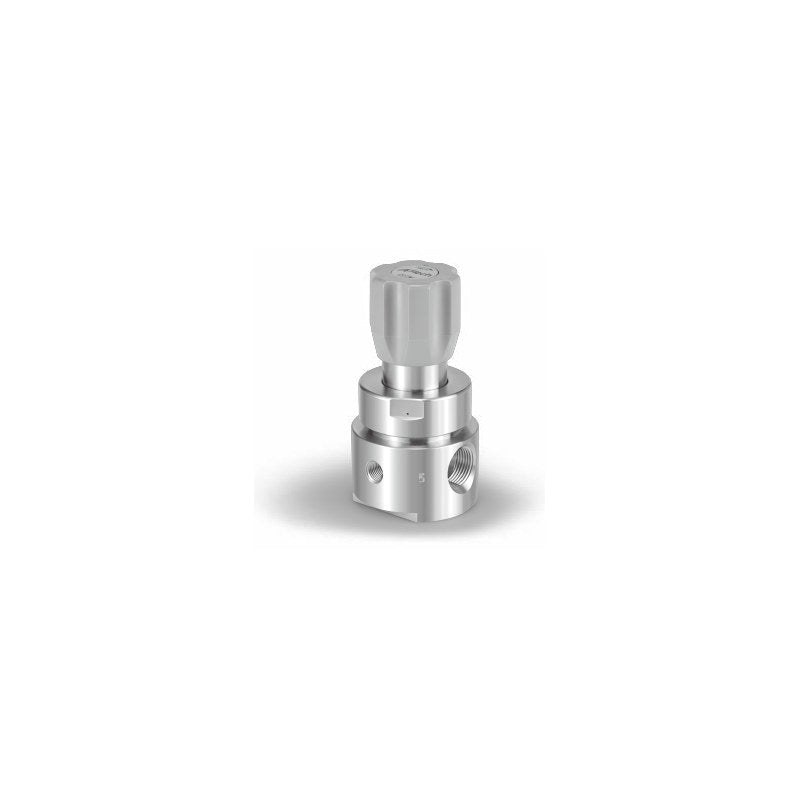

SMC AK9200 General Gas Regulator (Bulk Flow, NPT3/4)

SMC AK9200 General Gas Regulator (Bulk Flow, NPT3/4)

SMC AK9200 series single-stage SUS316 general gas regulator with NPT3/4 ports for very high flow (below 2000 slpm), inlet up to 2.1 MPa.

Key features

  • SUS316 body, nozzle and poppet, Ni-Cr-Mo diaphragm, PFA seat
  • Flow below 2000 slpm; inlet up to 304 psig (2.1 MPa); NPT3/4 ports
  • Set pressure 0.007-0.2 to 0.034-1.0 MPa
  • 4PL body with two outlet gauge ports
  • Listed codes: gauge ports "0" (NPT1/4 port, no gauge); gauges (V3 to 40), plug C, MPA scale, VS/PK/TF seat and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
External leakage 1x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Port connection NPT female thread or compression fitting
Pressure characteristic 0.048 MPa rise per 0.7 MPa inlet drop
Internal volume 36 cm3
Material SUS316, Ni-Cr-Mo diaphragm
Ports 4 ports (OUT extra + OUT gauge)
Connection NPT3/4 female
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 720-721
AK9202S4PL121200 Set pressure: 0.007 to 0.2 MPa
AK9206S4PL121200 Set pressure: 0.014 to 0.4 MPa
AK9210S4PL121200 Set pressure: 0.014 to 0.7 MPa
AK9215S4PL121200 Set pressure: 0.034 to 1.0 MPa
RegulatorsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AK9200 General Gas Regulator (Bulk Flow, NPT3/4)

Brand SMC·Regulators

Available part numbers (4)

AK9202S4PL121200, AK9206S4PL121200, AK9210S4PL121200, AK9215S4PL121200

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AK9202S4PL121200Set pressure: 0.007 to 0.2 MPa
AK9206S4PL121200Set pressure: 0.014 to 0.4 MPa
AK9210S4PL121200Set pressure: 0.014 to 0.7 MPa
AK9215S4PL121200Set pressure: 0.034 to 1.0 MPa
