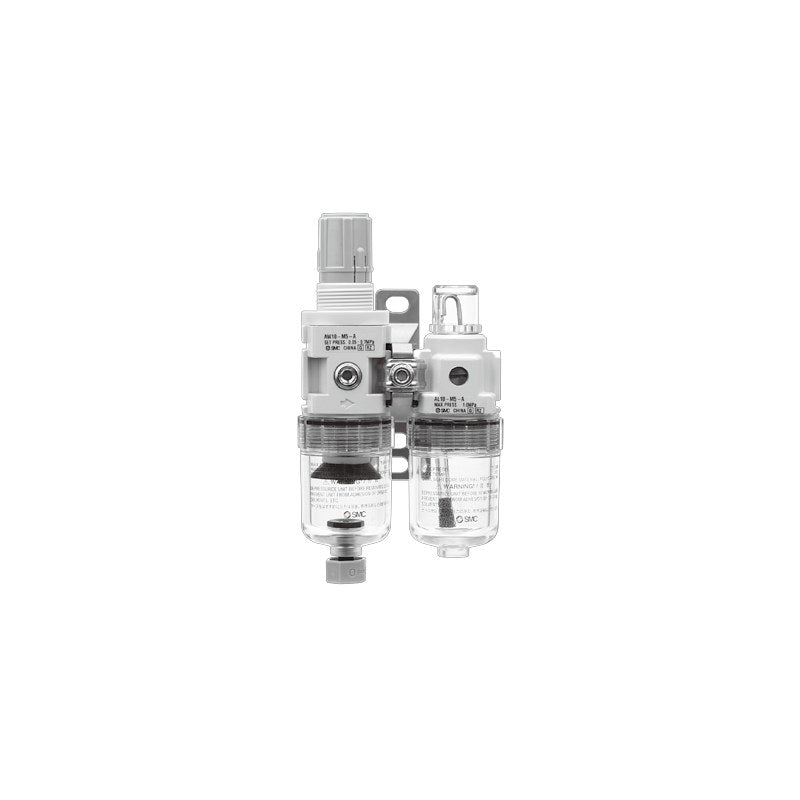

SMC AL10-A Modular Lubricator (Size 10, M5)

SMC AL10-A Modular Lubricator (Size 10, M5)

SMC AL10-A miniature modular lubricator with M5 x 0.8 ports and 7 cm³ oil capacity, for modular connection with AF10-A, AR10-A and AW10-A.

Key features

  • Smallest modular lubricator body size (10), minimum dripping flow 4 L/min (ANR)
  • Recommended lubricant class 1 turbine oil (ISO VG32)
  • Polycarbonate case standard; metal (2) or nylon (6) case as semi-standard
  • Lubricator drain cock (3) semi-standard; right-to-left flow (R) and psi units (Z) on order

Specifications

Fluid Air
Port size M5 x 0.8
Ambient and fluid temperature -5 to 60°C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. dripping flow 4 L/min (ANR)
Oil capacity 7 cm³
Recommended lubricant Class 1 turbine oil (ISO VG32)
Mass 0.07 kg
Source SMC Korea catalog AC10-A series (SMCKR_AC-A.pdf), p. 17-18
AL10-M5-A Case: Polycarbonate | Oil drain: None
AL10-M5-3-A Case: Polycarbonate | Oil drain: Drain cock (3)
AL10-M5-2-A Case: Metal | Oil drain: None
AL10-M5-23-A Case: Metal | Oil drain: Drain cock (3)
AL10-M5-6-A Case: Nylon | Oil drain: None
AL10-M5-36-A Case: Nylon | Oil drain: Drain cock (3)
LubricatorsSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AL10-A Modular Lubricator (Size 10, M5)

Brand SMC·Lubricators

Available part numbers (6)

AL10-M5-A, AL10-M5-3-A, AL10-M5-2-A, AL10-M5-23-A, AL10-M5-6-A, AL10-M5-36-A
