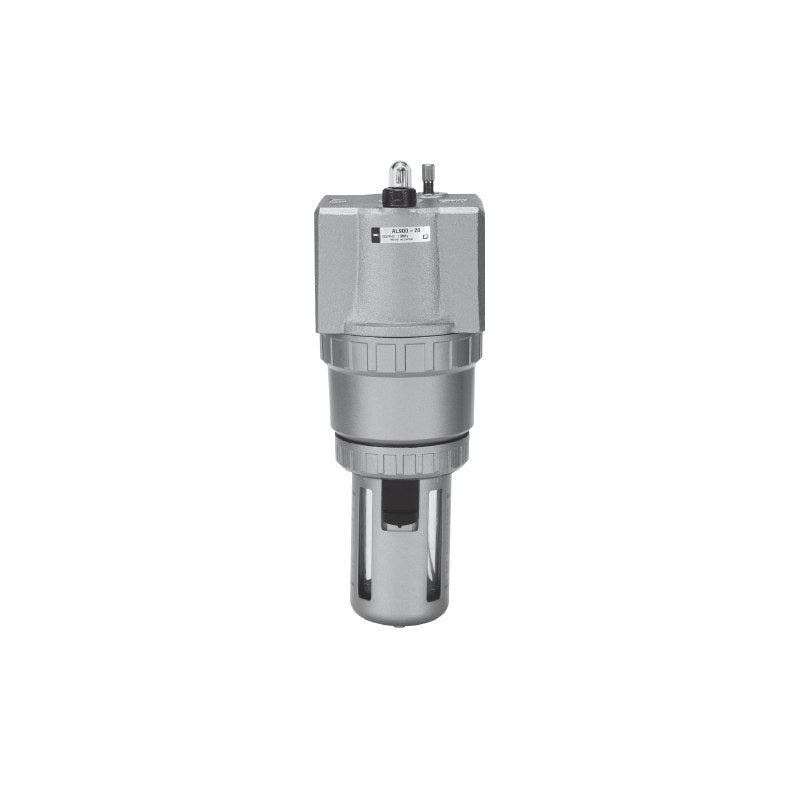

SMC AL800/AL900 Large Flow Lubricator (Rc1 1/4 to Rc2)

SMC AL800/AL900 Large Flow Lubricator (Rc1 1/4 to Rc2)

SMC AL800 and AL900 series large-capacity drip lubricators for individual lubrication of high-flow air lines with 1 1/4, 1 1/2 and 2 inch ports.

Key features

  • Large flow type for main air lines: minimum drip flow 460 to 1800 L/min (ANR)
  • Oil reservoir 380 cm³ (350 cm³ between levels), polycarbonate bowl with bowl guard as standard
  • Semi-standard suffixes (not listed): -1 1000 cm³ tank, -1S-1/-1S-2 tank with float switch, -2 metal bowl, -3 drain cock, -6 nylon bowl, -8 metal bowl with level gauge, -R right-to-left flow
  • Aluminum die-cast / cast body and housing with silver paint
  • Thread Rc standard; NPT (N) and G (F) available on order

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Oil reservoir 380 cm³ (350 cm³ between levels)
Recommended oil Class 1 turbine oil (no additive) ISO VG32
Ambient and fluid temperature -5 to 60°C (no freezing)
Bowl material Polycarbonate (with bowl guard)
Min. drip flow condition Inlet 0.5 MPa, 5 drops/min, 20°C, needle fully open
Source SMC Korea catalog AL800/900 (SMCKR_AL800_900.pdf), p. 1311-1313 (PDF p. 3-5)
AL800-12 Model: AL800 | Port: Rc1 1/4 | Min drip flow: 460 L/min (ANR) | Mass: 1.56 kg
AL800-14 Model: AL800 | Port: Rc1 1/2 | Min drip flow: 650 L/min (ANR) | Mass: 1.56 kg
AL900-20 Model: AL900 | Port: Rc2 | Min drip flow: 1800 L/min (ANR) | Mass: 1.78 kg
LubricatorsSMC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AL800/AL900 Large Flow Lubricator (Rc1 1/4 to Rc2)

Brand SMC·Lubricators

Available part numbers (3)

AL800-12, AL800-14, AL900-20

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL800-12Model: AL800 | Port: Rc1 1/4 | Min drip flow: 460 L/min (ANR) | Mass: 1.56 kg
AL800-14Model: AL800 | Port: Rc1 1/2 | Min drip flow: 650 L/min (ANR) | Mass: 1.56 kg
AL900-20Model: AL900 | Port: Rc2 | Min drip flow: 1800 L/min (ANR) | Mass: 1.78 kg
