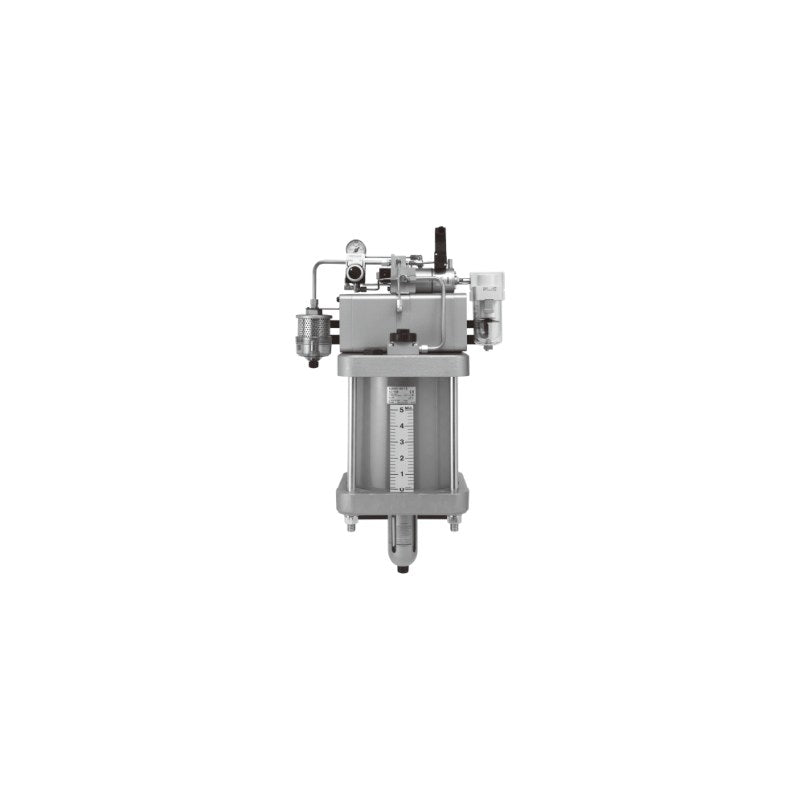

SMC ALB900 Booster Lubricator (Micro Mist, 2 inch Class)

SMC ALB900 booster lubricator that uses a built-in booster to create the mist-generating pressure differential, supplying stable micro mist to a main air line with very little line pressure drop.

Key features

Booster supplies higher pressure than the main line; the difference generates micro mist, so main-line pressure drop is small
Continuous micro mist set only by adjusting the mist-generating differential pressure (0.05 to 0.2 MPa)
Refill through the fill plug without stopping the air line; mist generation visible at the fill port
Bypass lubrication adapter ALBA90-10/-20/-30 (Rc1, Rc2, 3 inch flange) and ball valves Rc1/4, Rc1/2 included as standard accessories
Operation control by air pilot or solenoid (AC100V/200V/220V, DC24V); float switch S1/S2 ordered as suffix
CE/UKCA

Specifications

Fluid	Air
Body connection	IN Rc1/4, OUT Rc1/2
Proof pressure	1.5 MPa
Operating pressure range	0.4 to 1.0 MPa
Differential pressure range	0.05 to 0.2 MPa
Oil storage between levels	5000 cm³
Recommended oil	Class 1 turbine oil (no additive) ISO VG32
Ambient and fluid temperature	5 to 50°C
Bowl material	Glass-fiber reinforced epoxy, polycarbonate
Mass	28 kg
Float switch (option)	IS440-1 (ON at no oil) / IS440-2 (OFF at no oil)
Source	SMC Korea catalog ALB900 (SMCKR_ALB900.pdf), p. 1324 (PDF p. 1)

ALB900-00-00		Bypass adapter: None \| Control method: Air pilot \| Control signal: Air pilot
ALB900-00-11		Bypass adapter: None \| Control method: Solenoid \| Control signal: AC100V
ALB900-00-12		Bypass adapter: None \| Control method: Solenoid \| Control signal: AC200V
ALB900-00-14		Bypass adapter: None \| Control method: Solenoid \| Control signal: AC220V
ALB900-00-15		Bypass adapter: None \| Control method: Solenoid \| Control signal: DC24V
ALB900-10-00		Bypass adapter: Rc1 \| Control method: Air pilot \| Control signal: Air pilot
ALB900-10-11		Bypass adapter: Rc1 \| Control method: Solenoid \| Control signal: AC100V
ALB900-10-12		Bypass adapter: Rc1 \| Control method: Solenoid \| Control signal: AC200V
ALB900-10-14		Bypass adapter: Rc1 \| Control method: Solenoid \| Control signal: AC220V
ALB900-10-15		Bypass adapter: Rc1 \| Control method: Solenoid \| Control signal: DC24V
ALB900-20-00		Bypass adapter: Rc2 \| Control method: Air pilot \| Control signal: Air pilot
ALB900-20-11		Bypass adapter: Rc2 \| Control method: Solenoid \| Control signal: AC100V
ALB900-20-12		Bypass adapter: Rc2 \| Control method: Solenoid \| Control signal: AC200V
ALB900-20-14		Bypass adapter: Rc2 \| Control method: Solenoid \| Control signal: AC220V
ALB900-20-15		Bypass adapter: Rc2 \| Control method: Solenoid \| Control signal: DC24V
ALB900-30-00		Bypass adapter: 3 inch flange \| Control method: Air pilot \| Control signal: Air pilot
ALB900-30-11		Bypass adapter: 3 inch flange \| Control method: Solenoid \| Control signal: AC100V
ALB900-30-12		Bypass adapter: 3 inch flange \| Control method: Solenoid \| Control signal: AC200V
ALB900-30-14		Bypass adapter: 3 inch flange \| Control method: Solenoid \| Control signal: AC220V
ALB900-30-15		Bypass adapter: 3 inch flange \| Control method: Solenoid \| Control signal: DC24V

LubricatorsSMC

20 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ALB900 Booster Lubricator (Micro Mist, 2 inch Class)

Brand SMC·Lubricators

Available part numbers (20)

ALB900-00-00, ALB900-00-11, ALB900-00-12, ALB900-00-14, ALB900-00-15, ALB900-10-00, ALB900-10-11, ALB900-10-12, ALB900-10-14, ALB900-10-15 + 10 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
