SMC ALD600/ALD900 D.P. Lubricator (Differential Pressure Type)

SMC ALD600/ALD900 D.P. Lubricator (Differential Pressure Type)

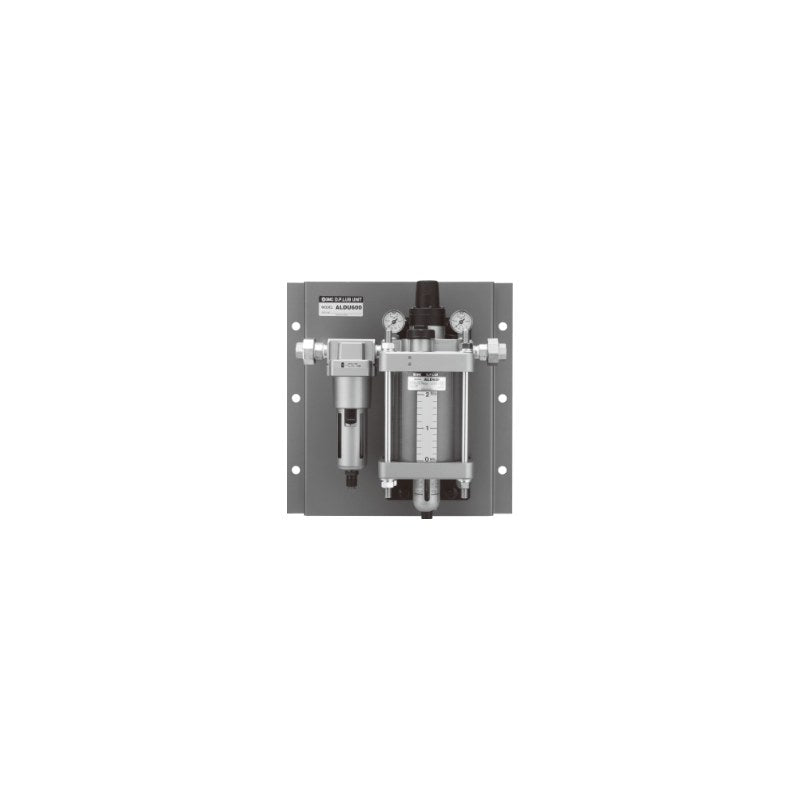

SMC ALD series differential pressure (D.P.) lubricator for centralized micro-mist lubrication of multiple points, available alone (ALD) or as a panel-mounted unit with inlet filter (ALDU).

Key features

  • Centralized control of multi-point lubrication with low oil consumption
  • Oil feed rate set simply by adjusting the differential pressure (0.03 to 0.1 MPa, 0.05 MPa recommended)
  • Refill by opening the fill plug without stopping the air line; micro-mist generation visible at the fill port
  • ALDU unit includes an inlet-side filter on a panel; brackets (B), panel (P) and float switches (S1/S2) ordered as suffixes
  • Thread Rc standard; NPT (N) available. CE/UKCA (ALD900)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Operating pressure range ALD 0.1 to 1.0 MPa, ALDU 0.15 to 1.0 MPa
Differential pressure range 0.03 to 0.1 MPa (recommended 0.05 MPa)
Min. flow for D.P. setting 102 L/min (ANR)
Oil storage between levels Size 600 2000 cm³, size 900 5000 cm³
Recommended oil Class 1 turbine oil (no additive) ISO VG32
Ambient and fluid temperature 5 to 60°C
Bowl material Glass-fiber reinforced epoxy, polycarbonate
Mass ALD600 8.9, ALD900 21.3, ALDU600 11.1 (18.6 w/ panel), ALDU900 31.6 (48.1) kg
Float switch S1 ON / S2 OFF at no oil; AC/DC 200 V, 50 VA/50 W
Source SMC Korea catalog ALD600/900 (SMCKR_ALD600_900.pdf), p. 1319 (PDF p. 1)
ALD600-06 Product: D.P. lubricator | Body size: 600 (1B) | Port: Rc3/4
ALD600-10 Product: D.P. lubricator | Body size: 600 (1B) | Port: Rc1
ALD900-12 Product: D.P. lubricator | Body size: 900 (2B) | Port: Rc1 1/4
ALD900-14 Product: D.P. lubricator | Body size: 900 (2B) | Port: Rc1 1/2
ALD900-20 Product: D.P. lubricator | Body size: 900 (2B) | Port: Rc2
ALDU600-06 Product: D.P. lubricator unit | Body size: 600 (1B) | Port: Rc3/4
ALDU600-10 Product: D.P. lubricator unit | Body size: 600 (1B) | Port: Rc1
ALDU900-12 Product: D.P. lubricator unit | Body size: 900 (2B) | Port: Rc1 1/4
ALDU900-14 Product: D.P. lubricator unit | Body size: 900 (2B) | Port: Rc1 1/2
ALDU900-20 Product: D.P. lubricator unit | Body size: 900 (2B) | Port: Rc2
LubricatorsSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ALD600/ALD900 D.P. Lubricator (Differential Pressure Type)

Brand SMC·Lubricators

Available part numbers (10)

ALD600-06, ALD600-10, ALD900-12, ALD900-14, ALD900-20, ALDU600-06, ALDU600-10, ALDU900-12, ALDU900-14, ALDU900-20

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
