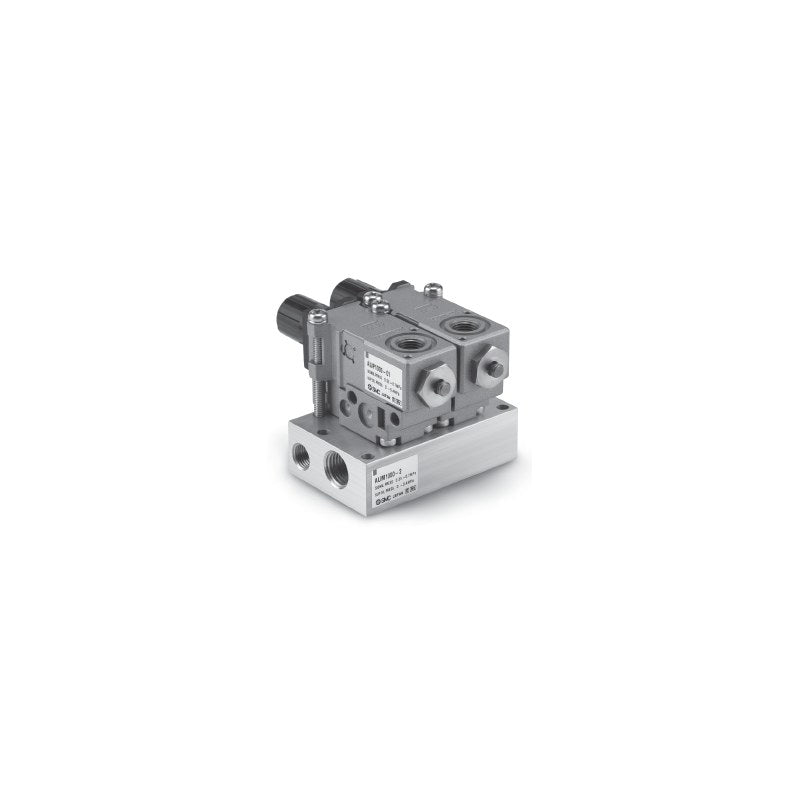

SMC ALIP1000/1100 Impulse Lubricator (with ALIM Manifold, ALT Tank)

SMC ALIP1000/1100 Impulse Lubricator (with ALIM Manifold, ALT Tank)

SMC ALIP series impulse lubricator that discharges a fixed small quantity of oil per pilot air signal directly at the lubrication point, available as single units, ALIM manifolds of 2 to 10 stations and with ALT10/ALT20 oil tanks.

Key features

  • Pilot-air driven piston pump: 0 to 0.04 cm³ per shot (adjustable 0.003 to 0.04 cm³, factory set 0.02 cm³) with visual indicator
  • ALIP1000 for non-pressurized or pressurized tanks (0 to 0.4 MPa oil); ALIP1100 for pressurized supply (0.15 to 0.4 MPa)
  • For intermittent precise lubrication of gears, slides and pneumatic cylinders
  • ALIM manifold mounts 2 to 10 ALIP units (odd station counts use a blanking plate)
  • Optional ALT10 (160 cm³) and ALT20 (1000 cm³) oil tanks, with float switch S1/S2 (AC/DC 200 V, AC50VA/DC50W)

Specifications

Port size Rc1/8 (6A)
Proof pressure 1.0 MPa
Signal pressure range 0.25 to 0.7 MPa
Oil pressure range ALIP1000 0 to 0.4 MPa, ALIP1100 0.15 to 0.4 MPa
Oil viscosity 2 to 460 cSt (40°C)
Ambient and fluid temperature 5 to 50°C
Discharge per shot 0 to 0.04 cm³
Mass (ALIP) 0.22 kg
Mounting orientation ALIP1000 OIL OUT side up, ALIP1100 unrestricted
Source SMC Korea catalog ALIP1000/1100 (SMCKR_ALIP_ALT.pdf), p. 1335-1339 (PDF p. 1-5)
ALIP1000-01 Item: Impulse lubricator | Type: ALIP1000 | Oil supply: Non-pressurized or pressurized | Stations or tank: Single, Rc1/8
ALIP1100-01 Item: Impulse lubricator | Type: ALIP1100 | Oil supply: Pressurized | Stations or tank: Single, Rc1/8
ALIM1000-2 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 2 stations
ALIM1000-3 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 3 stations
ALIM1000-4 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 4 stations
ALIM1000-5 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 5 stations
ALIM1000-6 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 6 stations
ALIM1000-7 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 7 stations
ALIM1000-8 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 8 stations
ALIM1000-9 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 9 stations
ALIM1000-10 Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 10 stations
ALIM1100-2 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 2 stations
ALIM1100-3 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 3 stations
ALIM1100-4 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 4 stations
ALIM1100-5 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 5 stations
ALIM1100-6 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 6 stations
ALIM1100-7 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 7 stations
ALIM1100-8 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 8 stations
ALIM1100-9 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 9 stations
ALIM1100-10 Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 10 stations
ALT10 Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³
ALT10-S1 Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³, float switch ON at low
ALT10-S2 Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³, float switch OFF at low
ALT20 Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³
ALT20-S1 Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³, float switch ON at low
ALT20-S2 Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³, float switch OFF at low
LubricatorsSMC
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ALIP1000/1100 Impulse Lubricator (with ALIM Manifold, ALT Tank)

Brand SMC·Lubricators

Available part numbers (26)

ALIP1000-01, ALIP1100-01, ALIM1000-2, ALIM1000-3, ALIM1000-4, ALIM1000-5, ALIM1000-6, ALIM1000-7, ALIM1000-8, ALIM1000-9 + 16 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALIP1000-01Item: Impulse lubricator | Type: ALIP1000 | Oil supply: Non-pressurized or pressurized | Stations or tank: Single, Rc1/8
ALIP1100-01Item: Impulse lubricator | Type: ALIP1100 | Oil supply: Pressurized | Stations or tank: Single, Rc1/8
ALIM1000-2Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 2 stations
ALIM1000-3Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 3 stations
ALIM1000-4Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 4 stations
ALIM1000-5Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 5 stations
ALIM1000-6Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 6 stations
ALIM1000-7Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 7 stations
ALIM1000-8Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 8 stations
ALIM1000-9Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 9 stations
ALIM1000-10Item: Impulse lubricator manifold | Type: ALIP1000-01 mounted | Oil supply: Non-pressurized or pressurized | Stations or tank: 10 stations
ALIM1100-2Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 2 stations
ALIM1100-3Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 3 stations
ALIM1100-4Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 4 stations
ALIM1100-5Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 5 stations
ALIM1100-6Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 6 stations
ALIM1100-7Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 7 stations
ALIM1100-8Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 8 stations
ALIM1100-9Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 9 stations
ALIM1100-10Item: Impulse lubricator manifold | Type: ALIP1100-01 mounted | Oil supply: Pressurized | Stations or tank: 10 stations
ALT10Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³
ALT10-S1Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³, float switch ON at low
ALT10-S2Item: Oil tank (option) | Type: ALT10 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 160 cm³, float switch OFF at low
ALT20Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³
ALT20-S1Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³, float switch ON at low
ALT20-S2Item: Oil tank (option) | Type: ALT20 | Oil supply: Tank 0 to 0.4 MPa | Stations or tank: 1000 cm³, float switch OFF at low
