SMC AM/AMD 70D-90D Large Flow Mist Separators (1 to 2 in)

SMC AM/AMD 70D-90D Large Flow Mist Separators (1 to 2 in)

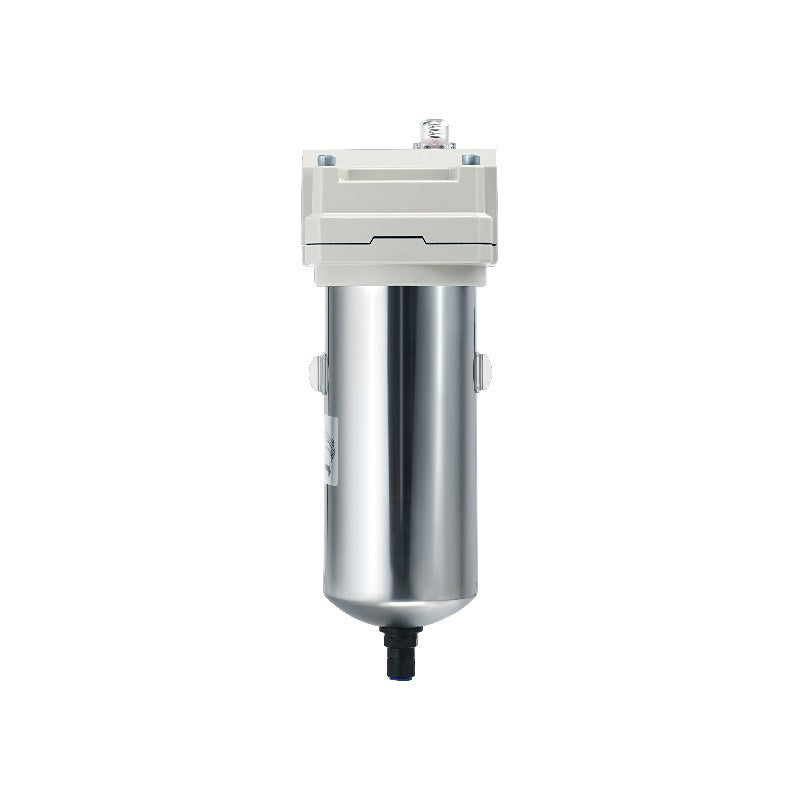

SMC AM/AMD 70D to 90D series large-flow main line mist separators and micro mist separators for 7.0 to 14.5 m3/min (ANR) with 1 to 2 inch ports.

Key features

  • AM: 0.1 um filtration (99%), outlet oil mist max. 1 mg/m3, ISO8573-1:2010 class [2:7:3]
  • AMD: 0.01 um filtration (99.9%), outlet oil mist max. 0.1 mg/m3, class [1:7:2]; pressure drop reduced by up to 60%
  • Pressure drop 5 kPa or less; up to 20% more flow and up to 52% lighter than previous AM650/850 models
  • Thin-wall stainless steel case with drop-prevention stopper, bolts removable from the front
  • Standard N.O. float auto drain (1.0 MPa); H = 1.6 MPa auto drain, J = drain guide; bracket (B) as accessory

Specifications

Fluid Compressed air
Operating pressure range 0.1 to 1.0 MPa (H/J: up to 1.6 MPa)
Proof pressure 1.5 MPa
Ambient and fluid temperature -5 to 60 C (no freezing)
Body / flange material Aluminum die-cast
Case material Stainless steel
Mass 3.4 / 4.7 / 5.0 kg (70D / 80D / 90D)
Element replacement 2 years or when clogging checker operates
Port thread Rc standard; G (F) and NPT (N) available
Source SMC Korea catalog CAT.KS30-17C (SMCKR_AFF_AM_AMD.pdf), p. 1-7 (PDF p. 2-8)
AM70D-10 Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AM70D-10-H Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AM70D-10-J Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AM70D-14 Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AM70D-14-H Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AM70D-14-J Filter type: AM mist separator (0.1 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AM80D-14 Filter type: AM mist separator (0.1 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 11.0 m3/min (ANR)
AM80D-14-H Filter type: AM mist separator (0.1 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AM80D-14-J Filter type: AM mist separator (0.1 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AM90D-14 Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AM90D-14-H Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AM90D-14-J Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AM90D-20 Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AM90D-20-H Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AM90D-20-J Filter type: AM mist separator (0.1 um) | Body size: 90D | Port size: Rc2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD70D-10 Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD70D-10-H Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD70D-10-J Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD70D-14 Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD70D-14-H Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD70D-14-J Filter type: AMD micro mist separator (0.01 um) | Body size: 70D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 7.0 m3/min (ANR)
AMD80D-14 Filter type: AMD micro mist separator (0.01 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 11.0 m3/min (ANR)
AMD80D-14-H Filter type: AMD micro mist separator (0.01 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AMD80D-14-J Filter type: AMD micro mist separator (0.01 um) | Body size: 80D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 11.0 m3/min (ANR)
AMD90D-14 Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD90D-14-H Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD90D-14-J Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc1 1/2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD90D-20 Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.0 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD90D-20-H Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc2 | Drain: Auto drain N.O. (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
AMD90D-20-J Filter type: AMD micro mist separator (0.01 um) | Body size: 90D | Port size: Rc2 | Drain: Drain guide (1.6 MPa) | Max. flow: 14.5 m3/min (ANR)
