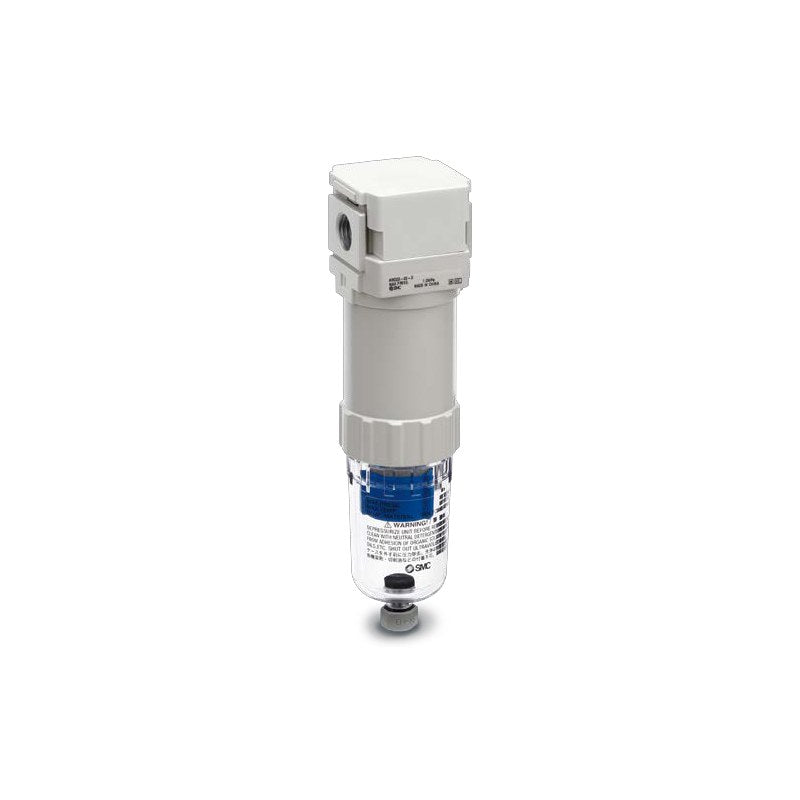

SMC AM/AMD/AMH-D Modular Mist Separators (Size 20 to 60)

SMC AM/AMD/AMH-D Modular Mist Separators (Size 20 to 60)

SMC AM/AMD/AMH series modular compressed air cleaning filters (-D generation): mist separator, micro mist separator and micro mist separator with prefilter, sizes 20 to 60 for 300 to 3700 L/min (ANR).

Key features

  • AM mist separator: 0.1 um filtration (99% capture), outlet oil mist max. 1 mg/m3, ISO8573-1:2010 class [2:7:3]
  • AMD micro mist separator: 0.01 um filtration (99.9%), outlet oil mist max. 0.1 mg/m3, class [1:7:2]
  • AMH micro mist separator with built-in prefilter (sizes 30/40): 0.01 um (99.99%), replaces an AM + AMD pair in one unit
  • Modular connection with AF/AR/AW-D units via spacers; up to 50% lighter and 30% shorter face-to-face than previous models
  • Element color-coded end caps (AM light blue, AMD blue, AMH white); clogging checker (L) and clogging switch (M/MM) available
  • Semi-standard: metal/nylon case, case guard, drain guide/barb fitting, reverse flow (R), psi/F unit (Z); bracket (B) packed separately

Specifications

Fluid Compressed air
Ambient and fluid temperature -5 to 60 C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Auto drain min. operating pressure N.C. 0.1 MPa (size 20) / 0.15 MPa; N.O. 0.1 MPa
Case material Polycarbonate (sizes 20-40), stainless steel (sizes 50/60)
Mass 0.19 / 0.39 / 0.79 / 1.23 / 1.46 kg (size 20/30/40/50/60)
Drain capacity 8 / 25 / 45 / 100 cm3 (size 20 / 30 / 40 / 50-60)
Port thread Rc standard; NPT (N) and G (F) available
Source SMC Korea catalog CAT.KS30-22E (SMCKR_AFF_AM_AMD_AMK.pdf), p. 5, 8, 11-16 (PDF p. 6, 9, 12-17)
AM20-01-D Filter type: AM mist separator (0.1 um) | Body size: 20 | Port size: Rc1/8 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AM20-01C-D Filter type: AM mist separator (0.1 um) | Body size: 20 | Port size: Rc1/8 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AM20-02-D Filter type: AM mist separator (0.1 um) | Body size: 20 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AM20-02C-D Filter type: AM mist separator (0.1 um) | Body size: 20 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AM30-02-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AM30-02C-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AM30-02D-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AM30-03-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AM30-03C-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AM30-03D-D Filter type: AM mist separator (0.1 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AM40-02-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AM40-02C-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AM40-02D-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AM40-03-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AM40-03C-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AM40-03D-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AM40-04-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AM40-04C-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AM40-04D-D Filter type: AM mist separator (0.1 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AM50-06-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AM50-06C-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AM50-06D-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AM50-10-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AM50-10C-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AM50-10D-D Filter type: AM mist separator (0.1 um) | Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AM60-10-D Filter type: AM mist separator (0.1 um) | Body size: 60 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 3700 L/min (ANR)
AM60-10C-D Filter type: AM mist separator (0.1 um) | Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 3700 L/min (ANR)
AM60-10D-D Filter type: AM mist separator (0.1 um) | Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 3700 L/min (ANR)
AMD20-01-D Filter type: AMD micro mist separator (0.01 um) | Body size: 20 | Port size: Rc1/8 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AMD20-01C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 20 | Port size: Rc1/8 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AMD20-02-D Filter type: AMD micro mist separator (0.01 um) | Body size: 20 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 300 L/min (ANR)
AMD20-02C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 20 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 300 L/min (ANR)
AMD30-02-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AMD30-02C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AMD30-02D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AMD30-03-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AMD30-03C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AMD30-03D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AMD40-02-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMD40-02C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMD40-02D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AMD40-03-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMD40-03C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMD40-03D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AMD40-04-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMD40-04C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMD40-04D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AMD50-06-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AMD50-06C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AMD50-06D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc3/4 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AMD50-10-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 2200 L/min (ANR)
AMD50-10C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 2200 L/min (ANR)
AMD50-10D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 50 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 2200 L/min (ANR)
AMD60-10-D Filter type: AMD micro mist separator (0.01 um) | Body size: 60 | Port size: Rc1 | Auto drain: None (drain cock) | Max. flow: 3700 L/min (ANR)
AMD60-10C-D Filter type: AMD micro mist separator (0.01 um) | Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.C. | Max. flow: 3700 L/min (ANR)
AMD60-10D-D Filter type: AMD micro mist separator (0.01 um) | Body size: 60 | Port size: Rc1 | Auto drain: Float auto drain N.O. | Max. flow: 3700 L/min (ANR)
AMH30-02-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AMH30-02C-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AMH30-02D-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AMH30-03-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 750 L/min (ANR)
AMH30-03C-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 750 L/min (ANR)
AMH30-03D-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 30 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 750 L/min (ANR)
AMH40-02-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMH40-02C-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMH40-02D-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/4 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AMH40-03-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMH40-03C-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMH40-03D-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc3/8 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
AMH40-04-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: None (drain cock) | Max. flow: 1500 L/min (ANR)
AMH40-04C-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.C. | Max. flow: 1500 L/min (ANR)
AMH40-04D-D Filter type: AMH micro mist sep. w/ prefilter (0.01 um) | Body size: 40 | Port size: Rc1/2 | Auto drain: Float auto drain N.O. | Max. flow: 1500 L/min (ANR)
FiltersSMC
71 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AM/AMD/AMH-D Modular Mist Separators (Size 20 to 60)

Brand SMC·Filters

Available part numbers (71)

AM20-01-D, AM20-01C-D, AM20-02-D, AM20-02C-D, AM30-02-D, AM30-02C-D, AM30-02D-D, AM30-03-D, AM30-03C-D, AM30-03D-D + 61 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
