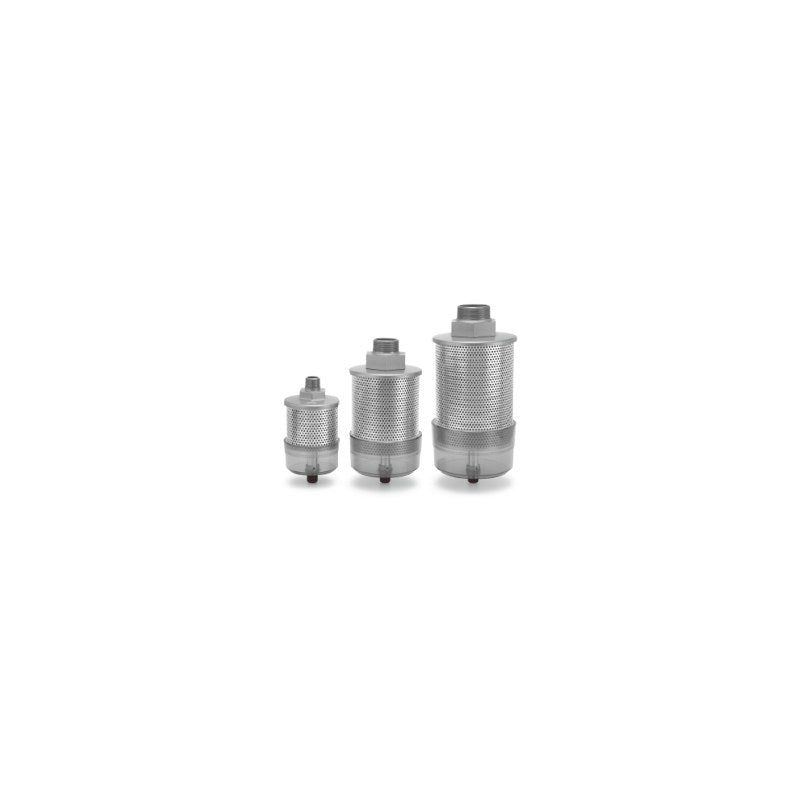

SMC AMC Exhaust Cleaner (Male/Female Thread, 1/4 to 2)

SMC AMC Exhaust Cleaner (Male/Female Thread, 1/4 to 2)

SMC AMC series exhaust cleaner mounted on valve exhaust ports to cut exhaust noise and recover oil mist for a cleaner work area.

Key features

  • Noise reduction of 35 dB(A) or more and oil mist recovery efficiency of 99.9% or more
  • Male thread type AMC310 to AMC910 (3/8 to 2) and female thread type AMC220/320/520 (1/4 to 3/4)
  • Max. flow 200 to 10,000 L/min (ANR); select a model above the peak air consumption of the actuators
  • Recovered oil discharged by drain cock (standard) or drain piping type (D, not for AMC810/910)
  • Replaceable element (AMC-EL series) and oil case assembly (AMC-CA series); no valve function

Specifications

Fluid Compressed air
Inlet pressure 0.1 MPa or less
Ambient and fluid temperature 5 to 60°C (-10 to 60°C if no freezing risk)
Noise reduction 35 dB(A) or more
Oil mist recovery efficiency 99.9% or more
Filtration 0.3 µm (95% capture efficiency)
Port thread R/Rc standard (NPT: N, G: F on order)
Bracket BE20/BE30/BE50/BE60, suffix B (shipped unassembled); none for AMC810/910
Source SMC Korea catalog AMC Series (SMCKR_AMC.pdf), p. 1205-1207 (PDF p. 1-3)
AMC310-03 Model: AMC310 | Connection: Male thread, R3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC310-03D Model: AMC310 | Connection: Male thread, R3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC510-06 Model: AMC510 | Connection: Male thread, R3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC510-06D Model: AMC510 | Connection: Male thread, R3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
AMC610-10 Model: AMC610 | Connection: Male thread, R1 | Max. flow [L/min (ANR)]: 3,000 | Oil drain: Drain cock | Element: AMC-EL6
AMC610-10D Model: AMC610 | Connection: Male thread, R1 | Max. flow [L/min (ANR)]: 3,000 | Oil drain: Drain piping type | Element: AMC-EL6
AMC810-14 Model: AMC810 | Connection: Male thread, R1 1/2 | Max. flow [L/min (ANR)]: 6,000 | Oil drain: Drain cock | Element: AMC-EL8
AMC910-20 Model: AMC910 | Connection: Male thread, R2 | Max. flow [L/min (ANR)]: 10,000 | Oil drain: Drain cock | Element: AMC-EL9
AMC220-02 Model: AMC220 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 200 | Oil drain: Drain cock | Element: AMC-EL2
AMC220-02D Model: AMC220 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 200 | Oil drain: Drain piping type | Element: AMC-EL2
AMC320-02 Model: AMC320 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC320-02D Model: AMC320 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC320-03 Model: AMC320 | Connection: Female thread, Rc3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC320-03D Model: AMC320 | Connection: Female thread, Rc3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC520-04 Model: AMC520 | Connection: Female thread, Rc1/2 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC520-04D Model: AMC520 | Connection: Female thread, Rc1/2 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
AMC520-06 Model: AMC520 | Connection: Female thread, Rc3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC520-06D Model: AMC520 | Connection: Female thread, Rc3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
SilencersSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AMC Exhaust Cleaner (Male/Female Thread, 1/4 to 2)

Brand SMC·Silencers

Available part numbers (18)

AMC310-03, AMC310-03D, AMC510-06, AMC510-06D, AMC610-10, AMC610-10D, AMC810-14, AMC910-20, AMC220-02, AMC220-02D + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMC310-03Model: AMC310 | Connection: Male thread, R3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC310-03DModel: AMC310 | Connection: Male thread, R3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC510-06Model: AMC510 | Connection: Male thread, R3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC510-06DModel: AMC510 | Connection: Male thread, R3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
AMC610-10Model: AMC610 | Connection: Male thread, R1 | Max. flow [L/min (ANR)]: 3,000 | Oil drain: Drain cock | Element: AMC-EL6
AMC610-10DModel: AMC610 | Connection: Male thread, R1 | Max. flow [L/min (ANR)]: 3,000 | Oil drain: Drain piping type | Element: AMC-EL6
AMC810-14Model: AMC810 | Connection: Male thread, R1 1/2 | Max. flow [L/min (ANR)]: 6,000 | Oil drain: Drain cock | Element: AMC-EL8
AMC910-20Model: AMC910 | Connection: Male thread, R2 | Max. flow [L/min (ANR)]: 10,000 | Oil drain: Drain cock | Element: AMC-EL9
AMC220-02Model: AMC220 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 200 | Oil drain: Drain cock | Element: AMC-EL2
AMC220-02DModel: AMC220 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 200 | Oil drain: Drain piping type | Element: AMC-EL2
AMC320-02Model: AMC320 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC320-02DModel: AMC320 | Connection: Female thread, Rc1/4 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC320-03Model: AMC320 | Connection: Female thread, Rc3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain cock | Element: AMC-EL3
AMC320-03DModel: AMC320 | Connection: Female thread, Rc3/8 | Max. flow [L/min (ANR)]: 300 | Oil drain: Drain piping type | Element: AMC-EL3
AMC520-04Model: AMC520 | Connection: Female thread, Rc1/2 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC520-04DModel: AMC520 | Connection: Female thread, Rc1/2 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
AMC520-06Model: AMC520 | Connection: Female thread, Rc3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain cock | Element: AMC-EL5
AMC520-06DModel: AMC520 | Connection: Female thread, Rc3/4 | Max. flow [L/min (ANR)]: 1,000 | Oil drain: Drain piping type | Element: AMC-EL5
