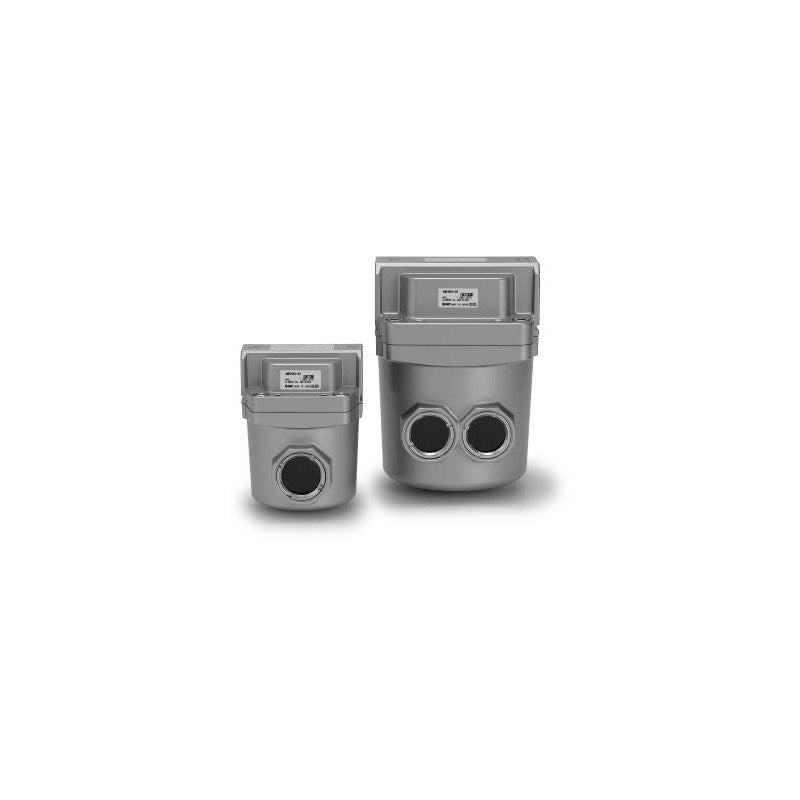

SMC AME Super Mist Separator (AME150C to AME850)

SMC AME series super mist separator that adsorbs aerosol oil to deliver near oil-free air for painting lines, clean rooms and oil-sensitive equipment, 200 to 12000 L/min (ANR).

Key features

Outlet oil mist max. 0.01 mg/m3; outlet cleanliness 100 particles (0.3 um+) per ft3 or less
Element shows replacement timing by color change (red spots appear when oil-saturated)
Must be used with an AM, AMD or AMH series prefilter upstream
AME150C-550C modular-connectable; AME650/850 for large flow; AME850 CE/UKCA compliant
Options (not expanded): F FKM seals, H 1.6 MPa, R reverse flow, V white vaseline; bracket B packed separately

Specifications

Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Proof pressure	1.5 MPa
Ambient and fluid temperature	5 to 60 C
Filtration	0.01 um (99.9% capture)
Outlet oil mist	Max. 0.01 mg/m3 (ANR) (approx. 0.008 ppm)
Mass	0.3 / 0.48 / 0.8 / 1.3 / 2.0 / 4.2 / 10.5 kg (150C to 850)
Port thread	Rc standard; G (F) and NPT (N) available
Element replacement	When red spots appear, 0.1 MPa pressure drop or 2 years
Source	SMC Korea catalog AME Series (SMCKR_AME.pdf), p. 355-357 (PDF p. 1-3)

AME150C-01		Size: AME150C \| Port size: Rc1/8 \| Rated flow: 200 L/min (ANR)
AME150C-02		Size: AME150C \| Port size: Rc1/4 \| Rated flow: 200 L/min (ANR)
AME250C-02		Size: AME250C \| Port size: Rc1/4 \| Rated flow: 500 L/min (ANR)
AME250C-03		Size: AME250C \| Port size: Rc3/8 \| Rated flow: 500 L/min (ANR)
AME350C-03		Size: AME350C \| Port size: Rc3/8 \| Rated flow: 1000 L/min (ANR)
AME350C-04		Size: AME350C \| Port size: Rc1/2 \| Rated flow: 1000 L/min (ANR)
AME450C-04		Size: AME450C \| Port size: Rc1/2 \| Rated flow: 2000 L/min (ANR)
AME450C-06		Size: AME450C \| Port size: Rc3/4 \| Rated flow: 2000 L/min (ANR)
AME550C-06		Size: AME550C \| Port size: Rc3/4 \| Rated flow: 3700 L/min (ANR)
AME550C-10		Size: AME550C \| Port size: Rc1 \| Rated flow: 3700 L/min (ANR)
AME650-10		Size: AME650 \| Port size: Rc1 \| Rated flow: 6000 L/min (ANR)
AME650-14		Size: AME650 \| Port size: Rc1 1/2 \| Rated flow: 6000 L/min (ANR)
AME850-14		Size: AME850 \| Port size: Rc1 1/2 \| Rated flow: 12000 L/min (ANR)
AME850-20		Size: AME850 \| Port size: Rc2 \| Rated flow: 12000 L/min (ANR)

FiltersSMC

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AME Super Mist Separator (AME150C to AME850)

Brand SMC·Filters

Available part numbers (14)

AME150C-01, AME150C-02, AME250C-02, AME250C-03, AME350C-03, AME350C-04, AME450C-04, AME450C-06, AME550C-06, AME550C-10 + 4 more — see full table ↓
