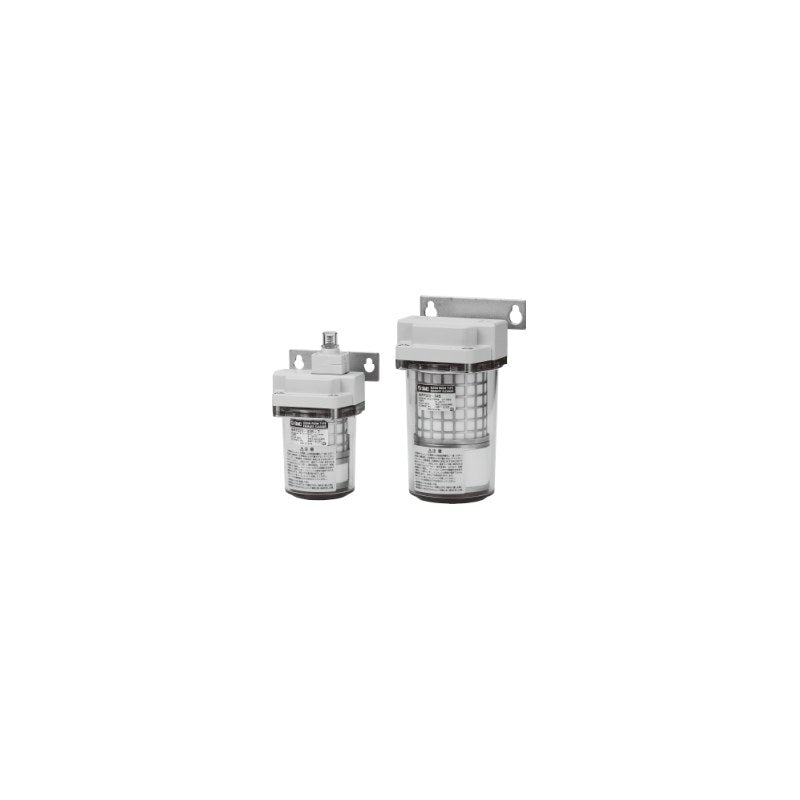

SMC AMP Exhaust Cleaner for Clean Room (Rc1/4 to Rc3/4)

SMC AMP series exhaust cleaner that lets pneumatic equipment exhaust directly into a clean room without exhaust ducting.

Key features

Exhaust air cleanliness equivalent to ISO Class 5 (Fed.Std.209D class 100), 3.5 particles/L or less of 0.3 µm
Two-stage element: the 2nd element catches oil passing after the 1st element saturates
Three sizes AMP220/320/420 for 200, 500 and 1,000 L/min (ANR)
Options: R (flow direction right to down) and T (clog checker; replace element when red spots appear)
Element replacement at 0.1 MPa pressure drop or after one year, whichever comes first

Specifications

Fluid	Compressed air
Inlet pressure	0.1 MPa or less
Ambient and fluid temperature	5 to 50°C
Filtration	0.01 µm (95% capture efficiency)
Outlet cleanliness	100 particles/ft³ or less (0.3 µm and larger)
Element	2-stage element (AMP-EL220/320/420)
Noise reduction	40 dB(A) or more
Bracket	BM67 / BM66 / BM68, suffix B (shipped unassembled)
Source	SMC Korea catalog AMP Series (SMCKR_AMP_CLEAN.pdf), p. 1210-1214 (PDF p. 1-5)

AMP220-02		Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Standard \| Mass: 0.43 kg
AMP220-02-R		Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down \| Mass: 0.43 kg
AMP220-02-T		Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: With clog checker \| Mass: 0.43 kg
AMP220-02-RT		Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down + clog checker \| Mass: 0.43 kg
AMP220-03		Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Standard \| Mass: 0.43 kg
AMP220-03-R		Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down \| Mass: 0.43 kg
AMP220-03-T		Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: With clog checker \| Mass: 0.43 kg
AMP220-03-RT		Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down + clog checker \| Mass: 0.43 kg
AMP320-03		Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Standard \| Mass: 0.68 kg
AMP320-03-R		Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down \| Mass: 0.68 kg
AMP320-03-T		Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: With clog checker \| Mass: 0.68 kg
AMP320-03-RT		Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down + clog checker \| Mass: 0.68 kg
AMP320-04		Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Standard \| Mass: 0.68 kg
AMP320-04-R		Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down \| Mass: 0.68 kg
AMP320-04-T		Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: With clog checker \| Mass: 0.68 kg
AMP320-04-RT		Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down + clog checker \| Mass: 0.68 kg
AMP420-04		Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Standard \| Mass: 1.15 kg
AMP420-04-R		Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down \| Mass: 1.15 kg
AMP420-04-T		Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: With clog checker \| Mass: 1.15 kg
AMP420-04-RT		Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down + clog checker \| Mass: 1.15 kg
AMP420-06		Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Standard \| Mass: 1.15 kg
AMP420-06-R		Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down \| Mass: 1.15 kg
AMP420-06-T		Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: With clog checker \| Mass: 1.15 kg
AMP420-06-RT		Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down + clog checker \| Mass: 1.15 kg

SilencersSMC

24 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AMP Exhaust Cleaner for Clean Room (Rc1/4 to Rc3/4)

Brand SMC·Silencers

Available part numbers (24)

AMP220-02, AMP220-02-R, AMP220-02-T, AMP220-02-RT, AMP220-03, AMP220-03-R, AMP220-03-T, AMP220-03-RT, AMP320-03, AMP320-03-R + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AMP220-02	Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Standard \| Mass: 0.43 kg
	AMP220-02-R	Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down \| Mass: 0.43 kg
	AMP220-02-T	Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: With clog checker \| Mass: 0.43 kg
	AMP220-02-RT	Model: AMP220 \| Port size: Rc1/4 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down + clog checker \| Mass: 0.43 kg
	AMP220-03	Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Standard \| Mass: 0.43 kg
	AMP220-03-R	Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down \| Mass: 0.43 kg
	AMP220-03-T	Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: With clog checker \| Mass: 0.43 kg
	AMP220-03-RT	Model: AMP220 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 200 \| Option: Flow right to down + clog checker \| Mass: 0.43 kg
	AMP320-03	Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Standard \| Mass: 0.68 kg
	AMP320-03-R	Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down \| Mass: 0.68 kg
	AMP320-03-T	Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: With clog checker \| Mass: 0.68 kg
	AMP320-03-RT	Model: AMP320 \| Port size: Rc3/8 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down + clog checker \| Mass: 0.68 kg
	AMP320-04	Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Standard \| Mass: 0.68 kg
	AMP320-04-R	Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down \| Mass: 0.68 kg
	AMP320-04-T	Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: With clog checker \| Mass: 0.68 kg
	AMP320-04-RT	Model: AMP320 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 500 \| Option: Flow right to down + clog checker \| Mass: 0.68 kg
	AMP420-04	Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Standard \| Mass: 1.15 kg
	AMP420-04-R	Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down \| Mass: 1.15 kg
	AMP420-04-T	Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: With clog checker \| Mass: 1.15 kg
	AMP420-04-RT	Model: AMP420 \| Port size: Rc1/2 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down + clog checker \| Mass: 1.15 kg
	AMP420-06	Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Standard \| Mass: 1.15 kg
	AMP420-06-R	Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down \| Mass: 1.15 kg
	AMP420-06-T	Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: With clog checker \| Mass: 1.15 kg
	AMP420-06-RT	Model: AMP420 \| Port size: Rc3/4 \| Max. flow [L/min (ANR)]: 1000 \| Option: Flow right to down + clog checker \| Mass: 1.15 kg
