SMC AN Compact Resin Silencer (Male Thread / One-Touch, AN05-AN40)

SMC AN Compact Resin Silencer (Male Thread / One-Touch, AN05-AN40)

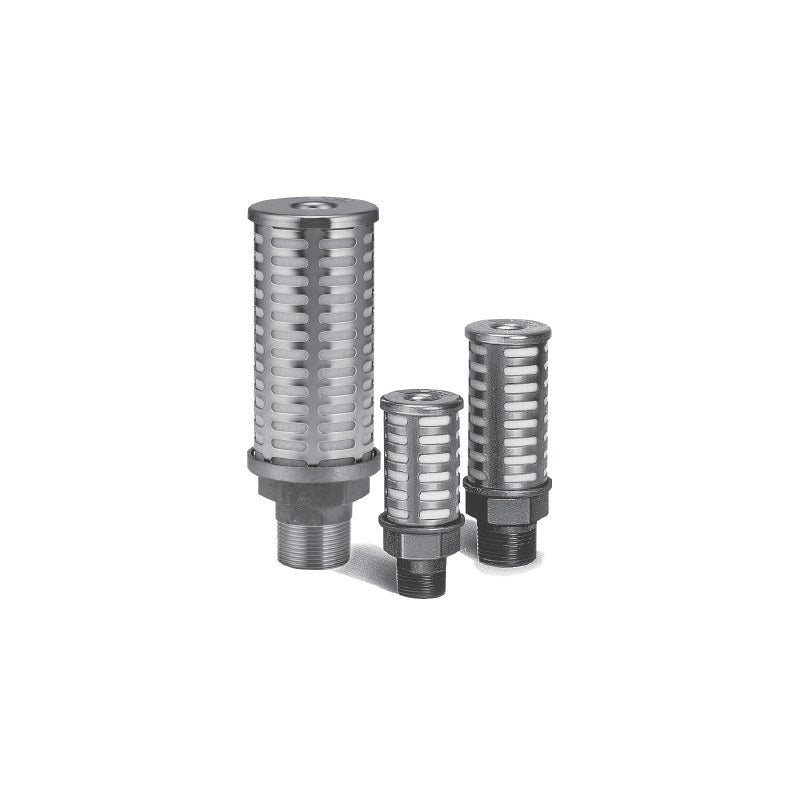

SMC AN compact resin silencers for valve exhaust ports, with male thread (AN05 to AN40) or one-touch fitting connection (AN05-C to AN30-C).

Key features

  • Noise reduction 30 dB(A)
  • Compact, lightweight resin body with sintered resin sound absorbing material
  • Male thread type: M5 and R1/8 to R1/2 (NPT on order)
  • One-touch fitting type plugs directly into fittings for 4 to 12 mm (and 1/4, 3/8 in) tube
  • Select a silencer with effective area larger than the valve

Specifications

Fluid Compressed air
Max. operating pressure 1.0 MPa (valve supply pressure)
Noise reduction 30 dB(A)
Ambient and fluid temperature 5 to 60°C
Material Resin body, sintered resin element
Source SMC Korea catalog (SMCKR_AN.pdf), p. 1195-1196 (PDF p. 1-2)
AN05-M5 Connection: Male thread M5x0.8 | Effective area: 5 mm2 | C value: 1 dm3/(s·bar) | Recommended flow: 0.4 m3/min (ANR) max. | Weight: 0.5 g
AN10-01 Connection: Male thread R1/8 | Effective area: 10 mm2 | C value: 2 dm3/(s·bar) | Recommended flow: 0.8 m3/min (ANR) max. | Weight: 1 g
AN15-02 Connection: Male thread R1/4 | Effective area: 15 mm2 | C value: 3 dm3/(s·bar) | Recommended flow: 1.0 m3/min (ANR) max. | Weight: 2.5 g
AN20-02 Connection: Male thread R1/4 | Effective area: 35 mm2 | C value: 7 dm3/(s·bar) | Recommended flow: 3.0 m3/min (ANR) max. | Weight: 4 g
AN30-03 Connection: Male thread R3/8 | Effective area: 60 mm2 | C value: 12 dm3/(s·bar) | Recommended flow: 5.0 m3/min (ANR) max. | Weight: 5.5 g
AN40-04 Connection: Male thread R1/2 | Effective area: 90 mm2 | C value: 18 dm3/(s·bar) | Recommended flow: 8.0 m3/min (ANR) max. | Weight: 8.5 g
AN05-C04 Connection: One-touch 4 mm | Effective area: 4.2 mm2 | C value: 0.84 dm3/(s·bar) | Recommended flow: 0.35 m3/min (ANR) max. | Weight: 0.5 g
AN10-C06 Connection: One-touch 6 mm | Effective area: 7 mm2 | C value: 1.4 dm3/(s·bar) | Recommended flow: 0.8 m3/min (ANR) max. | Weight: 1 g
AN10-C07 Connection: One-touch 1/4 in | Effective area: 7 mm2 | C value: 1.4 dm3/(s·bar) | Recommended flow: 0.8 m3/min (ANR) max. | Weight: 1 g
AN15-C08 Connection: One-touch 8 mm | Effective area: 20 mm2 | C value: 4 dm3/(s·bar) | Recommended flow: 3.0 m3/min (ANR) max. | Weight: 1.4 g
AN20-C10 Connection: One-touch 10 mm | Effective area: 30 mm2 | C value: 6 dm3/(s·bar) | Recommended flow: 5.0 m3/min (ANR) max. | Weight: 3.5 g
AN20-C11 Connection: One-touch 3/8 in | Effective area: 25 mm2 | C value: 5 dm3/(s·bar) | Recommended flow: 3.0 m3/min (ANR) max. | Weight: 3.5 g
AN30-C12 Connection: One-touch 12 mm | Effective area: 41 mm2 | C value: 8.2 dm3/(s·bar) | Recommended flow: 5.0 m3/min (ANR) max. | Weight: 5 g
