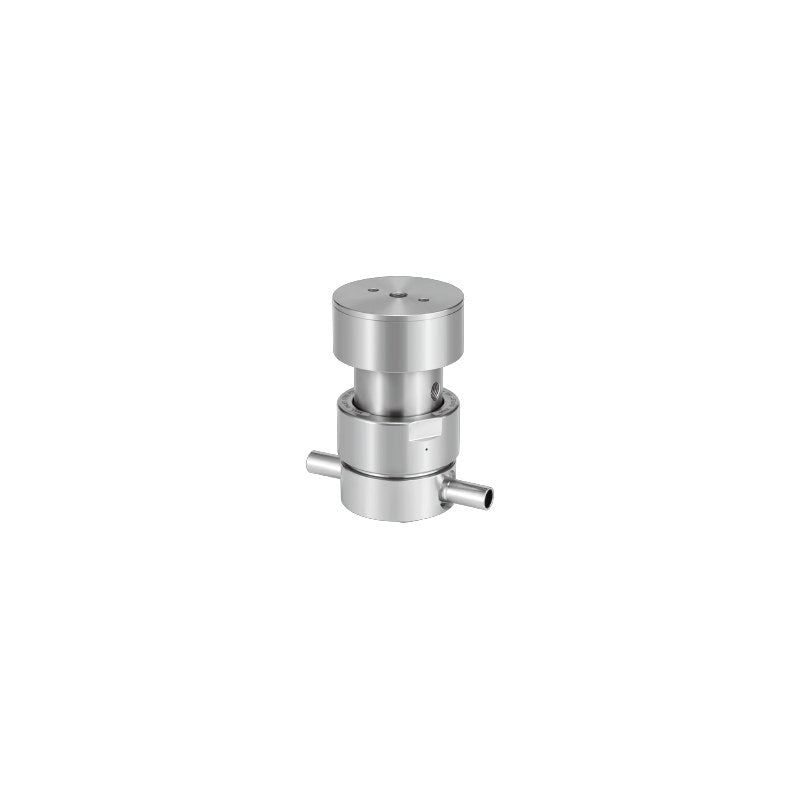

SMC AP12PA Air-Operated High-Purity Regulator (High Flow, Tied Diaphragm)

SMC AP12PA Air-Operated High-Purity Regulator (High Flow, Tied Diaphragm)

SMC AP12PA series air-operated high-purity tied-diaphragm regulator set by pilot air, for high flow (below 800 slpm) process gas lines.

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Inlet up to 1700 psig (11.7 MPa), HR option 20.7 MPa; flow below 800 slpm, HF below 1000 slpm
  • Materials S, SHP and SH (Ni-Cr-Mo)
  • 2, 3 or 4-port bodies with 1/4 to 3/4 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 11.7 MPa (HR 20.7 MPa)
Internal volume 19.6 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 734-735
AP12PAS2PWFV4FV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP12PAS2PWMV4MV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP12PAS2PWTW4TW4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP12PAS2PWFV6FV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP12PAS2PWMV6MV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP12PAS2PWTW6TW6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP12PAS2PWFV8FV8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AP12PAS2PWMV8MV8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AP12PAS2PWTW8TW8 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AP12PAS2PWFV12FV12 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 face seal female
AP12PAS2PWMV12MV12 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 face seal male
AP12PAS2PWTW12TW12 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 tube weld
AP12PAS3PWFV4FV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PAS3PWMV4MV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PAS3PWTW4TW40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PAS3PWFV6FV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PAS3PWMV6MV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PAS3PWTW6TW60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PAS3PWFV8FV80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PAS3PWMV8MV80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PAS3PWTW8TW80 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PAS3PWFV12FV120 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PAS3PWMV12MV120 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PAS3PWTW12TW120 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PAS4PWFV4FV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PAS4PWMV4MV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PAS4PWTW4TW400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PAS4PWFV6FV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PAS4PWMV6MV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PAS4PWTW6TW600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PAS4PWFV8FV800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PAS4PWMV8MV800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PAS4PWTW8TW800 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PAS4PWFV12FV1200 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PAS4PWMV12MV1200 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PAS4PWTW12TW1200 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld
AP12PASHP2PWFV4FV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP12PASHP2PWMV4MV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP12PASHP2PWTW4TW4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP12PASHP2PWFV6FV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP12PASHP2PWMV6MV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP12PASHP2PWTW6TW6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP12PASHP2PWFV8FV8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AP12PASHP2PWMV8MV8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AP12PASHP2PWTW8TW8 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AP12PASHP2PWFV12FV12 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 face seal female
AP12PASHP2PWMV12MV12 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 face seal male
AP12PASHP2PWTW12TW12 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 tube weld
AP12PASHP3PWFV4FV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PASHP3PWMV4MV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PASHP3PWTW4TW40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PASHP3PWFV6FV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PASHP3PWMV6MV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PASHP3PWTW6TW60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PASHP3PWFV8FV80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PASHP3PWMV8MV80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PASHP3PWTW8TW80 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PASHP3PWFV12FV120 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PASHP3PWMV12MV120 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PASHP3PWTW12TW120 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PASHP4PWFV4FV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PASHP4PWMV4MV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PASHP4PWTW4TW400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PASHP4PWFV6FV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PASHP4PWMV6MV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PASHP4PWTW6TW600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PASHP4PWFV8FV800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PASHP4PWMV8MV800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PASHP4PWTW8TW800 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PASHP4PWFV12FV1200 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PASHP4PWMV12MV1200 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PASHP4PWTW12TW1200 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld
AP12PASH2PWFV4FV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP12PASH2PWMV4MV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP12PASH2PWTW4TW4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP12PASH2PWFV6FV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP12PASH2PWMV6MV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP12PASH2PWTW6TW6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP12PASH2PWFV8FV8 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 face seal female
AP12PASH2PWMV8MV8 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 face seal male
AP12PASH2PWTW8TW8 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 tube weld
AP12PASH2PWFV12FV12 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 face seal female
AP12PASH2PWMV12MV12 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 face seal male
AP12PASH2PWTW12TW12 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 tube weld
AP12PASH3PWFV4FV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PASH3PWMV4MV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PASH3PWTW4TW40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PASH3PWFV6FV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PASH3PWMV6MV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PASH3PWTW6TW60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PASH3PWFV8FV80 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PASH3PWMV8MV80 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PASH3PWTW8TW80 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PASH3PWFV12FV120 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PASH3PWMV12MV120 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PASH3PWTW12TW120 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PASH4PWFV4FV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PASH4PWMV4MV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PASH4PWTW4TW400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PASH4PWFV6FV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PASH4PWMV6MV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PASH4PWTW6TW600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PASH4PWFV8FV800 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PASH4PWMV8MV800 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PASH4PWTW8TW800 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PASH4PWFV12FV1200 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PASH4PWMV12MV1200 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PASH4PWTW12TW1200 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld
RegulatorsSMC
108 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP12PA Air-Operated High-Purity Regulator (High Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (108)

AP12PAS2PWFV4FV4, AP12PAS2PWMV4MV4, AP12PAS2PWTW4TW4, AP12PAS2PWFV6FV6, AP12PAS2PWMV6MV6, AP12PAS2PWTW6TW6, AP12PAS2PWFV8FV8, AP12PAS2PWMV8MV8, AP12PAS2PWTW8TW8, AP12PAS2PWFV12FV12 + 98 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP12PAS2PWFV4FV4Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP12PAS2PWMV4MV4Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP12PAS2PWTW4TW4Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP12PAS2PWFV6FV6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP12PAS2PWMV6MV6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP12PAS2PWTW6TW6Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP12PAS2PWFV8FV8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal female
AP12PAS2PWMV8MV8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 face seal male
AP12PAS2PWTW8TW8Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/2 tube weld
AP12PAS2PWFV12FV12Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 face seal female
AP12PAS2PWMV12MV12Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 face seal male
AP12PAS2PWTW12TW12Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/4 tube weld
AP12PAS3PWFV4FV40Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PAS3PWMV4MV40Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PAS3PWTW4TW40Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PAS3PWFV6FV60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PAS3PWMV6MV60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PAS3PWTW6TW60Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PAS3PWFV8FV80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PAS3PWMV8MV80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PAS3PWTW8TW80Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PAS3PWFV12FV120Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PAS3PWMV12MV120Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PAS3PWTW12TW120Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PAS4PWFV4FV400Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PAS4PWMV4MV400Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PAS4PWTW4TW400Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PAS4PWFV6FV600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PAS4PWMV6MV600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PAS4PWTW6TW600Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PAS4PWFV8FV800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PAS4PWMV8MV800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PAS4PWTW8TW800Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PAS4PWFV12FV1200Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PAS4PWMV12MV1200Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PAS4PWTW12TW1200Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld
AP12PASHP2PWFV4FV4Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP12PASHP2PWMV4MV4Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP12PASHP2PWTW4TW4Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP12PASHP2PWFV6FV6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP12PASHP2PWMV6MV6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP12PASHP2PWTW6TW6Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP12PASHP2PWFV8FV8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal female
AP12PASHP2PWMV8MV8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 face seal male
AP12PASHP2PWTW8TW8Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/2 tube weld
AP12PASHP2PWFV12FV12Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 face seal female
AP12PASHP2PWMV12MV12Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 face seal male
AP12PASHP2PWTW12TW12Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/4 tube weld
AP12PASHP3PWFV4FV40Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PASHP3PWMV4MV40Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PASHP3PWTW4TW40Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PASHP3PWFV6FV60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PASHP3PWMV6MV60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PASHP3PWTW6TW60Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PASHP3PWFV8FV80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PASHP3PWMV8MV80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PASHP3PWTW8TW80Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PASHP3PWFV12FV120Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PASHP3PWMV12MV120Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PASHP3PWTW12TW120Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PASHP4PWFV4FV400Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PASHP4PWMV4MV400Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PASHP4PWTW4TW400Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PASHP4PWFV6FV600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PASHP4PWMV6MV600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PASHP4PWTW6TW600Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PASHP4PWFV8FV800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PASHP4PWMV8MV800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PASHP4PWTW8TW800Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PASHP4PWFV12FV1200Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PASHP4PWMV12MV1200Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PASHP4PWTW12TW1200Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld
AP12PASH2PWFV4FV4Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP12PASH2PWMV4MV4Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP12PASH2PWTW4TW4Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP12PASH2PWFV6FV6Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP12PASH2PWMV6MV6Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP12PASH2PWTW6TW6Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP12PASH2PWFV8FV8Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 face seal female
AP12PASH2PWMV8MV8Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 face seal male
AP12PASH2PWTW8TW8Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/2 tube weld
AP12PASH2PWFV12FV12Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 face seal female
AP12PASH2PWMV12MV12Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 face seal male
AP12PASH2PWTW12TW12Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/4 tube weld
AP12PASH3PWFV4FV40Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP12PASH3PWMV4MV40Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP12PASH3PWTW4TW40Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP12PASH3PWFV6FV60Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP12PASH3PWMV6MV60Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP12PASH3PWTW6TW60Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP12PASH3PWFV8FV80Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP12PASH3PWMV8MV80Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP12PASH3PWTW8TW80Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP12PASH3PWFV12FV120Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 face seal female
AP12PASH3PWMV12MV120Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 face seal male
AP12PASH3PWTW12TW120Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/4 tube weld
AP12PASH4PWFV4FV400Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP12PASH4PWMV4MV400Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP12PASH4PWTW4TW400Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP12PASH4PWFV6FV600Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP12PASH4PWMV6MV600Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP12PASH4PWTW6TW600Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP12PASH4PWFV8FV800Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP12PASH4PWMV8MV800Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP12PASH4PWTW8TW800Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP12PASH4PWFV12FV1200Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal female
AP12PASH4PWMV12MV1200Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 face seal male
AP12PASH4PWTW12TW1200Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/4 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
