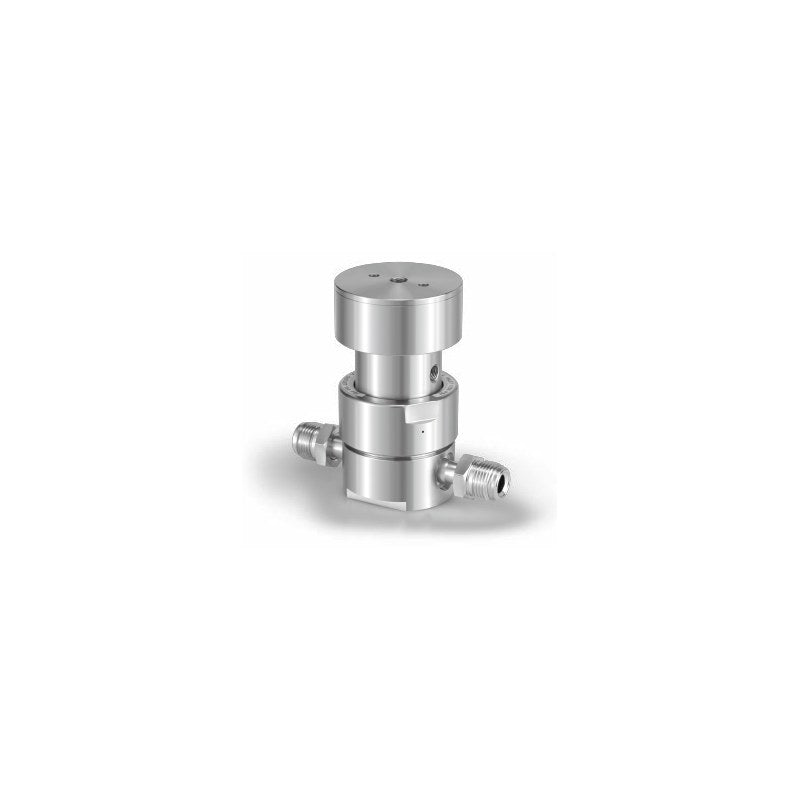

SMC AP14PAT Air-Operated High-Purity Regulator (Medium Flow, Tied Diaphragm)

SMC AP14PAT Air-Operated High-Purity Regulator (Medium Flow, Tied Diaphragm)

SMC AP14PAT series air-operated high-purity tied-diaphragm regulator set by pilot air, for medium flow (below 400 slpm) process gas lines.

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Inlet up to 2300 psig (15.9 MPa), HR option 20.7 MPa; flow below 400 slpm
  • Ni-Cr-Mo alloy internals as standard
  • 2, 3 or 4-port bodies with 1/4 to 1/2 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 15.9 MPa (HR 20.7 MPa)
Internal volume 17.4 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 732-733
AP14PATS2PWFV4FV4 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/4 face seal female
AP14PATS2PWMV4MV4 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/4 face seal male
AP14PATS2PWTW4TW4 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/4 tube weld
AP14PATS2PWFV6FV6 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 3/8 face seal female
AP14PATS2PWMV6MV6 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 3/8 face seal male
AP14PATS2PWTW6TW6 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 3/8 tube weld
AP14PATS2PWFV8FV8 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/2 face seal female
AP14PATS2PWMV8MV8 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/2 face seal male
AP14PATS2PWTW8TW8 Material: SUS316L, Ni-Cr-Mo internals | Ports: 2 ports | Connection: 1/2 tube weld
AP14PATS3PWFV4FV40 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP14PATS3PWMV4MV40 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP14PATS3PWTW4TW40 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP14PATS3PWFV6FV60 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP14PATS3PWMV6MV60 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP14PATS3PWTW6TW60 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP14PATS3PWFV8FV80 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP14PATS3PWMV8MV80 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP14PATS3PWTW8TW80 Material: SUS316L, Ni-Cr-Mo internals | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP14PATS4PWFV4FV400 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP14PATS4PWMV4MV400 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP14PATS4PWTW4TW400 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP14PATS4PWFV6FV600 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP14PATS4PWMV6MV600 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP14PATS4PWTW6TW600 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP14PATS4PWFV8FV800 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP14PATS4PWMV8MV800 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP14PATS4PWTW8TW800 Material: SUS316L, Ni-Cr-Mo internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
AP14PATSH2PWFV4FV4 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/4 face seal female
AP14PATSH2PWMV4MV4 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/4 face seal male
AP14PATSH2PWTW4TW4 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/4 tube weld
AP14PATSH2PWFV6FV6 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 3/8 face seal female
AP14PATSH2PWMV6MV6 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 3/8 face seal male
AP14PATSH2PWTW6TW6 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 3/8 tube weld
AP14PATSH2PWFV8FV8 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/2 face seal female
AP14PATSH2PWMV8MV8 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/2 face seal male
AP14PATSH2PWTW8TW8 Material: Ni-Cr-Mo internals and nozzle | Ports: 2 ports | Connection: 1/2 tube weld
AP14PATSH3PWFV4FV40 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP14PATSH3PWMV4MV40 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP14PATSH3PWTW4TW40 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP14PATSH3PWFV6FV60 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP14PATSH3PWMV6MV60 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP14PATSH3PWTW6TW60 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP14PATSH3PWFV8FV80 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/2 face seal female
AP14PATSH3PWMV8MV80 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/2 face seal male
AP14PATSH3PWTW8TW80 Material: Ni-Cr-Mo internals and nozzle | Ports: 3 ports (gauge port) | Connection: 1/2 tube weld
AP14PATSH4PWFV4FV400 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP14PATSH4PWMV4MV400 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP14PATSH4PWTW4TW400 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP14PATSH4PWFV6FV600 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP14PATSH4PWMV6MV600 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP14PATSH4PWTW6TW600 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP14PATSH4PWFV8FV800 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal female
AP14PATSH4PWMV8MV800 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 face seal male
AP14PATSH4PWTW8TW800 Material: Ni-Cr-Mo internals and nozzle | Ports: 4 ports (IN + OUT gauge) | Connection: 1/2 tube weld
RegulatorsSMC
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP14PAT Air-Operated High-Purity Regulator (Medium Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (54)

AP14PATS2PWFV4FV4, AP14PATS2PWMV4MV4, AP14PATS2PWTW4TW4, AP14PATS2PWFV6FV6, AP14PATS2PWMV6MV6, AP14PATS2PWTW6TW6, AP14PATS2PWFV8FV8, AP14PATS2PWMV8MV8, AP14PATS2PWTW8TW8, AP14PATS3PWFV4FV40 + 44 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
