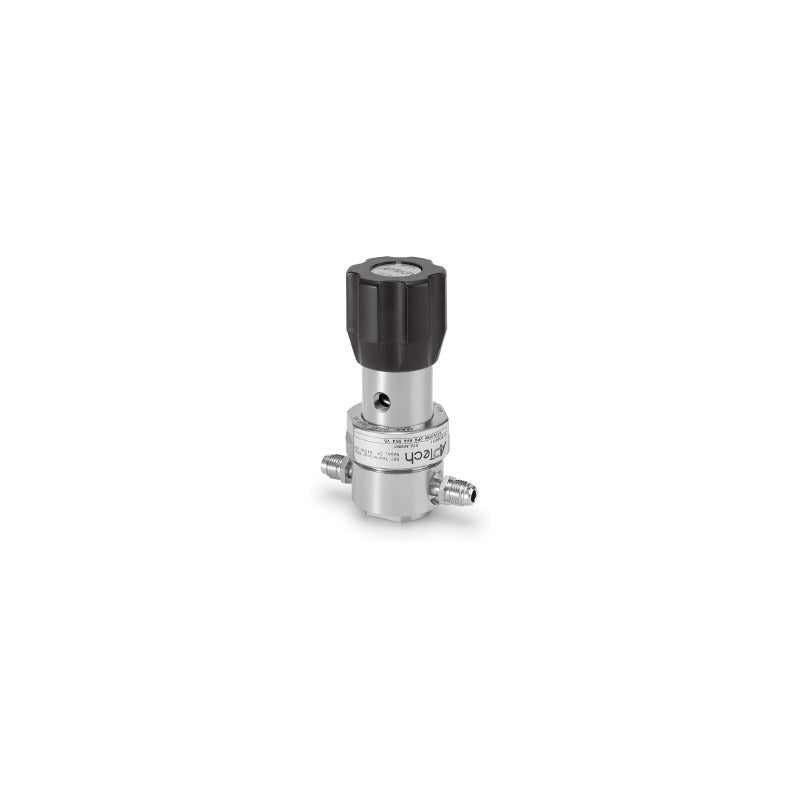

SMC AP1500 High-Purity Regulator (Low Flow, Tied Diaphragm)

SMC AP1500 High-Purity Regulator (Low Flow, Tied Diaphragm)

SMC AP1500 series single-stage high-purity regulator with tied-diaphragm construction for low-flow process gas lines up to 24.1 MPa inlet.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Tied diaphragm construction; inlet up to 3500 psig (24.1 MPa); flow below 30 slpm
  • Four set pressure ranges from 0.007-0.2 MPa to 0.034-1.0 MPa
  • Materials S, SHP, SH and H (Ni-Cr-Mo alloy) for corrosive gases
  • 2, 3 or 4-port bodies with 1/4 or 3/8 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Inlet pressure Vacuum to 24.1 MPa
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Pressure characteristic 0.0028 MPa rise per 0.7 MPa inlet drop
Internal volume 8.4 cm3
Mass 1.27 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 670-671
AP1502S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1502S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1502S2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1502S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1502S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1502S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1502S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502S3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502S4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502S4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502S4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502S4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502S4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502S4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502SHP2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1502SHP2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1502SHP2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1502SHP2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1502SHP2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1502SHP2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1502SHP3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502SHP3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502SHP3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502SHP3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502SHP3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502SHP3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502SHP4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502SHP4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502SHP4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502SHP4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502SHP4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502SHP4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502SH2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1502SH2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1502SH2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1502SH2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1502SH2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1502SH2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1502SH3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502SH3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502SH3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502SH3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502SH3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502SH3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502SH4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502SH4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502SH4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502SH4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502SH4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502SH4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502H2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1502H2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1502H2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1502H2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1502H2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1502H2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1502H3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502H3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502H3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502H3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502H3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502H3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502H4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502H4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502H4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502H4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502H4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502H4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1506S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1506S2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1506S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1506S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1506S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1506S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506S3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506S4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506S4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506S4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506S4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506S4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506S4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506SHP2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1506SHP2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1506SHP2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1506SHP2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1506SHP2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1506SHP2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1506SHP3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506SHP3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506SHP3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506SHP3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506SHP3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506SHP3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506SHP4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506SHP4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506SHP4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506SHP4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506SHP4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506SHP4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506SH2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1506SH2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1506SH2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1506SH2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1506SH2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1506SH2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1506SH3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506SH3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506SH3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506SH3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506SH3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506SH3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506SH4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506SH4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506SH4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506SH4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506SH4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506SH4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506H2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1506H2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1506H2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1506H2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1506H2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1506H2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1506H3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506H3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506H3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506H3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506H3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506H3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506H4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506H4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506H4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506H4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506H4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506H4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1510S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1510S2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1510S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1510S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1510S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1510S3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510S3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510S3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510S3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510S3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510S3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510S4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510S4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510S4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510S4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510S4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510S4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510SHP2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1510SHP2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1510SHP2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1510SHP2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1510SHP2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1510SHP2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1510SHP3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510SHP3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510SHP3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510SHP3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510SHP3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510SHP3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510SHP4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510SHP4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510SHP4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510SHP4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510SHP4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510SHP4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510SH2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1510SH2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1510SH2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1510SH2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1510SH2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1510SH2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1510SH3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510SH3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510SH3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510SH3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510SH3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510SH3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510SH4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510SH4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510SH4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510SH4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510SH4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510SH4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510H2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1510H2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1510H2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1510H2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1510H2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1510H2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1510H3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510H3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510H3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510H3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510H3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510H3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510H4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510H4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510H4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510H4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510H4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510H4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515S2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1515S2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1515S2PWTW4TW4 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1515S2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1515S2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1515S2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1515S3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515S3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515S3PWTW4TW40 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515S3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515S3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515S3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515S4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515S4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515S4PWTW4TW400 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515S4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515S4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515S4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515SHP2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1515SHP2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1515SHP2PWTW4TW4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1515SHP2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1515SHP2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1515SHP2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1515SHP3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515SHP3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515SHP3PWTW4TW40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515SHP3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515SHP3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515SHP3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515SHP4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515SHP4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515SHP4PWTW4TW400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515SHP4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515SHP4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515SHP4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515SH2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1515SH2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1515SH2PWTW4TW4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1515SH2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1515SH2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1515SH2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1515SH3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515SH3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515SH3PWTW4TW40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515SH3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515SH3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515SH3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515SH4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515SH4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515SH4PWTW4TW400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515SH4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515SH4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515SH4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515H2PWFV4FV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1515H2PWMV4MV4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1515H2PWTW4TW4 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1515H2PWFV6FV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1515H2PWMV6MV6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1515H2PWTW6TW6 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1515H3PWFV4FV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515H3PWMV4MV40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515H3PWTW4TW40 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515H3PWFV6FV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515H3PWMV6MV60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515H3PWTW6TW60 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515H4PWFV4FV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515H4PWMV4MV400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515H4PWTW4TW400 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515H4PWFV6FV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515H4PWMV6MV600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515H4PWTW6TW600 Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
RegulatorsSMC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP1500 High-Purity Regulator (Low Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (288)

AP1502S2PWFV4FV4, AP1502S2PWMV4MV4, AP1502S2PWTW4TW4, AP1502S2PWFV6FV6, AP1502S2PWMV6MV6, AP1502S2PWTW6TW6, AP1502S3PWFV4FV40, AP1502S3PWMV4MV40, AP1502S3PWTW4TW40, AP1502S3PWFV6FV60 + 278 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP1502S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1502S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1502S2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1502S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1502S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1502S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1502S3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502S3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502S3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502S3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502S3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502S3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502S4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502S4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502S4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502S4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502S4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502S4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502SHP2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1502SHP2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1502SHP2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1502SHP2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1502SHP2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1502SHP2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1502SHP3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502SHP3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502SHP3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502SHP3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502SHP3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502SHP3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502SHP4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502SHP4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502SHP4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502SHP4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502SHP4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502SHP4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502SH2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1502SH2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1502SH2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1502SH2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1502SH2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1502SH2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1502SH3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502SH3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502SH3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502SH3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502SH3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502SH3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502SH4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502SH4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502SH4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502SH4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502SH4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502SH4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1502H2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1502H2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1502H2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1502H2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1502H2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1502H2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1502H3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1502H3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1502H3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1502H3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1502H3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1502H3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1502H4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1502H4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1502H4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1502H4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1502H4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1502H4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1506S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1506S2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1506S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1506S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1506S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1506S3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506S3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506S3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506S3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506S3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506S3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506S4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506S4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506S4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506S4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506S4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506S4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506SHP2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1506SHP2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1506SHP2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1506SHP2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1506SHP2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1506SHP2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1506SHP3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506SHP3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506SHP3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506SHP3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506SHP3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506SHP3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506SHP4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506SHP4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506SHP4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506SHP4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506SHP4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506SHP4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506SH2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1506SH2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1506SH2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1506SH2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1506SH2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1506SH2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1506SH3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506SH3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506SH3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506SH3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506SH3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506SH3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506SH4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506SH4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506SH4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506SH4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506SH4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506SH4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1506H2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1506H2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1506H2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1506H2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1506H2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1506H2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1506H3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1506H3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1506H3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1506H3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1506H3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1506H3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1506H4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1506H4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1506H4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1506H4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1506H4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1506H4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510S2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1510S2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1510S2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1510S2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1510S2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1510S2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1510S3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510S3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510S3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510S3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510S3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510S3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510S4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510S4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510S4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510S4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510S4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510S4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510SHP2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1510SHP2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1510SHP2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1510SHP2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1510SHP2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1510SHP2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1510SHP3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510SHP3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510SHP3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510SHP3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510SHP3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510SHP3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510SHP4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510SHP4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510SHP4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510SHP4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510SHP4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510SHP4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510SH2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1510SH2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1510SH2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1510SH2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1510SH2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1510SH2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1510SH3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510SH3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510SH3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510SH3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510SH3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510SH3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510SH4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510SH4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510SH4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510SH4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510SH4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510SH4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1510H2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1510H2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1510H2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1510H2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1510H2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1510H2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1510H3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1510H3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1510H3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1510H3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1510H3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1510H3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1510H4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1510H4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1510H4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1510H4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1510H4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1510H4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515S2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1515S2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1515S2PWTW4TW4Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1515S2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1515S2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1515S2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1515S3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515S3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515S3PWTW4TW40Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515S3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515S3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515S3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515S4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515S4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515S4PWTW4TW400Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515S4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515S4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515S4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515SHP2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP1515SHP2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP1515SHP2PWTW4TW4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP1515SHP2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP1515SHP2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP1515SHP2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP1515SHP3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515SHP3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515SHP3PWTW4TW40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515SHP3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515SHP3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515SHP3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515SHP4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515SHP4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515SHP4PWTW4TW400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515SHP4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515SHP4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515SHP4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515SH2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1515SH2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1515SH2PWTW4TW4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1515SH2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1515SH2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1515SH2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1515SH3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515SH3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515SH3PWTW4TW40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515SH3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515SH3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515SH3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515SH4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515SH4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515SH4PWTW4TW400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515SH4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515SH4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515SH4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1515H2PWFV4FV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP1515H2PWMV4MV4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP1515H2PWTW4TW4Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP1515H2PWFV6FV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP1515H2PWMV6MV6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP1515H2PWTW6TW6Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP1515H3PWFV4FV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1515H3PWMV4MV40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1515H3PWTW4TW40Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1515H3PWFV6FV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1515H3PWMV6MV60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1515H3PWTW6TW60Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1515H4PWFV4FV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1515H4PWMV4MV400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1515H4PWTW4TW400Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1515H4PWFV6FV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1515H4PWMV6MV600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1515H4PWTW6TW600Set pressure: 0.034 to 1.0 MPa | Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
