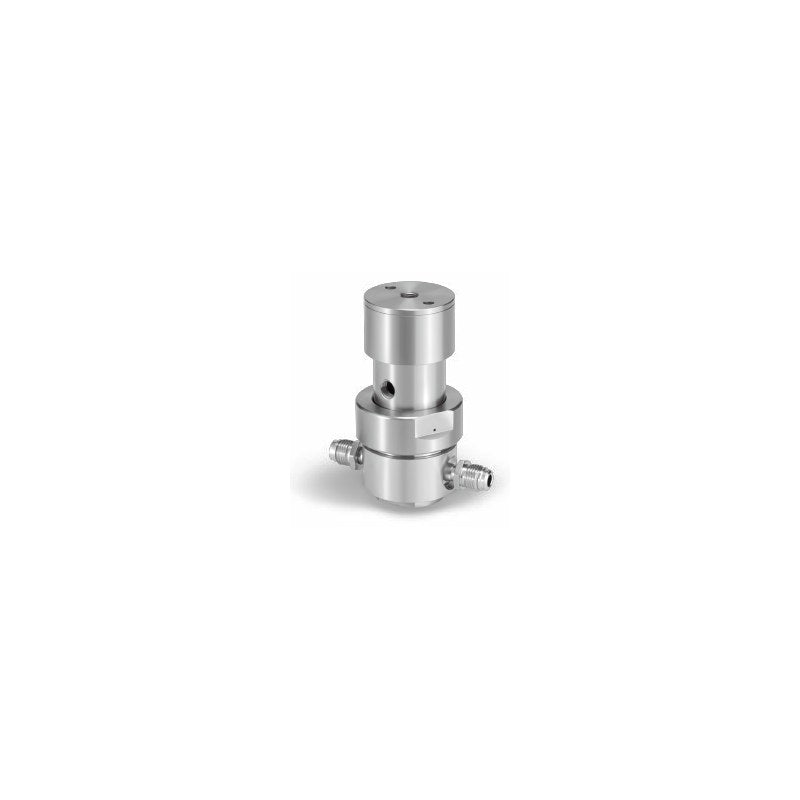

SMC AP15PA Air-Operated High-Purity Regulator (Low Flow, Tied Diaphragm)

SMC AP15PA Air-Operated High-Purity Regulator (Low Flow, Tied Diaphragm)

SMC AP15PA series air-operated high-purity tied-diaphragm regulator set by pilot air, for low-flow process gas lines up to 24.1 MPa inlet.

Key features

  • Air-operated (dome-loaded) set point: pilot air sets outlet pressure 0.05-1.0 MPa; pilot air isolated from process gas by a double seal
  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Tied diaphragm; inlet up to 3500 psig (24.1 MPa); flow below 30 slpm
  • Materials S, SHP, SH and H (Ni-Cr-Mo alloy)
  • 2, 3 or 4-port bodies with 1/4 or 3/8 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Set pressure 7-150 psig (0.05-1.0 MPa)
Max. pilot pressure 150 psig (1.0 MPa)
Pilot port NPT1/8
Inlet pressure Vacuum to 24.1 MPa
Internal volume 8.4 cm3
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 730-731
AP15PAS2PWFV4FV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP15PAS2PWMV4MV4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP15PAS2PWTW4TW4 Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP15PAS2PWFV6FV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP15PAS2PWMV6MV6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP15PAS2PWTW6TW6 Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP15PAS3PWFV4FV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP15PAS3PWMV4MV40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP15PAS3PWTW4TW40 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP15PAS3PWFV6FV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP15PAS3PWMV6MV60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP15PAS3PWTW6TW60 Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP15PAS4PWFV4FV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP15PAS4PWMV4MV400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP15PAS4PWTW4TW400 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP15PAS4PWFV6FV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP15PAS4PWMV6MV600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP15PAS4PWTW6TW600 Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP15PASHP2PWFV4FV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal female
AP15PASHP2PWMV4MV4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 face seal male
AP15PASHP2PWTW4TW4 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 1/4 tube weld
AP15PASHP2PWFV6FV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal female
AP15PASHP2PWMV6MV6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 face seal male
AP15PASHP2PWTW6TW6 Material: Ni-Cr-Mo poppet | Ports: 2 ports | Connection: 3/8 tube weld
AP15PASHP3PWFV4FV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP15PASHP3PWMV4MV40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP15PASHP3PWTW4TW40 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP15PASHP3PWFV6FV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP15PASHP3PWMV6MV60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP15PASHP3PWTW6TW60 Material: Ni-Cr-Mo poppet | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP15PASHP4PWFV4FV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP15PASHP4PWMV4MV400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP15PASHP4PWTW4TW400 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP15PASHP4PWFV6FV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP15PASHP4PWMV6MV600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP15PASHP4PWTW6TW600 Material: Ni-Cr-Mo poppet | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP15PASH2PWFV4FV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP15PASH2PWMV4MV4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP15PASH2PWTW4TW4 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP15PASH2PWFV6FV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP15PASH2PWMV6MV6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP15PASH2PWTW6TW6 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP15PASH3PWFV4FV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP15PASH3PWMV4MV40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP15PASH3PWTW4TW40 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP15PASH3PWFV6FV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP15PASH3PWMV6MV60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP15PASH3PWTW6TW60 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP15PASH4PWFV4FV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP15PASH4PWMV4MV400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP15PASH4PWTW4TW400 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP15PASH4PWFV6FV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP15PASH4PWMV6MV600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP15PASH4PWTW6TW600 Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP15PAH2PWFV4FV4 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal female
AP15PAH2PWMV4MV4 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 face seal male
AP15PAH2PWTW4TW4 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 1/4 tube weld
AP15PAH2PWFV6FV6 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal female
AP15PAH2PWMV6MV6 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 face seal male
AP15PAH2PWTW6TW6 Material: Ni-Cr-Mo body and internals | Ports: 2 ports | Connection: 3/8 tube weld
AP15PAH3PWFV4FV40 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP15PAH3PWMV4MV40 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP15PAH3PWTW4TW40 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP15PAH3PWFV6FV60 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP15PAH3PWMV6MV60 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP15PAH3PWTW6TW60 Material: Ni-Cr-Mo body and internals | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP15PAH4PWFV4FV400 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP15PAH4PWMV4MV400 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP15PAH4PWTW4TW400 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP15PAH4PWFV6FV600 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP15PAH4PWMV6MV600 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP15PAH4PWTW6TW600 Material: Ni-Cr-Mo body and internals | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
RegulatorsSMC
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP15PA Air-Operated High-Purity Regulator (Low Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (72)

AP15PAS2PWFV4FV4, AP15PAS2PWMV4MV4, AP15PAS2PWTW4TW4, AP15PAS2PWFV6FV6, AP15PAS2PWMV6MV6, AP15PAS2PWTW6TW6, AP15PAS3PWFV4FV40, AP15PAS3PWMV4MV40, AP15PAS3PWTW4TW40, AP15PAS3PWFV6FV60 + 62 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
