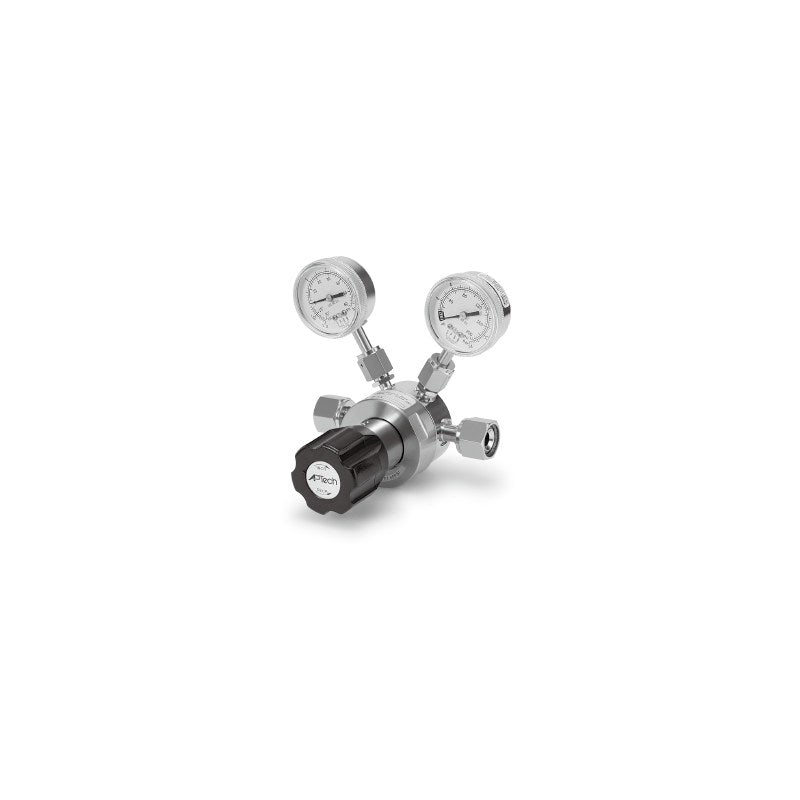

SMC AP1600 High-Purity Regulator (Single-Stage, Low-Medium Flow)

SMC AP1600 High-Purity Regulator (Single-Stage, Low-Medium Flow)

SMC AP1600 series single-stage high-purity regulator for low to medium flow (up to about 100 slpm) process gas lines, inlet up to 24.1 MPa.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Inlet pressure up to 3500 psig (24.1 MPa) (AP1601: 0.7 MPa); flow up to approx. 100 slpm
  • Four set pressure ranges from 0.007-0.07 MPa to 0.014-0.7 MPa
  • Material S or SH (Ni-Cr-Mo poppet, diaphragm and nozzle)
  • 2, 3 or 4-port bodies with 1/4 or 3/8 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Bottom mount (panel mount option P)
Inlet pressure Vacuum to 24.1 MPa
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Pressure characteristic 0.0017 MPa rise per 0.7 MPa inlet drop
Internal volume 13.5 cm3
Mass 1.54 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 672-673
AP1601S2PWFV4FV4 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1601S2PWMV4MV4 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1601S2PWTW4TW4 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1601S2PWFV6FV6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1601S2PWMV6MV6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1601S2PWTW6TW6 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1601S3PWFV4FV40 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1601S3PWMV4MV40 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1601S3PWTW4TW40 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1601S3PWFV6FV60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1601S3PWMV6MV60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1601S3PWTW6TW60 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1601S4PWFV4FV400 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1601S4PWMV4MV400 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1601S4PWTW4TW400 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1601S4PWFV6FV600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1601S4PWMV6MV600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1601S4PWTW6TW600 Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1601SH2PWFV4FV4 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1601SH2PWMV4MV4 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1601SH2PWTW4TW4 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1601SH2PWFV6FV6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1601SH2PWMV6MV6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1601SH2PWTW6TW6 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1601SH3PWFV4FV40 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1601SH3PWMV4MV40 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1601SH3PWTW4TW40 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1601SH3PWFV6FV60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1601SH3PWMV6MV60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1601SH3PWTW6TW60 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1601SH4PWFV4FV400 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1601SH4PWMV4MV400 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1601SH4PWTW4TW400 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1601SH4PWFV6FV600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1601SH4PWMV6MV600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1601SH4PWTW6TW600 Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1602S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1602S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1602S2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1602S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1602S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1602S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1602S3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1602S3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1602S3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1602S3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1602S3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1602S3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1602S4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1602S4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1602S4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1602S4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1602S4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1602S4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1602SH2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1602SH2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1602SH2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1602SH2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1602SH2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1602SH2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1602SH3PWFV4FV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1602SH3PWMV4MV40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1602SH3PWTW4TW40 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1602SH3PWFV6FV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1602SH3PWMV6MV60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1602SH3PWTW6TW60 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1602SH4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1602SH4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1602SH4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1602SH4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1602SH4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1602SH4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1606S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1606S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1606S2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1606S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1606S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1606S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1606S3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1606S3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1606S3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1606S3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1606S3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1606S3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1606S4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1606S4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1606S4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1606S4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1606S4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1606S4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1606SH2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1606SH2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1606SH2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1606SH2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1606SH2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1606SH2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1606SH3PWFV4FV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1606SH3PWMV4MV40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1606SH3PWTW4TW40 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1606SH3PWFV6FV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1606SH3PWMV6MV60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1606SH3PWTW6TW60 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1606SH4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1606SH4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1606SH4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1606SH4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1606SH4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1606SH4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1610S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1610S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1610S2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1610S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1610S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1610S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1610S3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1610S3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1610S3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1610S3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1610S3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1610S3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1610S4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1610S4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1610S4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1610S4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1610S4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1610S4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1610SH2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1610SH2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1610SH2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1610SH2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1610SH2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1610SH2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1610SH3PWFV4FV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1610SH3PWMV4MV40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1610SH3PWTW4TW40 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1610SH3PWFV6FV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1610SH3PWMV6MV60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1610SH3PWTW6TW60 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1610SH4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1610SH4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1610SH4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1610SH4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1610SH4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1610SH4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
RegulatorsSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP1600 High-Purity Regulator (Single-Stage, Low-Medium Flow)

Brand SMC·Regulators

Available part numbers (144)

AP1601S2PWFV4FV4, AP1601S2PWMV4MV4, AP1601S2PWTW4TW4, AP1601S2PWFV6FV6, AP1601S2PWMV6MV6, AP1601S2PWTW6TW6, AP1601S3PWFV4FV40, AP1601S3PWMV4MV40, AP1601S3PWTW4TW40, AP1601S3PWFV6FV60 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP1601S2PWFV4FV4Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1601S2PWMV4MV4Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1601S2PWTW4TW4Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1601S2PWFV6FV6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1601S2PWMV6MV6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1601S2PWTW6TW6Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1601S3PWFV4FV40Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1601S3PWMV4MV40Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1601S3PWTW4TW40Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1601S3PWFV6FV60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1601S3PWMV6MV60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1601S3PWTW6TW60Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1601S4PWFV4FV400Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1601S4PWMV4MV400Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1601S4PWTW4TW400Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1601S4PWFV6FV600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1601S4PWMV6MV600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1601S4PWTW6TW600Set pressure: 0.007 to 0.07 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1601SH2PWFV4FV4Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1601SH2PWMV4MV4Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1601SH2PWTW4TW4Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1601SH2PWFV6FV6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1601SH2PWMV6MV6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1601SH2PWTW6TW6Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1601SH3PWFV4FV40Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1601SH3PWMV4MV40Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1601SH3PWTW4TW40Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1601SH3PWFV6FV60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1601SH3PWMV6MV60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1601SH3PWTW6TW60Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1601SH4PWFV4FV400Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1601SH4PWMV4MV400Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1601SH4PWTW4TW400Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1601SH4PWFV6FV600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1601SH4PWMV6MV600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1601SH4PWTW6TW600Set pressure: 0.007 to 0.07 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1602S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1602S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1602S2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1602S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1602S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1602S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1602S3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1602S3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1602S3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1602S3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1602S3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1602S3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1602S4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1602S4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1602S4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1602S4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1602S4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1602S4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1602SH2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1602SH2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1602SH2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1602SH2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1602SH2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1602SH2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1602SH3PWFV4FV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1602SH3PWMV4MV40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1602SH3PWTW4TW40Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1602SH3PWFV6FV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1602SH3PWMV6MV60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1602SH3PWTW6TW60Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1602SH4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1602SH4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1602SH4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1602SH4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1602SH4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1602SH4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1606S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1606S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1606S2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1606S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1606S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1606S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1606S3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1606S3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1606S3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1606S3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1606S3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1606S3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1606S4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1606S4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1606S4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1606S4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1606S4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1606S4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1606SH2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1606SH2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1606SH2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1606SH2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1606SH2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1606SH2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1606SH3PWFV4FV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1606SH3PWMV4MV40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1606SH3PWTW4TW40Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1606SH3PWFV6FV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1606SH3PWMV6MV60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1606SH3PWTW6TW60Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1606SH4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1606SH4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1606SH4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1606SH4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1606SH4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1606SH4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1610S2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP1610S2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP1610S2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP1610S2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP1610S2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP1610S2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP1610S3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1610S3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1610S3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1610S3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1610S3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1610S3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1610S4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1610S4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1610S4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1610S4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1610S4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1610S4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP1610SH2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP1610SH2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP1610SH2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP1610SH2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP1610SH2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP1610SH2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP1610SH3PWFV4FV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal female
AP1610SH3PWMV4MV40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 face seal male
AP1610SH3PWTW4TW40Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 1/4 tube weld
AP1610SH3PWFV6FV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal female
AP1610SH3PWMV6MV60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 face seal male
AP1610SH3PWTW6TW60Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (gauge port) | Connection: 3/8 tube weld
AP1610SH4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP1610SH4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP1610SH4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP1610SH4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP1610SH4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP1610SH4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
