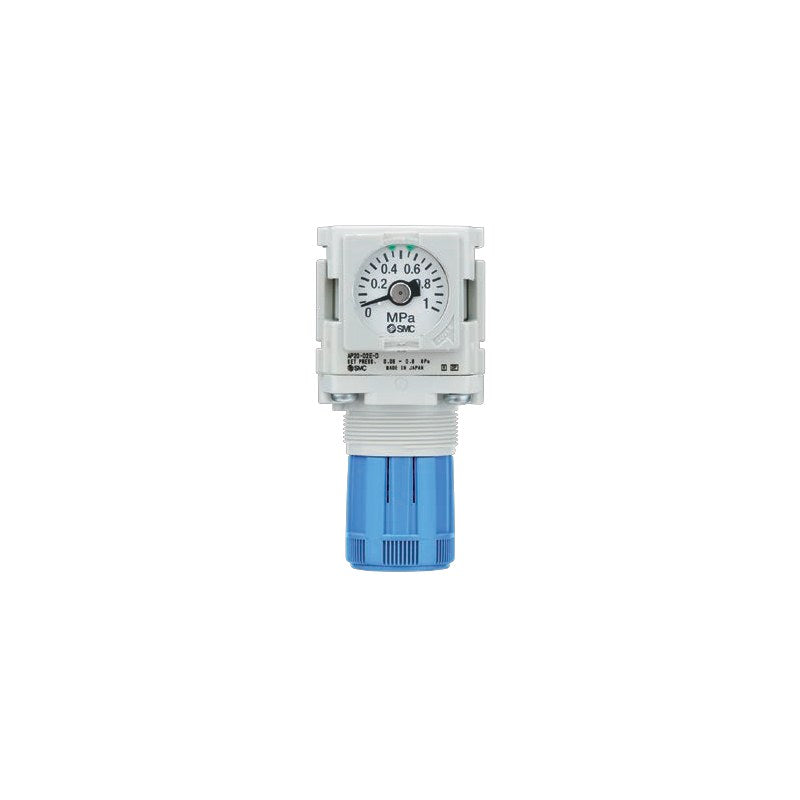

SMC AP20-D Modular Relief Valve (1/8, 1/4)

SMC AP20-D Modular Relief Valve (1/8, 1/4)

SMC AP20-D modular type relief valve that exhausts pressure above the set value to atmosphere, connecting directly to AC-D modular units with common IN ports.

Key features

  • Exhausts excess pressure to keep the set pressure; set range 0.05 to 0.8 MPa or 0.02 to 0.2 MPa (-1)
  • Common IN ports on both sides allow modular connection without branch piping
  • Gauge options: square embedded (E) or round gauge with limit indicator (G), round gauge with color zone (M)
  • Other options as symbols: bracket (B), panel nut (H), IN-port plug (N), built-in silencer (S), handle up (Y), psi units (Z)
  • Handle with finger grip; Rc thread standard, NPT (N) and G (F) available

Specifications

Fluid Air
Port size 1/8, 1/4 (common IN)
EXH port 1/8
Gauge port 1/8
Ambient and fluid temperature -5 to 60°C (no freezing)
Proof pressure 1.3 MPa
Max. operating pressure 0.85 MPa (0.4 MPa with gauge on -1 type)
Mass 0.12 kg
Thread Rc (NPT, G on order)
Source SMC Korea catalog CAT.KS40-84A (SMCKR_AP20.pdf), p. 1-2 (PDF p. 2-3)
AP20-01-D Port size: Rc1/8 | Set pressure range: 0.05 to 0.8 MPa
AP20-01-1-D Port size: Rc1/8 | Set pressure range: 0.02 to 0.2 MPa
AP20-02-D Port size: Rc1/4 | Set pressure range: 0.05 to 0.8 MPa
AP20-02-1-D Port size: Rc1/4 | Set pressure range: 0.02 to 0.2 MPa
RegulatorsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP20-D Modular Relief Valve (1/8, 1/4)

Brand SMC·Regulators

Available part numbers (4)

AP20-01-D, AP20-01-1-D, AP20-02-D, AP20-02-1-D
