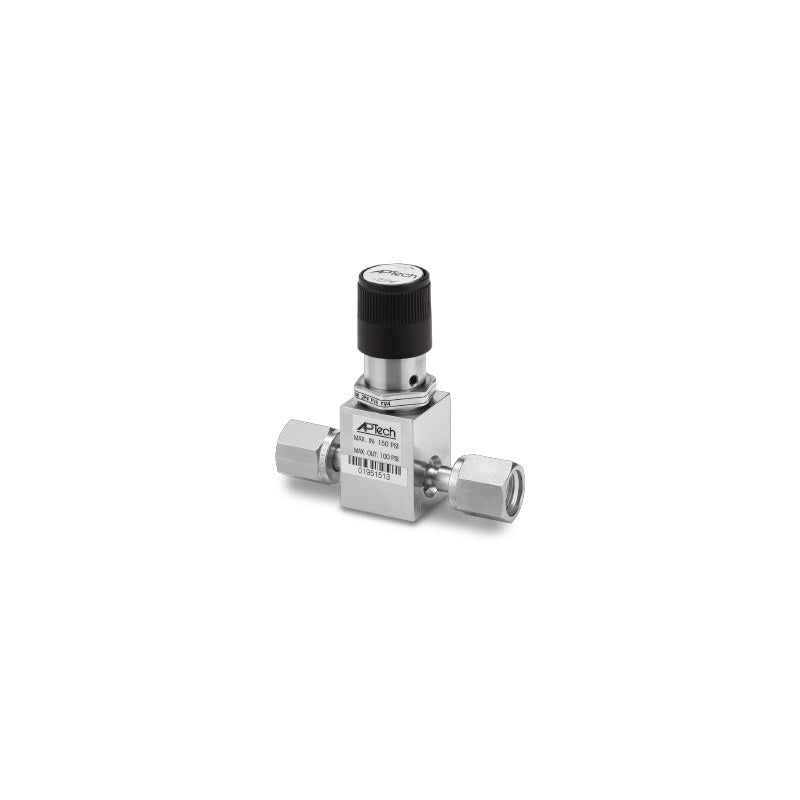

SMC AP2700 High-Purity Two-Stage Regulator (Medium Flow, Tied Diaphragm)

SMC AP2700 High-Purity Two-Stage Regulator (Medium Flow, Tied Diaphragm)

SMC AP2700 series two-stage high-purity tied-diaphragm regulator for medium flow process gas lines, minimising the effect of inlet pressure changes.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; precision cleaned and helium leak tested
  • Two-stage pressure reduction (intermediate 1.4 MPa); flow below 150 slpm (NF3) / 900 slpm (H2)
  • Inlet up to 3500 psig (24.1 MPa); set pressure 0.007-0.2 to 0.021-0.8 MPa
  • Material S or SH (Ni-Cr-Mo poppet and nozzle)
  • 2, 3 (MP gauge), 4 or 5-port (MP gauge) bodies with 1/4 or 3/8 face seal or tube weld connections
  • Listed codes: gauge ports "0" (1/4 face seal male port, no gauge); gauges (V3, L, 1, H, 2, 4, 40), MPA scale, VS/TF seat, HF high-flow and panel mount (P) are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Mounting Panel mount
Inlet pressure Vacuum to 24.1 MPa
Intermediate pressure 200 psig (1.4 MPa)
Internal volume 30.6 cm3
Mass 2.27 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 684-685
AP2702S2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2702S2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2702S2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2702S2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2702S2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2702S2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2702S3PWQFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2702S3PWQMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2702S3PWQTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2702S3PWQFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2702S3PWQMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2702S3PWQTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2702S4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2702S4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2702S4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2702S4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2702S4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2702S4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2702S5PWQFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2702S5PWQMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2702S5PWQTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2702S5PWQFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2702S5PWQMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2702S5PWQTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2702SH2PWFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2702SH2PWMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2702SH2PWTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2702SH2PWFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2702SH2PWMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2702SH2PWTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2702SH3PWQFV4FV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2702SH3PWQMV4MV4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2702SH3PWQTW4TW4 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2702SH3PWQFV6FV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2702SH3PWQMV6MV6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2702SH3PWQTW6TW6 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2702SH4PWFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2702SH4PWMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2702SH4PWTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2702SH4PWFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2702SH4PWMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2702SH4PWTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2702SH5PWQFV4FV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2702SH5PWQMV4MV400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2702SH5PWQTW4TW400 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2702SH5PWQFV6FV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2702SH5PWQMV6MV600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2702SH5PWQTW6TW600 Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2706S2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2706S2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2706S2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2706S2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2706S2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2706S2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2706S3PWQFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2706S3PWQMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2706S3PWQTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2706S3PWQFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2706S3PWQMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2706S3PWQTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2706S4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2706S4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2706S4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2706S4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2706S4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2706S4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2706S5PWQFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2706S5PWQMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2706S5PWQTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2706S5PWQFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2706S5PWQMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2706S5PWQTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2706SH2PWFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2706SH2PWMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2706SH2PWTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2706SH2PWFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2706SH2PWMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2706SH2PWTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2706SH3PWQFV4FV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2706SH3PWQMV4MV4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2706SH3PWQTW4TW4 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2706SH3PWQFV6FV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2706SH3PWQMV6MV6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2706SH3PWQTW6TW6 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2706SH4PWFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2706SH4PWMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2706SH4PWTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2706SH4PWFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2706SH4PWMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2706SH4PWTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2706SH5PWQFV4FV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2706SH5PWQMV4MV400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2706SH5PWQTW4TW400 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2706SH5PWQFV6FV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2706SH5PWQMV6MV600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2706SH5PWQTW6TW600 Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2710S2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2710S2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2710S2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2710S2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2710S2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2710S2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2710S3PWQFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2710S3PWQMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2710S3PWQTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2710S3PWQFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2710S3PWQMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2710S3PWQTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2710S4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2710S4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2710S4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2710S4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2710S4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2710S4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2710S5PWQFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2710S5PWQMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2710S5PWQTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2710S5PWQFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2710S5PWQMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2710S5PWQTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2710SH2PWFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2710SH2PWMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2710SH2PWTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2710SH2PWFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2710SH2PWMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2710SH2PWTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2710SH3PWQFV4FV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2710SH3PWQMV4MV4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2710SH3PWQTW4TW4 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2710SH3PWQFV6FV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2710SH3PWQMV6MV6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2710SH3PWQTW6TW6 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2710SH4PWFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2710SH4PWMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2710SH4PWTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2710SH4PWFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2710SH4PWMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2710SH4PWTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2710SH5PWQFV4FV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2710SH5PWQMV4MV400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2710SH5PWQTW4TW400 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2710SH5PWQFV6FV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2710SH5PWQMV6MV600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2710SH5PWQTW6TW600 Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2712S2PWFV4FV4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2712S2PWMV4MV4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2712S2PWTW4TW4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2712S2PWFV6FV6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2712S2PWMV6MV6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2712S2PWTW6TW6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2712S3PWQFV4FV4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2712S3PWQMV4MV4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2712S3PWQTW4TW4 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2712S3PWQFV6FV6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2712S3PWQMV6MV6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2712S3PWQTW6TW6 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2712S4PWFV4FV400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2712S4PWMV4MV400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2712S4PWTW4TW400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2712S4PWFV6FV600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2712S4PWMV6MV600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2712S4PWTW6TW600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2712S5PWQFV4FV400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2712S5PWQMV4MV400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2712S5PWQTW4TW400 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2712S5PWQFV6FV600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2712S5PWQMV6MV600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2712S5PWQTW6TW600 Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2712SH2PWFV4FV4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2712SH2PWMV4MV4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2712SH2PWTW4TW4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2712SH2PWFV6FV6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2712SH2PWMV6MV6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2712SH2PWTW6TW6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2712SH3PWQFV4FV4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2712SH3PWQMV4MV4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2712SH3PWQTW4TW4 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2712SH3PWQFV6FV6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2712SH3PWQMV6MV6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2712SH3PWQTW6TW6 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2712SH4PWFV4FV400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2712SH4PWMV4MV400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2712SH4PWTW4TW400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2712SH4PWFV6FV600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2712SH4PWMV6MV600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2712SH4PWTW6TW600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2712SH5PWQFV4FV400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2712SH5PWQMV4MV400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2712SH5PWQTW4TW400 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2712SH5PWQFV6FV600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2712SH5PWQMV6MV600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2712SH5PWQTW6TW600 Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
RegulatorsSMC
192 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP2700 High-Purity Two-Stage Regulator (Medium Flow, Tied Diaphragm)

Brand SMC·Regulators

Available part numbers (192)

AP2702S2PWFV4FV4, AP2702S2PWMV4MV4, AP2702S2PWTW4TW4, AP2702S2PWFV6FV6, AP2702S2PWMV6MV6, AP2702S2PWTW6TW6, AP2702S3PWQFV4FV4, AP2702S3PWQMV4MV4, AP2702S3PWQTW4TW4, AP2702S3PWQFV6FV6 + 182 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP2702S2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2702S2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2702S2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2702S2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2702S2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2702S2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2702S3PWQFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2702S3PWQMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2702S3PWQTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2702S3PWQFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2702S3PWQMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2702S3PWQTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2702S4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2702S4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2702S4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2702S4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2702S4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2702S4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2702S5PWQFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2702S5PWQMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2702S5PWQTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2702S5PWQFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2702S5PWQMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2702S5PWQTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2702SH2PWFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2702SH2PWMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2702SH2PWTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2702SH2PWFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2702SH2PWMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2702SH2PWTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2702SH3PWQFV4FV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2702SH3PWQMV4MV4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2702SH3PWQTW4TW4Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2702SH3PWQFV6FV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2702SH3PWQMV6MV6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2702SH3PWQTW6TW6Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2702SH4PWFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2702SH4PWMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2702SH4PWTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2702SH4PWFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2702SH4PWMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2702SH4PWTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2702SH5PWQFV4FV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2702SH5PWQMV4MV400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2702SH5PWQTW4TW400Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2702SH5PWQFV6FV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2702SH5PWQMV6MV600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2702SH5PWQTW6TW600Set pressure: 0.007 to 0.2 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2706S2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2706S2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2706S2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2706S2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2706S2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2706S2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2706S3PWQFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2706S3PWQMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2706S3PWQTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2706S3PWQFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2706S3PWQMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2706S3PWQTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2706S4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2706S4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2706S4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2706S4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2706S4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2706S4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2706S5PWQFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2706S5PWQMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2706S5PWQTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2706S5PWQFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2706S5PWQMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2706S5PWQTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2706SH2PWFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2706SH2PWMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2706SH2PWTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2706SH2PWFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2706SH2PWMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2706SH2PWTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2706SH3PWQFV4FV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2706SH3PWQMV4MV4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2706SH3PWQTW4TW4Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2706SH3PWQFV6FV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2706SH3PWQMV6MV6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2706SH3PWQTW6TW6Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2706SH4PWFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2706SH4PWMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2706SH4PWTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2706SH4PWFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2706SH4PWMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2706SH4PWTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2706SH5PWQFV4FV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2706SH5PWQMV4MV400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2706SH5PWQTW4TW400Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2706SH5PWQFV6FV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2706SH5PWQMV6MV600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2706SH5PWQTW6TW600Set pressure: 0.014 to 0.4 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2710S2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2710S2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2710S2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2710S2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2710S2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2710S2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2710S3PWQFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2710S3PWQMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2710S3PWQTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2710S3PWQFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2710S3PWQMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2710S3PWQTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2710S4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2710S4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2710S4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2710S4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2710S4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2710S4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2710S5PWQFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2710S5PWQMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2710S5PWQTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2710S5PWQFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2710S5PWQMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2710S5PWQTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2710SH2PWFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2710SH2PWMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2710SH2PWTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2710SH2PWFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2710SH2PWMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2710SH2PWTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2710SH3PWQFV4FV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2710SH3PWQMV4MV4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2710SH3PWQTW4TW4Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2710SH3PWQFV6FV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2710SH3PWQMV6MV6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2710SH3PWQTW6TW6Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2710SH4PWFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2710SH4PWMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2710SH4PWTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2710SH4PWFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2710SH4PWMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2710SH4PWTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2710SH5PWQFV4FV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2710SH5PWQMV4MV400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2710SH5PWQTW4TW400Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2710SH5PWQFV6FV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2710SH5PWQMV6MV600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2710SH5PWQTW6TW600Set pressure: 0.014 to 0.7 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2712S2PWFV4FV4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal female
AP2712S2PWMV4MV4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 face seal male
AP2712S2PWTW4TW4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 1/4 tube weld
AP2712S2PWFV6FV6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal female
AP2712S2PWMV6MV6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 face seal male
AP2712S2PWTW6TW6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 2 ports | Connection: 3/8 tube weld
AP2712S3PWQFV4FV4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2712S3PWQMV4MV4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2712S3PWQTW4TW4Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2712S3PWQFV6FV6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2712S3PWQMV6MV6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2712S3PWQTW6TW6Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2712S4PWFV4FV400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2712S4PWMV4MV400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2712S4PWTW4TW400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2712S4PWFV6FV600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2712S4PWMV6MV600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2712S4PWTW6TW600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2712S5PWQFV4FV400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2712S5PWQMV4MV400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2712S5PWQTW4TW400Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2712S5PWQFV6FV600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2712S5PWQMV6MV600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2712S5PWQTW6TW600Set pressure: 0.021 to 0.8 MPa | Material: SUS316L (standard) | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld
AP2712SH2PWFV4FV4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal female
AP2712SH2PWMV4MV4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 face seal male
AP2712SH2PWTW4TW4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 1/4 tube weld
AP2712SH2PWFV6FV6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal female
AP2712SH2PWMV6MV6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 face seal male
AP2712SH2PWTW6TW6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 2 ports | Connection: 3/8 tube weld
AP2712SH3PWQFV4FV4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal female
AP2712SH3PWQMV4MV4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 face seal male
AP2712SH3PWQTW4TW4Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 1/4 tube weld
AP2712SH3PWQFV6FV6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal female
AP2712SH3PWQMV6MV6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 face seal male
AP2712SH3PWQTW6TW6Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 3 ports (MP gauge port) | Connection: 3/8 tube weld
AP2712SH4PWFV4FV400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal female
AP2712SH4PWMV4MV400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 face seal male
AP2712SH4PWTW4TW400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 1/4 tube weld
AP2712SH4PWFV6FV600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal female
AP2712SH4PWMV6MV600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 face seal male
AP2712SH4PWTW6TW600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 4 ports (IN + OUT gauge) | Connection: 3/8 tube weld
AP2712SH5PWQFV4FV400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal female
AP2712SH5PWQMV4MV400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 face seal male
AP2712SH5PWQTW4TW400Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 1/4 tube weld
AP2712SH5PWQFV6FV600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal female
AP2712SH5PWQMV6MV600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 face seal male
AP2712SH5PWQTW6TW600Set pressure: 0.021 to 0.8 MPa | Material: Ni-Cr-Mo poppet/diaphragm | Ports: 5 ports (IN/OUT gauge + MP) | Connection: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
