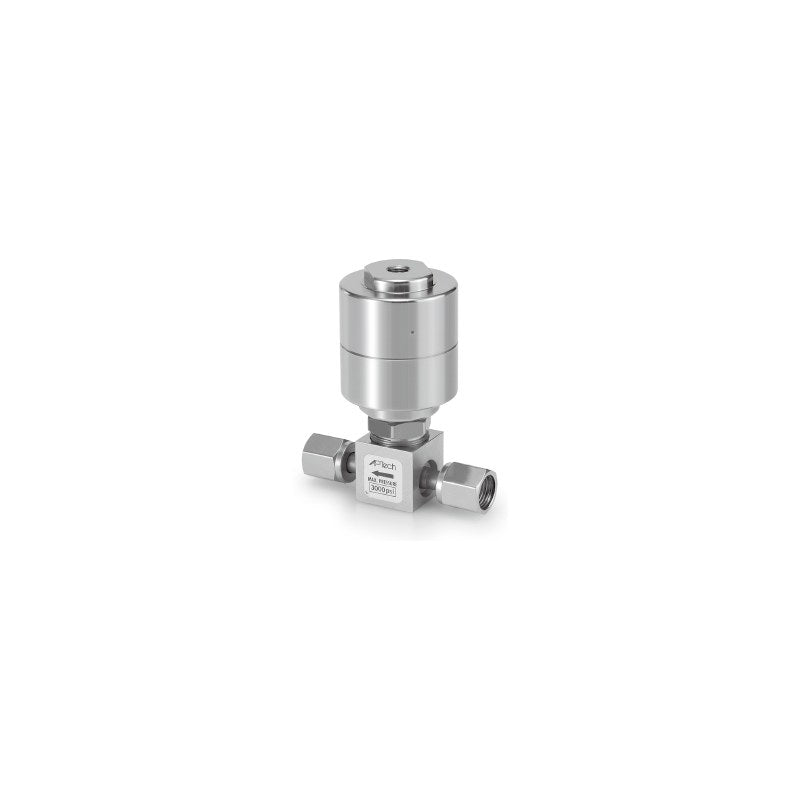

SMC AP3000 High-Purity Diaphragm Valve (Air-Operated, High Pressure)

SMC AP3000 High-Purity Diaphragm Valve (Air-Operated, High Pressure)

SMC AP3000 series air-operated normally closed high-purity diaphragm valve rated for working pressure up to 20.7 MPa.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; Ni-Co alloy diaphragm, PCTFE seat (polyimide VS option)
  • Air-operated N.C.; working pressure vacuum to 3000 psig (20.7 MPa)
  • AP3000 Cv 0.23, AP3002 Cv 0.28
  • 1/4 or 3/8 face seal (female/male) or tube weld connections; body S or H (Ni-Cr-Mo)
  • LOTO ready; indicator switch option IS
  • Port count/position variants, face-to-face 1.75 in (TW4), VS seat and indicator switch / LOTO options are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Mounting Bottom mount
Working pressure Vacuum to 20.7 MPa
Operating pressure 0.48 to 0.76 MPa
Ambient and fluid temperature -10 to 71 C
Mass 1.27 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP3000_4000.pdf), p. 762-763
AP3000S2PWFV4FV4 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3000S2PWMV4MV4 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3000S2PWTW4TW4 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 tube weld
AP3000S2PWFV6FV6 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 face seal female
AP3000S2PWMV6MV6 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 face seal male
AP3000S2PWTW6TW6 Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3000H2PWFV4FV4 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3000H2PWMV4MV4 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3000H2PWTW4TW4 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 tube weld
AP3000H2PWFV6FV6 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal female
AP3000H2PWMV6MV6 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal male
AP3000H2PWTW6TW6 Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3002S2PWFV4FV4 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3002S2PWMV4MV4 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3002S2PWTW4TW4 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 tube weld
AP3002S2PWFV6FV6 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 face seal female
AP3002S2PWMV6MV6 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 face seal male
AP3002S2PWTW6TW6 Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3002H2PWFV4FV4 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3002H2PWMV4MV4 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3002H2PWTW4TW4 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 tube weld
AP3002H2PWFV6FV6 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal female
AP3002H2PWMV6MV6 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal male
AP3002H2PWTW6TW6 Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
2-Port ValvesSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP3000 High-Purity Diaphragm Valve (Air-Operated, High Pressure)

Brand SMC·2-Port Valves

Available part numbers (24)

AP3000S2PWFV4FV4, AP3000S2PWMV4MV4, AP3000S2PWTW4TW4, AP3000S2PWFV6FV6, AP3000S2PWMV6MV6, AP3000S2PWTW6TW6, AP3000H2PWFV4FV4, AP3000H2PWMV4MV4, AP3000H2PWTW4TW4, AP3000H2PWFV6FV6 + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP3000S2PWFV4FV4Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3000S2PWMV4MV4Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3000S2PWTW4TW4Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 1/4 tube weld
AP3000S2PWFV6FV6Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 face seal female
AP3000S2PWMV6MV6Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 face seal male
AP3000S2PWTW6TW6Type: N.C., Cv 0.23 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3000H2PWFV4FV4Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3000H2PWMV4MV4Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3000H2PWTW4TW4Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 tube weld
AP3000H2PWFV6FV6Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal female
AP3000H2PWMV6MV6Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal male
AP3000H2PWTW6TW6Type: N.C., Cv 0.23 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3002S2PWFV4FV4Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3002S2PWMV4MV4Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3002S2PWTW4TW4Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 1/4 tube weld
AP3002S2PWFV6FV6Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 face seal female
AP3002S2PWMV6MV6Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 face seal male
AP3002S2PWTW6TW6Type: N.C., Cv 0.28 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3002H2PWFV4FV4Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3002H2PWMV4MV4Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3002H2PWTW4TW4Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 tube weld
AP3002H2PWFV6FV6Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal female
AP3002H2PWMV6MV6Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 face seal male
AP3002H2PWTW6TW6Type: N.C., Cv 0.28 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
