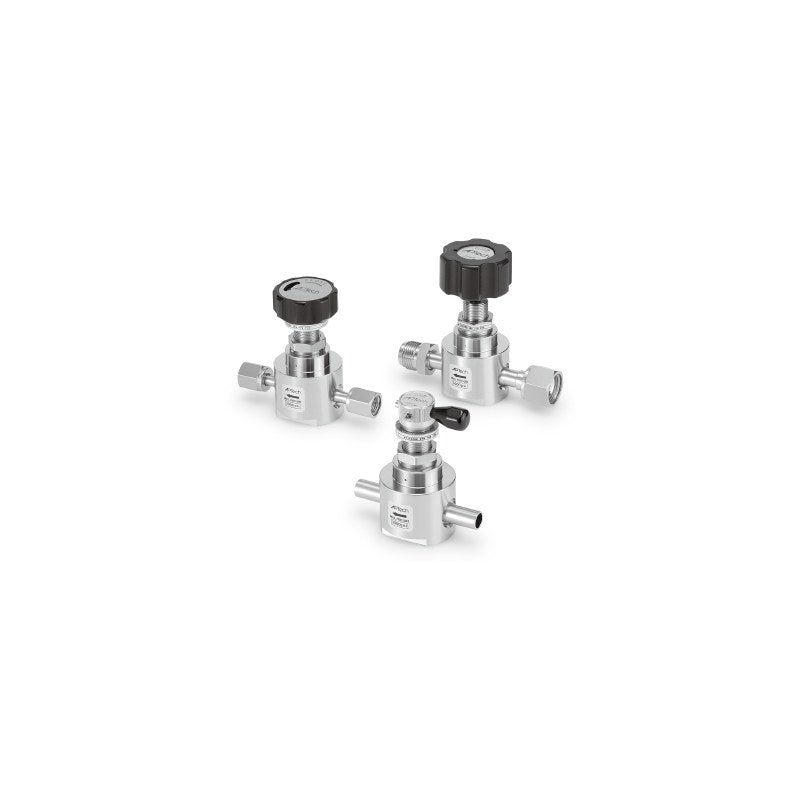

SMC AP3100 High-Purity Diaphragm Valve (Manual, High Pressure, High Flow)

SMC AP3100 High-Purity Diaphragm Valve (Manual, High Pressure, High Flow)

SMC AP3100 series manual high-purity diaphragm valve for high-pressure (20.7 MPa or 9 MPa) and bulk gas lines, with a choice of handles.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; Ni-Co alloy diaphragm, PCTFE seat (polyimide VS option)
  • Manual; AP3100/AP3125 up to 3000 psig (20.7 MPa), AP3102/AP3150/AP3157 up to 1300 psig (9.0 MPa)
  • Cv 0.7 (AP3100), 1.3 (AP3102), 1.0 (AP3125/3150/3157)
  • 1/4 face seal, 3/8 tube weld, 1/2 and 3/4 face seal or tube weld connections; body S or H (Ni-Cr-Mo)
  • LOTO standard on AP3157; indicator switch option ISH (AP3150)

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Mounting Bottom mount
Ambient and fluid temperature -40 to 65 C
Internal volume 6.0 cm3
Mass 1.27 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP3000_4000.pdf), p. 776-777
AP3100S2PWFV4FV4 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3100S2PWMV4MV4 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3100S2PWTW6TW6 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3100S2PWFV8FV8 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3100S2PWMV8MV8 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3100S2PWTW8TW8 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3100S2PWFV12FV12 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3100S2PWMV12MV12 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3100S2PWTW12TW12 Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3100H2PWFV4FV4 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3100H2PWMV4MV4 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3100H2PWTW6TW6 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3100H2PWFV8FV8 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3100H2PWMV8MV8 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3100H2PWTW8TW8 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3100H2PWFV12FV12 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3100H2PWMV12MV12 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3100H2PWTW12TW12 Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3102S2PWFV4FV4 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3102S2PWMV4MV4 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3102S2PWTW6TW6 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3102S2PWFV8FV8 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3102S2PWMV8MV8 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3102S2PWTW8TW8 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3102S2PWFV12FV12 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3102S2PWMV12MV12 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3102S2PWTW12TW12 Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3102H2PWFV4FV4 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3102H2PWMV4MV4 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3102H2PWTW6TW6 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3102H2PWFV8FV8 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3102H2PWMV8MV8 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3102H2PWTW8TW8 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3102H2PWFV12FV12 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3102H2PWMV12MV12 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3102H2PWTW12TW12 Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3125S2PWFV4FV4 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3125S2PWMV4MV4 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3125S2PWTW6TW6 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3125S2PWFV8FV8 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3125S2PWMV8MV8 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3125S2PWTW8TW8 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3125S2PWFV12FV12 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3125S2PWMV12MV12 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3125S2PWTW12TW12 Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3125H2PWFV4FV4 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3125H2PWMV4MV4 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3125H2PWTW6TW6 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3125H2PWFV8FV8 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3125H2PWMV8MV8 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3125H2PWTW8TW8 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3125H2PWFV12FV12 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3125H2PWMV12MV12 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3125H2PWTW12TW12 Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3150S2PWFV4FV4 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3150S2PWMV4MV4 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3150S2PWTW6TW6 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3150S2PWFV8FV8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3150S2PWMV8MV8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3150S2PWTW8TW8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3150S2PWFV12FV12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3150S2PWMV12MV12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3150S2PWTW12TW12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3150H2PWFV4FV4 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3150H2PWMV4MV4 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3150H2PWTW6TW6 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3150H2PWFV8FV8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3150H2PWMV8MV8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3150H2PWTW8TW8 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3150H2PWFV12FV12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3150H2PWMV12MV12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3150H2PWTW12TW12 Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3157S2PWFV4FV4 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3157S2PWMV4MV4 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3157S2PWTW6TW6 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3157S2PWFV8FV8 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3157S2PWMV8MV8 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3157S2PWTW8TW8 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3157S2PWFV12FV12 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3157S2PWMV12MV12 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3157S2PWTW12TW12 Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3157H2PWFV4FV4 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3157H2PWMV4MV4 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3157H2PWTW6TW6 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3157H2PWFV8FV8 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3157H2PWMV8MV8 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3157H2PWTW8TW8 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3157H2PWFV12FV12 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3157H2PWMV12MV12 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3157H2PWTW12TW12 Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
2-Port ValvesSMC
90 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP3100 High-Purity Diaphragm Valve (Manual, High Pressure, High Flow)

Brand SMC·2-Port Valves

Available part numbers (90)

AP3100S2PWFV4FV4, AP3100S2PWMV4MV4, AP3100S2PWTW6TW6, AP3100S2PWFV8FV8, AP3100S2PWMV8MV8, AP3100S2PWTW8TW8, AP3100S2PWFV12FV12, AP3100S2PWMV12MV12, AP3100S2PWTW12TW12, AP3100H2PWFV4FV4 + 80 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP3100S2PWFV4FV4Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3100S2PWMV4MV4Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3100S2PWTW6TW6Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3100S2PWFV8FV8Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3100S2PWMV8MV8Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3100S2PWTW8TW8Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3100S2PWFV12FV12Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3100S2PWMV12MV12Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3100S2PWTW12TW12Type: Round multi-turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3100H2PWFV4FV4Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3100H2PWMV4MV4Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3100H2PWTW6TW6Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3100H2PWFV8FV8Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3100H2PWMV8MV8Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3100H2PWTW8TW8Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3100H2PWFV12FV12Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3100H2PWMV12MV12Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3100H2PWTW12TW12Type: Round multi-turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3102S2PWFV4FV4Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3102S2PWMV4MV4Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3102S2PWTW6TW6Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3102S2PWFV8FV8Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3102S2PWMV8MV8Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3102S2PWTW8TW8Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3102S2PWFV12FV12Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3102S2PWMV12MV12Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3102S2PWTW12TW12Type: Round multi-turn, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3102H2PWFV4FV4Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3102H2PWMV4MV4Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3102H2PWTW6TW6Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3102H2PWFV8FV8Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3102H2PWMV8MV8Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3102H2PWTW8TW8Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3102H2PWFV12FV12Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3102H2PWMV12MV12Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3102H2PWTW12TW12Type: Round multi-turn, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3125S2PWFV4FV4Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3125S2PWMV4MV4Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3125S2PWTW6TW6Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3125S2PWFV8FV8Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3125S2PWMV8MV8Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3125S2PWTW8TW8Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3125S2PWFV12FV12Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3125S2PWMV12MV12Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3125S2PWTW12TW12Type: Lever 1/4 turn, 20.7 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3125H2PWFV4FV4Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3125H2PWMV4MV4Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3125H2PWTW6TW6Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3125H2PWFV8FV8Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3125H2PWMV8MV8Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3125H2PWTW8TW8Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3125H2PWFV12FV12Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3125H2PWMV12MV12Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3125H2PWTW12TW12Type: Lever 1/4 turn, 20.7 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3150S2PWFV4FV4Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3150S2PWMV4MV4Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3150S2PWTW6TW6Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3150S2PWFV8FV8Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3150S2PWMV8MV8Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3150S2PWTW8TW8Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3150S2PWFV12FV12Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3150S2PWMV12MV12Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3150S2PWTW12TW12Type: Round 1/4 turn indicator, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3150H2PWFV4FV4Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3150H2PWMV4MV4Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3150H2PWTW6TW6Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3150H2PWFV8FV8Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3150H2PWMV8MV8Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3150H2PWTW8TW8Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3150H2PWFV12FV12Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3150H2PWMV12MV12Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3150H2PWTW12TW12Type: Round 1/4 turn indicator, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3157S2PWFV4FV4Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3157S2PWMV4MV4Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3157S2PWTW6TW6Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3157S2PWFV8FV8Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3157S2PWMV8MV8Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3157S2PWTW8TW8Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3157S2PWFV12FV12Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3157S2PWMV12MV12Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3157S2PWTW12TW12Type: Flat round LOTO, 9.0 MPa | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3157H2PWFV4FV4Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3157H2PWMV4MV4Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3157H2PWTW6TW6Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3157H2PWFV8FV8Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3157H2PWMV8MV8Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3157H2PWTW8TW8Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3157H2PWFV12FV12Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3157H2PWMV12MV12Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3157H2PWTW12TW12Type: Flat round LOTO, 9.0 MPa | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
