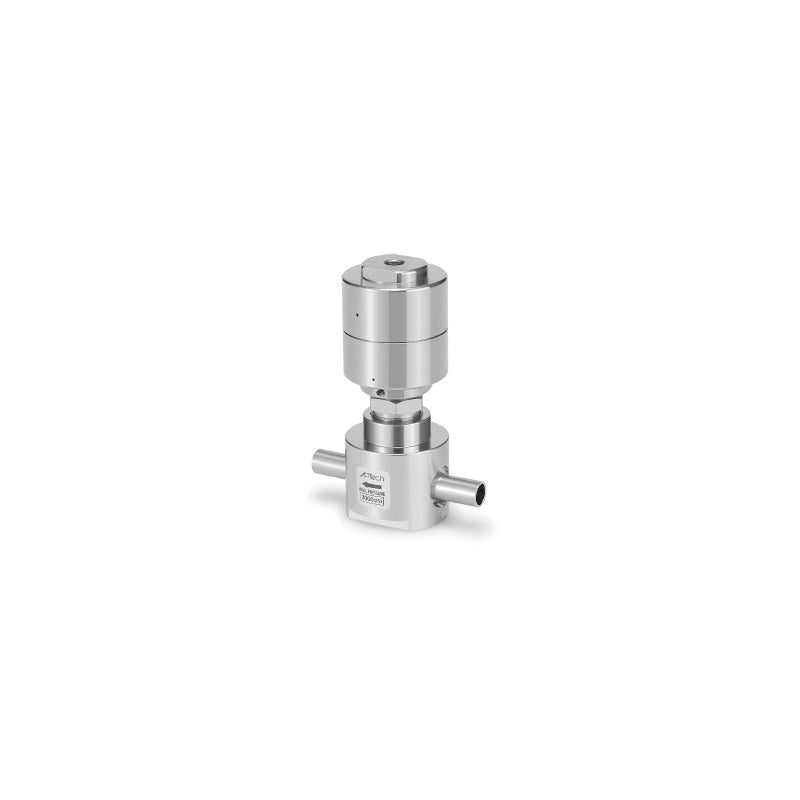

SMC AP3130 / AP3113 High-Purity Diaphragm Valve (Air-Operated, High Flow)

SMC AP3130 / AP3113 High-Purity Diaphragm Valve (Air-Operated, High Flow)

SMC AP3130 and AP3113 series air-operated normally closed high-purity diaphragm valves for high-pressure, high-flow and bulk gas lines.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; Ni-Co alloy diaphragm, PCTFE seat (polyimide VS option)
  • Air-operated N.C.; AP3113 up to 9.0 MPa (Cv 1.0), AP3130 up to 20.7 MPa (Cv 0.7)
  • Suitable for bulk gas supply
  • 1/4 face seal, 3/8 tube weld, 1/2 and 3/4 face seal or tube weld connections; body S or H (Ni-Cr-Mo)
  • LOTO ready; indicator switch option IS
  • Port count/position variants, face-to-face 1.75 in (TW4), VS seat and indicator switch / LOTO options are ordered as suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Mounting Bottom mount
Operating pressure 0.48 to 0.76 MPa
Ambient and fluid temperature -10 to 65 C
Internal volume 6.0 cm3
Mass 1.27 kg
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP3000_4000.pdf), p. 764-765
AP3113S2PWFV4FV4 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3113S2PWMV4MV4 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3113S2PWTW6TW6 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3113S2PWFV8FV8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3113S2PWMV8MV8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3113S2PWTW8TW8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3113S2PWFV12FV12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3113S2PWMV12MV12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3113S2PWTW12TW12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3113H2PWFV4FV4 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3113H2PWMV4MV4 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3113H2PWTW6TW6 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3113H2PWFV8FV8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3113H2PWMV8MV8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3113H2PWTW8TW8 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3113H2PWFV12FV12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3113H2PWMV12MV12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3113H2PWTW12TW12 Type: N.C., 9.0 MPa, Cv 1.0 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
AP3130S2PWFV4FV4 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 1/4 face seal female
AP3130S2PWMV4MV4 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 1/4 face seal male
AP3130S2PWTW6TW6 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 3/8 tube weld
AP3130S2PWFV8FV8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 1/2 face seal female
AP3130S2PWMV8MV8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 1/2 face seal male
AP3130S2PWTW8TW8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 1/2 tube weld
AP3130S2PWFV12FV12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 3/4 face seal female
AP3130S2PWMV12MV12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 3/4 face seal male
AP3130S2PWTW12TW12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: SUS316L double melt | Connection: 3/4 tube weld
AP3130H2PWFV4FV4 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal female
AP3130H2PWMV4MV4 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 1/4 face seal male
AP3130H2PWTW6TW6 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 3/8 tube weld
AP3130H2PWFV8FV8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal female
AP3130H2PWMV8MV8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 face seal male
AP3130H2PWTW8TW8 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 1/2 tube weld
AP3130H2PWFV12FV12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal female
AP3130H2PWMV12MV12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 face seal male
AP3130H2PWTW12TW12 Type: N.C., 20.7 MPa, Cv 0.7 | Body: Ni-Cr-Mo alloy body | Connection: 3/4 tube weld
