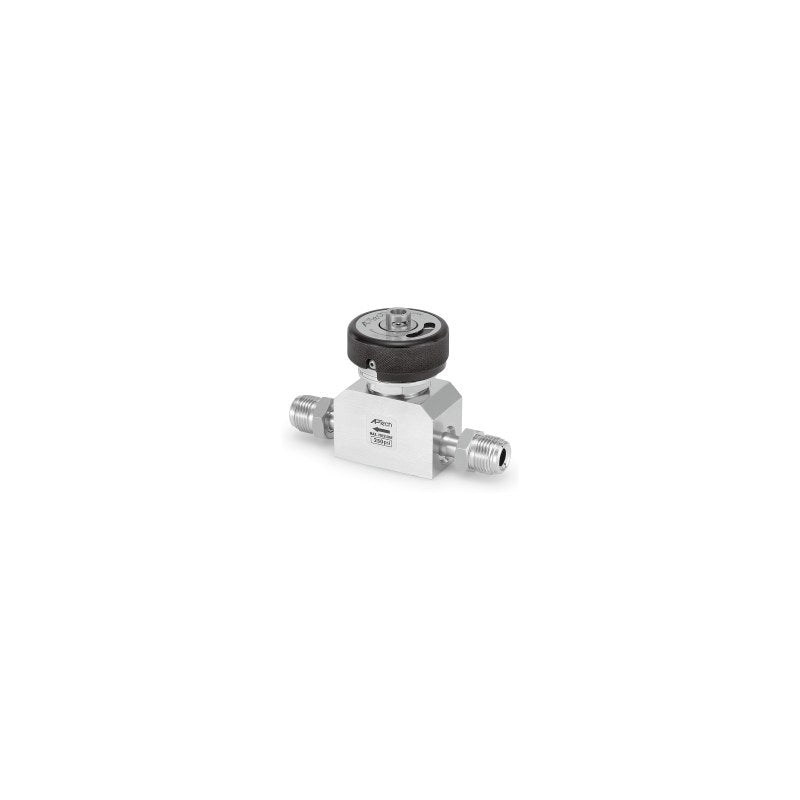

SMC AP3800 / AP3900 High-Purity Diaphragm Valve (Manual, Purge Port)

SMC AP3800 / AP3900 High-Purity Diaphragm Valve (Manual, Purge Port)

SMC AP3800 and AP3900 series manual high-flow (Cv 2.8) high-purity diaphragm valves with optional purge ports in a monoblock body.

Key features

  • High-purity SUS316L double-melt body, electropolished and passivated; Ni-Co alloy diaphragm, PCTFE seat (polyimide VS option)
  • Manual; Cv 2.8; working pressure vacuum to 250 psig (1.7 MPa)
  • AP3800 round handle with open/close indicator; AP3900 flat round handle with LOTO
  • Monoblock body with purge ports (1/4 face seal male) on inlet and/or outlet side
  • 3/8 tube weld, 1/2 and 3/4 face seal or tube weld connections; purge cap C and VS seat are suffixes

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Internal finish Ra max 0.4 um (options 0.25/0.18/0.13 um)
Mounting Bottom mount
Working pressure Vacuum to 1.7 MPa
Ambient and fluid temperature -40 to 71 C
Cv 2.8
Internal volume 12.52 cm3
Body SUS316L double melt
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP3000_4000.pdf), p. 778-779
AP3800STW6TW600 Type: Round handle, indicator | Connection: 3/8 tube weld | Purge ports: none
AP3800STW6TW6M0 Type: Round handle, indicator | Connection: 3/8 tube weld | Purge ports: inlet side
AP3800STW6TW60B Type: Round handle, indicator | Connection: 3/8 tube weld | Purge ports: outlet side
AP3800STW6TW6MB Type: Round handle, indicator | Connection: 3/8 tube weld | Purge ports: inlet and outlet
AP3800SFV8FV800 Type: Round handle, indicator | Connection: 1/2 face seal female | Purge ports: none
AP3800SFV8FV8M0 Type: Round handle, indicator | Connection: 1/2 face seal female | Purge ports: inlet side
AP3800SFV8FV80B Type: Round handle, indicator | Connection: 1/2 face seal female | Purge ports: outlet side
AP3800SFV8FV8MB Type: Round handle, indicator | Connection: 1/2 face seal female | Purge ports: inlet and outlet
AP3800SMV8MV800 Type: Round handle, indicator | Connection: 1/2 face seal male | Purge ports: none
AP3800SMV8MV8M0 Type: Round handle, indicator | Connection: 1/2 face seal male | Purge ports: inlet side
AP3800SMV8MV80B Type: Round handle, indicator | Connection: 1/2 face seal male | Purge ports: outlet side
AP3800SMV8MV8MB Type: Round handle, indicator | Connection: 1/2 face seal male | Purge ports: inlet and outlet
AP3800STW8TW800 Type: Round handle, indicator | Connection: 1/2 tube weld | Purge ports: none
AP3800STW8TW8M0 Type: Round handle, indicator | Connection: 1/2 tube weld | Purge ports: inlet side
AP3800STW8TW80B Type: Round handle, indicator | Connection: 1/2 tube weld | Purge ports: outlet side
AP3800STW8TW8MB Type: Round handle, indicator | Connection: 1/2 tube weld | Purge ports: inlet and outlet
AP3800SFV12FV1200 Type: Round handle, indicator | Connection: 3/4 face seal female | Purge ports: none
AP3800SFV12FV12M0 Type: Round handle, indicator | Connection: 3/4 face seal female | Purge ports: inlet side
AP3800SFV12FV120B Type: Round handle, indicator | Connection: 3/4 face seal female | Purge ports: outlet side
AP3800SFV12FV12MB Type: Round handle, indicator | Connection: 3/4 face seal female | Purge ports: inlet and outlet
AP3800SMV12MV1200 Type: Round handle, indicator | Connection: 3/4 face seal male | Purge ports: none
AP3800SMV12MV12M0 Type: Round handle, indicator | Connection: 3/4 face seal male | Purge ports: inlet side
AP3800SMV12MV120B Type: Round handle, indicator | Connection: 3/4 face seal male | Purge ports: outlet side
AP3800SMV12MV12MB Type: Round handle, indicator | Connection: 3/4 face seal male | Purge ports: inlet and outlet
AP3800STW12TW1200 Type: Round handle, indicator | Connection: 3/4 tube weld | Purge ports: none
AP3800STW12TW12M0 Type: Round handle, indicator | Connection: 3/4 tube weld | Purge ports: inlet side
AP3800STW12TW120B Type: Round handle, indicator | Connection: 3/4 tube weld | Purge ports: outlet side
AP3800STW12TW12MB Type: Round handle, indicator | Connection: 3/4 tube weld | Purge ports: inlet and outlet
AP3900STW6TW600 Type: Flat round handle, LOTO | Connection: 3/8 tube weld | Purge ports: none
AP3900STW6TW6M0 Type: Flat round handle, LOTO | Connection: 3/8 tube weld | Purge ports: inlet side
AP3900STW6TW60B Type: Flat round handle, LOTO | Connection: 3/8 tube weld | Purge ports: outlet side
AP3900STW6TW6MB Type: Flat round handle, LOTO | Connection: 3/8 tube weld | Purge ports: inlet and outlet
AP3900SFV8FV800 Type: Flat round handle, LOTO | Connection: 1/2 face seal female | Purge ports: none
AP3900SFV8FV8M0 Type: Flat round handle, LOTO | Connection: 1/2 face seal female | Purge ports: inlet side
AP3900SFV8FV80B Type: Flat round handle, LOTO | Connection: 1/2 face seal female | Purge ports: outlet side
AP3900SFV8FV8MB Type: Flat round handle, LOTO | Connection: 1/2 face seal female | Purge ports: inlet and outlet
AP3900SMV8MV800 Type: Flat round handle, LOTO | Connection: 1/2 face seal male | Purge ports: none
AP3900SMV8MV8M0 Type: Flat round handle, LOTO | Connection: 1/2 face seal male | Purge ports: inlet side
AP3900SMV8MV80B Type: Flat round handle, LOTO | Connection: 1/2 face seal male | Purge ports: outlet side
AP3900SMV8MV8MB Type: Flat round handle, LOTO | Connection: 1/2 face seal male | Purge ports: inlet and outlet
AP3900STW8TW800 Type: Flat round handle, LOTO | Connection: 1/2 tube weld | Purge ports: none
AP3900STW8TW8M0 Type: Flat round handle, LOTO | Connection: 1/2 tube weld | Purge ports: inlet side
AP3900STW8TW80B Type: Flat round handle, LOTO | Connection: 1/2 tube weld | Purge ports: outlet side
AP3900STW8TW8MB Type: Flat round handle, LOTO | Connection: 1/2 tube weld | Purge ports: inlet and outlet
AP3900SFV12FV1200 Type: Flat round handle, LOTO | Connection: 3/4 face seal female | Purge ports: none
AP3900SFV12FV12M0 Type: Flat round handle, LOTO | Connection: 3/4 face seal female | Purge ports: inlet side
AP3900SFV12FV120B Type: Flat round handle, LOTO | Connection: 3/4 face seal female | Purge ports: outlet side
AP3900SFV12FV12MB Type: Flat round handle, LOTO | Connection: 3/4 face seal female | Purge ports: inlet and outlet
AP3900SMV12MV1200 Type: Flat round handle, LOTO | Connection: 3/4 face seal male | Purge ports: none
AP3900SMV12MV12M0 Type: Flat round handle, LOTO | Connection: 3/4 face seal male | Purge ports: inlet side
AP3900SMV12MV120B Type: Flat round handle, LOTO | Connection: 3/4 face seal male | Purge ports: outlet side
AP3900SMV12MV12MB Type: Flat round handle, LOTO | Connection: 3/4 face seal male | Purge ports: inlet and outlet
AP3900STW12TW1200 Type: Flat round handle, LOTO | Connection: 3/4 tube weld | Purge ports: none
AP3900STW12TW12M0 Type: Flat round handle, LOTO | Connection: 3/4 tube weld | Purge ports: inlet side
AP3900STW12TW120B Type: Flat round handle, LOTO | Connection: 3/4 tube weld | Purge ports: outlet side
AP3900STW12TW12MB Type: Flat round handle, LOTO | Connection: 3/4 tube weld | Purge ports: inlet and outlet
2-Port ValvesSMC
56 product codes available in this family
