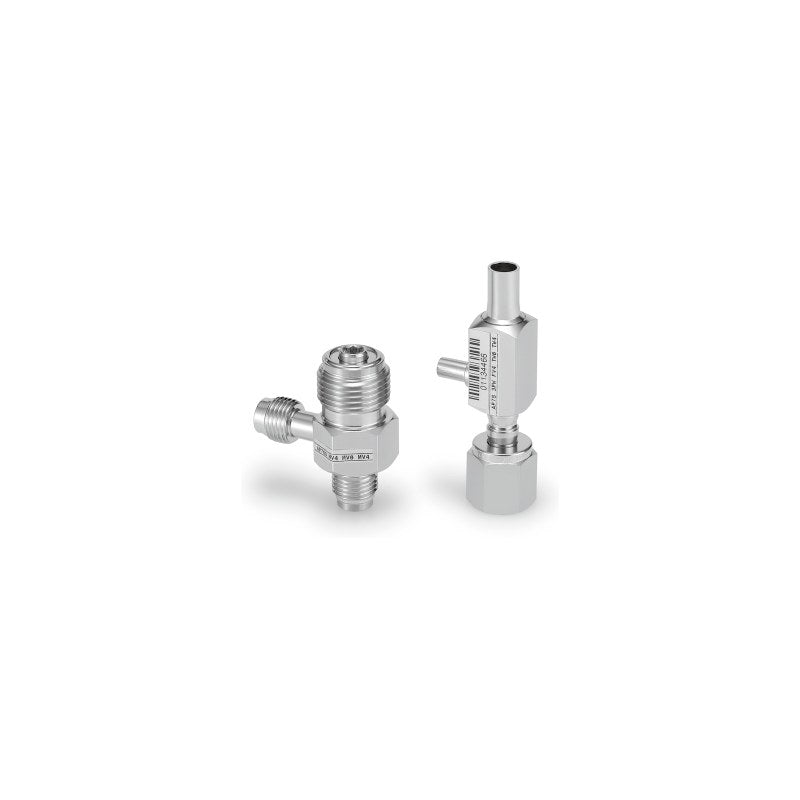

SMC AP7 / AP70 Vacuum Generator (N2 Driven, Face Seal)

SMC AP7 / AP70 Vacuum Generator (N2 Driven, Face Seal)

SMC AP7 and AP70 series nitrogen-driven vacuum generators (ejectors) in SUS316L for evacuating process gas lines, reaching -88 kPa.

Key features

  • N2-driven ejector reaching -26 in.Hg (-88 kPa) at 70-110 psig (0.48-0.76 MPa) supply
  • AP70: compact, high-performance body with fixed 1/4 inlet and 3/8 exhaust face seal
  • AP7: fitting type, every port selectable (1/4 or 3/8 face seal female/male or tube weld)
  • SUS316L body; vacuum side rated to 3500 psig (24.1 MPa)
  • Good exhaust characteristics for purge and cylinder-change sequences

Specifications

Supply fluid Nitrogen
Vacuum-side fluid Gases that do not corrode wetted parts
N2 inlet pressure 0.48 to 0.76 MPa (70-110 psig)
Max. vacuum -88 kPa (-26 in.Hg)
Body material SUS316L
Vacuum-side max. pressure 24.1 MPa
Ambient and fluid temperature -40 to 71 C
Mass 0.11 kg (AP7), 0.13 kg (AP70)
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP70.pdf), p. 788-789
AP70SMV4MV6FV4 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP70SMV4MV6MV4 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP70SMV4MV6TW4 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP70SMV4MV6FV6 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP70SMV4MV6MV6 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP70SMV4MV6TW6 Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4FV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV4FV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV4FV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV4FV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV4FV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV4FV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV4MV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV4MV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV4MV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV4MV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV4MV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV4MV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4TW4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV4TW4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV4TW4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV4TW4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV4TW4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV4TW4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV4FV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV4FV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV4FV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV4FV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV4FV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV4FV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV4MV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV4MV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV4MV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV4MV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV4MV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV4MV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4TW6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV4TW6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV4TW6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV4TW6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV4TW6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV4TW6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV4FV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV4FV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV4FV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV4FV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV4FV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV4FV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV4MV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV4MV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV4MV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV4MV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV4MV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV4MV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV4TW4FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV4TW4MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV4TW4TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV4TW4FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV4TW4MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV4TW4TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV4FV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV4FV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV4FV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV4FV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV4FV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV4FV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV4MV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV4MV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV4MV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV4MV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV4MV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV4MV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV4TW6FV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV4TW6MV4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV4TW6TW4 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV4TW6FV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV4TW6MV6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV4TW6TW6 Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW4FV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW4FV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW4FV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW4FV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW4FV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW4FV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW4MV4FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW4MV4MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW4MV4TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW4MV4FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW4MV4MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW4MV4TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW4TW4FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW4TW4MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW4TW4TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW4TW4FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW4TW4MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW4TW4TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW4FV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW4FV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW4FV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW4FV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW4FV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW4FV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW4MV6FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW4MV6MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW4MV6TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW4MV6FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW4MV6MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW4MV6TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW4TW6FV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW4TW6MV4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW4TW6TW4 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW4TW6FV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW4TW6MV6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW4TW6TW6 Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV6FV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV6FV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV6FV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV6FV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV6FV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV6FV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV6MV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV6MV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV6MV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV6MV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV6MV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV6MV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV6TW4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV6TW4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV6TW4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV6TW4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV6TW4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV6TW4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV6FV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV6FV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV6FV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV6FV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV6FV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV6FV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV6MV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV6MV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV6MV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV6MV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV6MV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV6MV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV6TW6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV6TW6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV6TW6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV6TW6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV6TW6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV6TW6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV6FV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV6FV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV6FV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV6FV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV6FV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV6FV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV6MV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV6MV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV6MV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV6MV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV6MV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV6MV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV6TW4FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV6TW4MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV6TW4TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV6TW4FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV6TW4MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV6TW4TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV6FV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV6FV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV6FV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV6FV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV6FV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV6FV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV6MV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV6MV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV6MV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV6MV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV6MV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV6MV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV6TW6FV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV6TW6MV4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV6TW6TW4 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV6TW6FV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV6TW6MV6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV6TW6TW6 Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW6FV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW6FV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW6FV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW6FV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW6FV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW6FV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW6MV4FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW6MV4MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW6MV4TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW6MV4FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW6MV4MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW6MV4TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW6TW4FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW6TW4MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW6TW4TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW6TW4FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW6TW4MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW6TW4TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW6FV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW6FV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW6FV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW6FV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW6FV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW6FV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW6MV6FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW6MV6MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW6MV6TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW6MV6FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW6MV6MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW6MV6TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW6TW6FV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW6TW6MV4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW6TW6TW4 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW6TW6FV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW6TW6MV6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW6TW6TW6 Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
Vacuum EjectorsSMC
222 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AP7 / AP70 Vacuum Generator (N2 Driven, Face Seal)

Brand SMC·Vacuum Ejectors

Available part numbers (222)

AP70SMV4MV6FV4, AP70SMV4MV6MV4, AP70SMV4MV6TW4, AP70SMV4MV6FV6, AP70SMV4MV6MV6, AP70SMV4MV6TW6, AP7S3PWFV4FV4FV4, AP7S3PWFV4FV4MV4, AP7S3PWFV4FV4TW4, AP7S3PWFV4FV4FV6 + 212 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AP70SMV4MV6FV4Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP70SMV4MV6MV4Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP70SMV4MV6TW4Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP70SMV4MV6FV6Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP70SMV4MV6MV6Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP70SMV4MV6TW6Model: AP70 compact | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4FV4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV4FV4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV4FV4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV4FV4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV4FV4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV4FV4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV4MV4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV4MV4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV4MV4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV4MV4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV4MV4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV4MV4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4TW4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV4TW4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV4TW4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV4TW4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV4TW4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV4TW4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV4FV6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV4FV6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV4FV6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV4FV6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV4FV6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV4FV6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV4MV6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV4MV6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV4MV6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV4MV6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV4MV6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV4MV6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV4TW6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV4TW6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV4TW6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV4TW6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV4TW6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV4TW6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV4FV4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV4FV4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV4FV4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV4FV4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV4FV4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV4FV4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV4MV4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV4MV4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV4MV4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV4MV4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV4MV4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV4MV4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV4TW4FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV4TW4MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV4TW4TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV4TW4FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV4TW4MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV4TW4TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV4FV6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV4FV6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV4FV6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV4FV6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV4FV6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV4FV6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV4MV6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV4MV6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV4MV6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV4MV6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV4MV6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV4MV6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV4TW6FV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV4TW6MV4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV4TW6TW4Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV4TW6FV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV4TW6MV6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV4TW6TW6Model: AP7 fitting type | Inlet N2: 1/4 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW4FV4FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW4FV4MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW4FV4TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW4FV4FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW4FV4MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW4FV4TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW4MV4FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW4MV4MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW4MV4TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW4MV4FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW4MV4MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW4MV4TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW4TW4FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW4TW4MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW4TW4TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW4TW4FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW4TW4MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW4TW4TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW4FV6FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW4FV6MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW4FV6TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW4FV6FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW4FV6MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW4FV6TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW4MV6FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW4MV6MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW4MV6TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW4MV6FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW4MV6MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW4MV6TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW4TW6FV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW4TW6MV4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW4TW6TW4Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW4TW6FV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW4TW6MV6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW4TW6TW6Model: AP7 fitting type | Inlet N2: 1/4 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV6FV4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV6FV4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV6FV4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV6FV4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV6FV4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV6FV4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV6MV4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV6MV4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV6MV4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV6MV4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV6MV4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV6MV4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV6TW4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV6TW4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV6TW4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV6TW4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV6TW4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV6TW4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWFV6FV6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWFV6FV6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWFV6FV6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWFV6FV6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWFV6FV6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWFV6FV6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWFV6MV6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWFV6MV6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWFV6MV6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWFV6MV6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWFV6MV6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWFV6MV6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWFV6TW6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWFV6TW6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWFV6TW6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWFV6TW6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWFV6TW6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWFV6TW6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal female | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV6FV4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV6FV4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV6FV4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV6FV4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV6FV4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV6FV4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV6MV4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV6MV4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV6MV4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV6MV4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV6MV4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV6MV4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV6TW4FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV6TW4MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV6TW4TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV6TW4FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV6TW4MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV6TW4TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWMV6FV6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWMV6FV6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWMV6FV6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWMV6FV6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWMV6FV6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWMV6FV6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWMV6MV6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWMV6MV6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWMV6MV6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWMV6MV6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWMV6MV6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWMV6MV6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWMV6TW6FV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWMV6TW6MV4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWMV6TW6TW4Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWMV6TW6FV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWMV6TW6MV6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWMV6TW6TW6Model: AP7 fitting type | Inlet N2: 3/8 face seal male | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW6FV4FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW6FV4MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW6FV4TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW6FV4FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW6FV4MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW6FV4TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW6MV4FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW6MV4MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW6MV4TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW6MV4FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW6MV4MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW6MV4TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW6TW4FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW6TW4MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW6TW4TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW6TW4FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW6TW4MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW6TW4TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 1/4 tube weld | Vacuum port: 3/8 tube weld
AP7S3PWTW6FV6FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal female
AP7S3PWTW6FV6MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 face seal male
AP7S3PWTW6FV6TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 1/4 tube weld
AP7S3PWTW6FV6FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal female
AP7S3PWTW6FV6MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 face seal male
AP7S3PWTW6FV6TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal female | Vacuum port: 3/8 tube weld
AP7S3PWTW6MV6FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal female
AP7S3PWTW6MV6MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 face seal male
AP7S3PWTW6MV6TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 1/4 tube weld
AP7S3PWTW6MV6FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal female
AP7S3PWTW6MV6MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 face seal male
AP7S3PWTW6MV6TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 face seal male | Vacuum port: 3/8 tube weld
AP7S3PWTW6TW6FV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal female
AP7S3PWTW6TW6MV4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 face seal male
AP7S3PWTW6TW6TW4Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 1/4 tube weld
AP7S3PWTW6TW6FV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal female
AP7S3PWTW6TW6MV6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 face seal male
AP7S3PWTW6TW6TW6Model: AP7 fitting type | Inlet N2: 3/8 tube weld | Exhaust: 3/8 tube weld | Vacuum port: 3/8 tube weld

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
