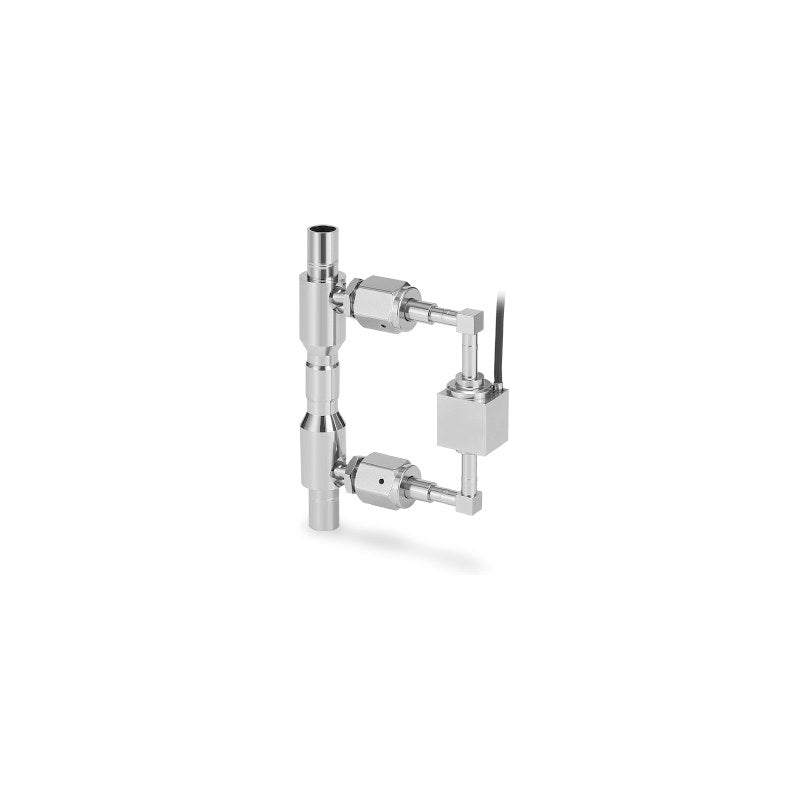

SMC AP71 Vacuum Generator Module (Air-Operated Valve + Check Valve)

SMC AP71 series vacuum generator module integrating an N2 ejector, normally closed air-operated valve and check valve in one compact SUS316L body.

Key features

Ejector, N.C. air-operated valve and check valve integrated in one compact body
Max. vacuum -26 in.Hg (-88 kPa); N2 supply 70-110 psig (0.48-0.76 MPa); valve pilot 0.4-0.76 MPa
Inlet 1/4 face seal; exhaust 1/4 or 3/8 face seal or 3/8 tube weld; vacuum port 1/4 face seal or tube weld
Bleed function option (CB005 to CB023, 2.5 to 15 L/min) keeps the exhaust line inert with a small N2 flow
SUS316L body, SUS303 poppet/piston, FKM check valve seat

Specifications

Supply fluid	Nitrogen
Vacuum-side fluid	Gases that do not corrode wetted parts
N2 inlet pressure	0.48 to 0.76 MPa (70-110 psig)
Max. vacuum	-88 kPa (-26 in.Hg)
Body material	SUS316L
Vacuum-side max. pressure	24.1 MPa
Ambient and fluid temperature	-10 to 71 C
Check valve cracking pressure	0.023 MPa
Mass	0.14 kg
Source	SMC Korea catalog Process Gas Equipment (SMCKR_AP70.pdf), p. 790-791

AP71SMV4MV4MV4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 face seal male
AP71SMV4MV4FV4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 face seal female
AP71SMV4MV4TW4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 tube weld
AP71SMV4FV4MV4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 face seal male
AP71SMV4FV4FV4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 face seal female
AP71SMV4FV4TW4		Inlet N2: 1/4 face seal male \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 tube weld
AP71SMV4MV6MV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 face seal male
AP71SMV4MV6FV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 face seal female
AP71SMV4MV6TW4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 tube weld
AP71SMV4FV6MV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 face seal male
AP71SMV4FV6FV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 face seal female
AP71SMV4FV6TW4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 tube weld
AP71SMV4TW6MV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 face seal male
AP71SMV4TW6FV4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 face seal female
AP71SMV4TW6TW4		Inlet N2: 1/4 face seal male \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 tube weld
AP71SFV4MV4MV4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 face seal male
AP71SFV4MV4FV4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 face seal female
AP71SFV4MV4TW4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal male \| Vacuum port: 1/4 tube weld
AP71SFV4FV4MV4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 face seal male
AP71SFV4FV4FV4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 face seal female
AP71SFV4FV4TW4		Inlet N2: 1/4 face seal female \| Exhaust: 1/4 face seal female \| Vacuum port: 1/4 tube weld
AP71SFV4MV6MV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 face seal male
AP71SFV4MV6FV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 face seal female
AP71SFV4MV6TW4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal male \| Vacuum port: 1/4 tube weld
AP71SFV4FV6MV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 face seal male
AP71SFV4FV6FV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 face seal female
AP71SFV4FV6TW4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 face seal female \| Vacuum port: 1/4 tube weld
AP71SFV4TW6MV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 face seal male
AP71SFV4TW6FV4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 face seal female
AP71SFV4TW6TW4		Inlet N2: 1/4 face seal female \| Exhaust: 3/8 tube weld \| Vacuum port: 1/4 tube weld
