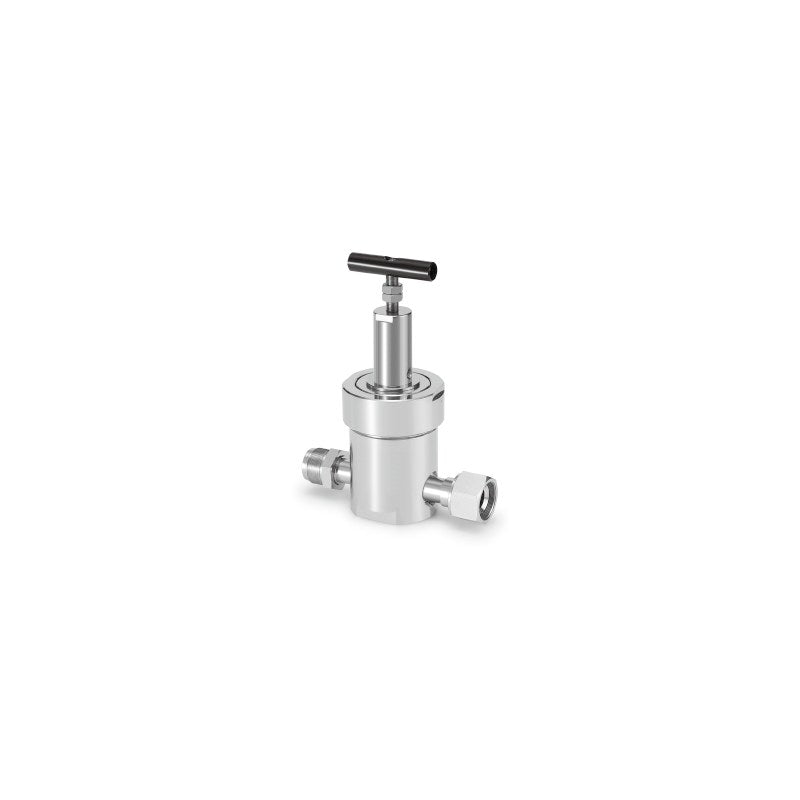

SMC AP9000 / AP9100 High-Purity Bulk Gas Regulator (1/2 to 1 in)

SMC AP9000 / AP9100 High-Purity Bulk Gas Regulator (1/2 to 1 in)

SMC AP9000 and AP9100 series single-stage high-purity tied-diaphragm regulators for bulk gas supply, with flow up to 2000 slpm (AP9000) or 5000 slpm (AP9100).

Key features

  • SUS316L body, tied diaphragm construction, for bulk process gas supply
  • AP9000: inlet up to 1700 psig (11.7 MPa), Cv 3, flow below 2000 slpm; AP9100: inlet up to 800 psig (5.5 MPa), Cv 4, below 5000 slpm
  • Set pressure AP9010/AP9110 0.034-0.7 MPa, AP9030 up to 2.1 MPa, AP9115 0.034-1.0 MPa
  • 2-port or 3-port (inlet gauge) bodies with 1/2, 3/4 or 1 inch face seal or tube weld connections
  • Listed 3PW codes have gauge port "0" (no gauge); gauges, MPA scale, VS seat and M internal finish (0.25 um) are suffix options

Specifications

Fluid Gases that do not corrode wetted parts
Leakage Inboard 2x10^-11, outboard 2x10^-10 Pa m3/s
Ambient and fluid temperature -40 to 71 C (no freezing)
Internal finish Ra max 0.4 um (option 0.25 um)
Bonnet port NPT1/8
Internal volume 197 cm3
Mass 5.9 kg
Material SUS316L
Source SMC Korea catalog Process Gas Equipment (SMCKR_AP_SL_AZ_AK_BP.pdf), p. 686-687
