SMC AQ Quick Exhaust Valve (M5 to Rc3/4)

SMC AQ Quick Exhaust Valve (M5 to Rc3/4)

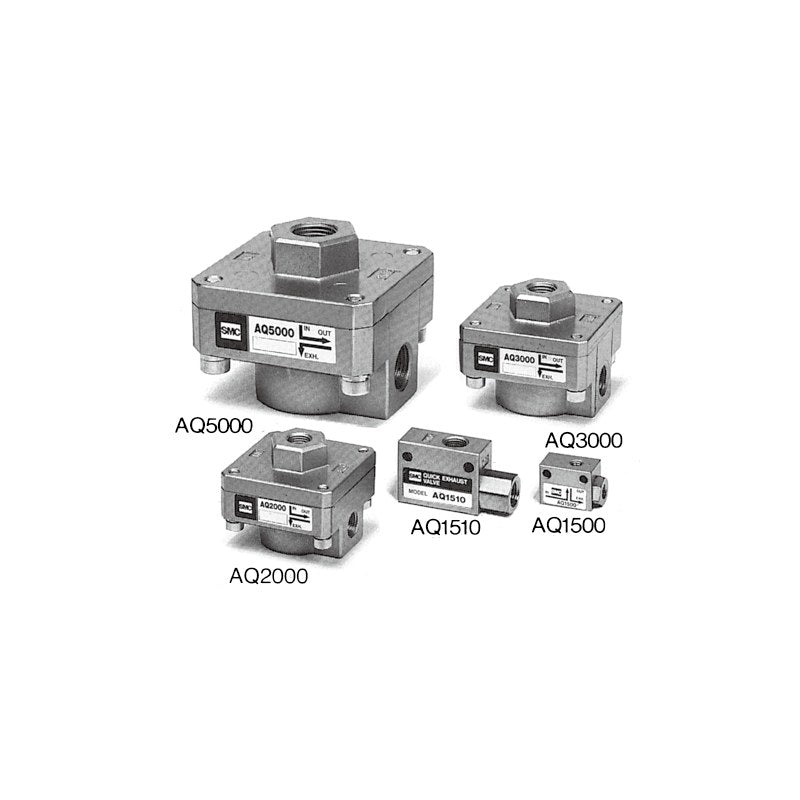

SMC AQ quick exhaust valve mounted near the cylinder to exhaust directly to atmosphere for higher cylinder speed.

Key features

  • Excellent exhaust characteristics with large valve capacity
  • Compact and lightweight; wide range from M5 to 3/4
  • AQ1500/1510 lip seal type, AQ2000 to AQ5000 diaphragm type
  • High temperature (H, -5 to 80°C) and low temperature (L, -30 to 60°C) options for AQ2000 to AQ5000
  • NPT (N) and G (F) threads available on order

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 0.7 MPa (AQ15x0), 1 MPa (AQ2000 to 5000)
Min. operating pressure 0.1 MPa (AQ15x0), 0.05 MPa (AQ2000 to 5000)
Ambient and fluid temperature -5 to 60°C (no freezing)
Source SMC Korea catalog (SMCKR_AQ.pdf), p. 776 (PDF p. 1)
AQ1500-M5 Port size: M5x0.8 | C IN to OUT: 0.4 dm3/(s·bar) | C OUT to EXH: 0.56 dm3/(s·bar) | Structure: Lip seal | Weight: 25 g
AQ1510-01 Port size: Rc1/8 | C IN to OUT: 0.8 dm3/(s·bar) | C OUT to EXH: 1.16 dm3/(s·bar) | Structure: Lip seal | Weight: 45 g
AQ2000-01 Port size: Rc1/8 | C IN to OUT: 5 dm3/(s·bar) | C OUT to EXH: 5 dm3/(s·bar) | Structure: Diaphragm | Weight: 110 g
AQ2000-02 Port size: Rc1/4 | C IN to OUT: 7 dm3/(s·bar) | C OUT to EXH: 8 dm3/(s·bar) | Structure: Diaphragm | Weight: 105 g
AQ3000-02 Port size: Rc1/4 | C IN to OUT: 8 dm3/(s·bar) | C OUT to EXH: 8.4 dm3/(s·bar) | Structure: Diaphragm | Weight: 215 g
AQ3000-03 Port size: Rc3/8 | C IN to OUT: 12 dm3/(s·bar) | C OUT to EXH: 14 dm3/(s·bar) | Structure: Diaphragm | Weight: 205 g
AQ5000-04 Port size: Rc1/2 | C IN to OUT: 21 dm3/(s·bar) | C OUT to EXH: 23 dm3/(s·bar) | Structure: Diaphragm | Weight: 690 g
AQ5000-06 Port size: Rc3/4 | C IN to OUT: 27 dm3/(s·bar) | C OUT to EXH: 36 dm3/(s·bar) | Structure: Diaphragm | Weight: 650 g
