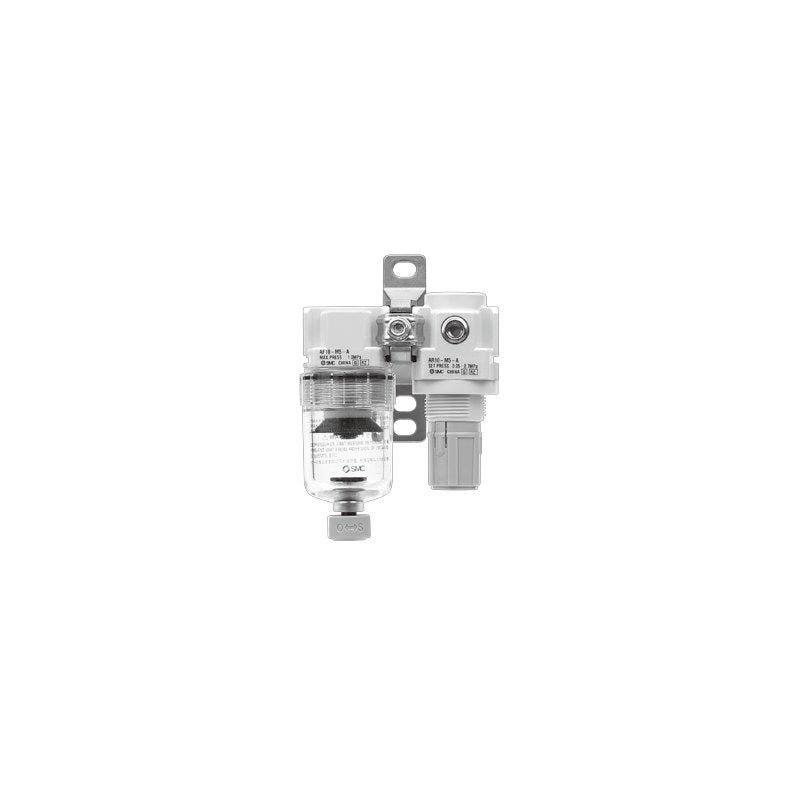

SMC AR10-A Modular Regulator (Size 10, M5)

SMC AR10-A Modular Regulator (Size 10, M5)

SMC AR10-A miniature modular pressure regulator with M5 x 0.8 ports and 1/16 gauge port, set pressure 0.05 to 0.7 MPa.

Key features

  • Smallest modular regulator body size (10); relief type with built-in backflow function as standard
  • Bracket with set nut (B, AR12P-270AS) or set nut for panel mounting (H, AR12P-260S); options packed unassembled
  • Round gauge G27-10-R1 (G, 1.0 MPa); use bushing 131368 to fit an R1/8 gauge
  • Low set pressure 0.02 to 0.2 MPa (1) semi-standard; made to order 0.4 MPa setting (-X406)
  • Semi-standard on order: non-relief (N), right-to-left flow (R), handle upward (Y), psi units (Z)

Specifications

Fluid Air
Port size M5 x 0.8
Ambient and fluid temperature -5 to 60°C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Gauge port 1/16
Construction Relief type
Mass 0.06 kg
Source SMC Korea catalog AC10-A series (SMCKR_AC-A.pdf), p. 13-16
AR10-M5-A Mounting: None | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5-1-A Mounting: None | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5G-A Mounting: None | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5G-1-A Mounting: None | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5B-A Mounting: Bracket (B) | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5B-1-A Mounting: Bracket (B) | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5BG-A Mounting: Bracket (B) | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5BG-1-A Mounting: Bracket (B) | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5H-A Mounting: Set nut (H) | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5H-1-A Mounting: Set nut (H) | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5HG-A Mounting: Set nut (H) | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5HG-1-A Mounting: Set nut (H) | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
RegulatorsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AR10-A Modular Regulator (Size 10, M5)

Brand SMC·Regulators

Available part numbers (12)

AR10-M5-A, AR10-M5-1-A, AR10-M5G-A, AR10-M5G-1-A, AR10-M5B-A, AR10-M5B-1-A, AR10-M5BG-A, AR10-M5BG-1-A, AR10-M5H-A, AR10-M5H-1-A + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AR10-M5-AMounting: None | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5-1-AMounting: None | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5G-AMounting: None | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5G-1-AMounting: None | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5B-AMounting: Bracket (B) | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5B-1-AMounting: Bracket (B) | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5BG-AMounting: Bracket (B) | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5BG-1-AMounting: Bracket (B) | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5H-AMounting: Set nut (H) | Gauge: None | Set pressure: 0.05 to 0.7 MPa
AR10-M5H-1-AMounting: Set nut (H) | Gauge: None | Set pressure: 0.02 to 0.2 MPa (1)
AR10-M5HG-AMounting: Set nut (H) | Gauge: Round (G) | Set pressure: 0.05 to 0.7 MPa
AR10-M5HG-1-AMounting: Set nut (H) | Gauge: Round (G) | Set pressure: 0.02 to 0.2 MPa (1)
