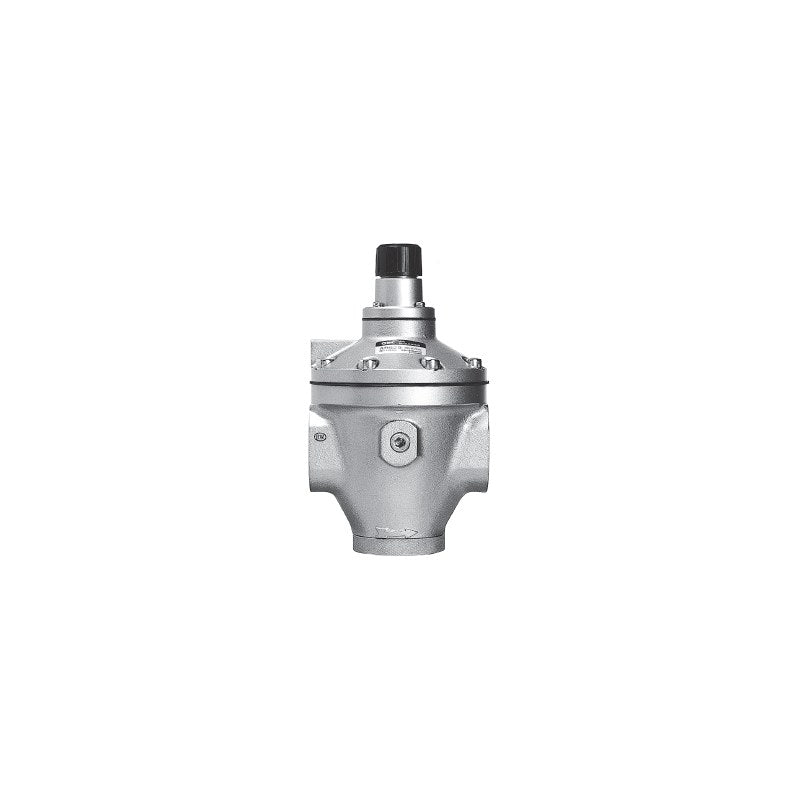

SMC AR425 to AR935 Pilot Operated Regulator (Rc1/4 to Rc2)

SMC AR425 to AR935 internal pilot operated relief-type regulators for large flow, port sizes Rc1/4 to Rc2, in standard (0.05-0.83 MPa) and low-pressure (0.02-0.2 MPa) versions.

Key features

Internal pilot construction with relief, pilot air constantly bled (5 L/min ANR max.)
Four body sizes: AR4_5 (1/4, 3/8, 1/2), AR6_5 (3/4, 1), AR8_5 (1-1/4, 1-1/2), AR9_5 (2)
Standard AR_25 0.05-0.83 MPa and low-pressure AR_35 0.02-0.2 MPa setting ranges
Options: bracket (B, AR4_5/AR6_5), pressure gauge (G) or remote indicator gauge (P); flow direction right-to-left (R)
Thread Rc standard; NPT (N) and G (F) available

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Air consumption	5 L/min (ANR) max. at max. setting
Gauge port	1/4
Ambient and fluid temperature	-5 to 60°C (no freezing)
Construction	Internal pilot, relief type (pilot air constantly bled)
Mass	AR4_5 0.7 kg, AR6_5 1.1 kg, AR8_5 2.5 kg, AR9_5 4.5 kg
Source	SMC Korea catalog AR425-935 (SMCKR_AR425-935.pdf), p. 962-963 (PDF p. 1-2)

AR425-02		Body size: AR425 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc1/4
AR425-03		Body size: AR425 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc3/8
AR425-04		Body size: AR425 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc1/2
AR435-02		Body size: AR435 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc1/4
AR435-03		Body size: AR435 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc3/8
AR435-04		Body size: AR435 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc1/2
AR625-06		Body size: AR625 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc3/4
AR625-10		Body size: AR625 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc1
AR635-06		Body size: AR635 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc3/4
AR635-10		Body size: AR635 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc1
AR825-12		Body size: AR825 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc1-1/4
AR825-14		Body size: AR825 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc1-1/2
AR835-12		Body size: AR835 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc1-1/4
AR835-14		Body size: AR835 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc1-1/2
AR925-20		Body size: AR925 \| Set pressure range: 0.05-0.83 MPa \| Port: Rc2
AR935-20		Body size: AR935 \| Set pressure range: 0.02-0.2 MPa \| Port: Rc2

RegulatorsSMC

16 product codes available in this family
