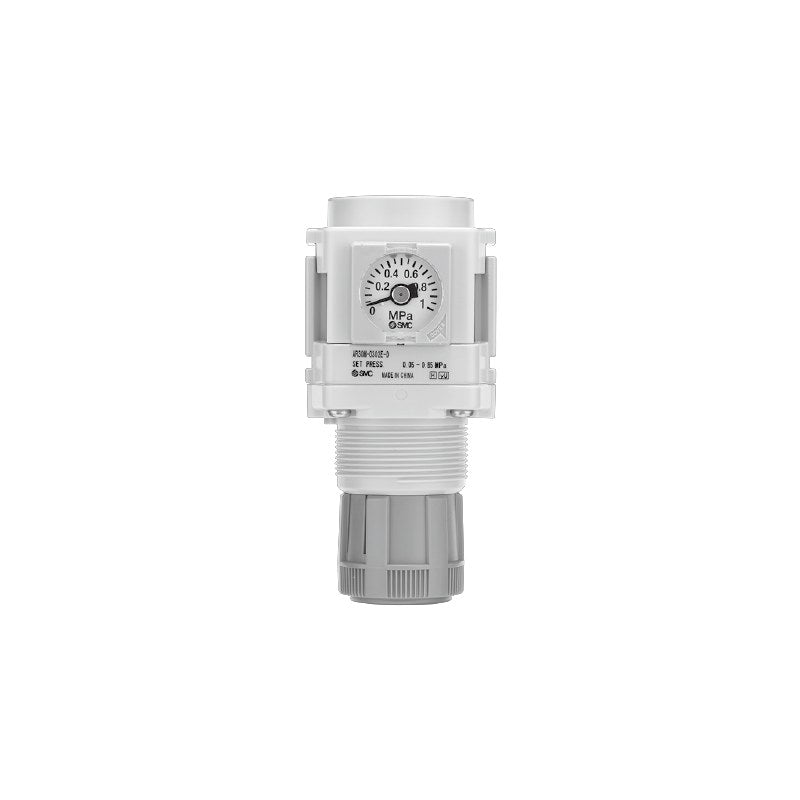

SMC AR20M-D to AR40M-D modular common supply regulator that passes the supply air through to adjacent units while each regulator sets its own outlet pressure, with reverse flow (K) versions.

Key features

  • Common IN supply through modular connection: multiple regulated outlets with fewer piping steps and less space
  • Connects directly to AC-D series F.R.L. combinations; branch piping possible
  • Reverse flow type (K) exhausts outlet pressure back to the inlet side when supply is released
  • Separate IN and OUT port sizes; spacers Y200-D to Y400-D and bracket spacers (T, long type -1) for assembly
  • Options on order: bracket (B), set nut (H), gauges E/G/J/M, digital pressure switch E1 to E4
  • Semi-standard on order: 0.02 to 0.2 MPa setting (1), non-relief (N), handle upward (Y), psi units (Z)

Specifications

Fluid Air
Ambient and fluid temperature -5 to 60°C (no freezing)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range 0.05 to 0.85 MPa (reverse flow type 0.1 to 0.85 MPa)
Gauge port 1/8
Construction Relief type
Mass 0.16 kg (20), 0.29 kg (30), 0.50 kg (40)
Source SMC Korea catalog CAT.KS40-72A (SMCKR_AR__M-D.pdf), p. 3-5 (PDF p. 9-11)
AR20M-0101-D Reverse flow: No | Body size: 20 | IN port: Rc1/8 | OUT port: Rc1/8
AR20M-0201-D Reverse flow: No | Body size: 20 | IN port: Rc1/4 | OUT port: Rc1/8
AR20M-0202-D Reverse flow: No | Body size: 20 | IN port: Rc1/4 | OUT port: Rc1/4
AR30M-0202-D Reverse flow: No | Body size: 30 | IN port: Rc1/4 | OUT port: Rc1/4
AR30M-0302-D Reverse flow: No | Body size: 30 | IN port: Rc3/8 | OUT port: Rc1/4
AR40M-0302-D Reverse flow: No | Body size: 40 | IN port: Rc3/8 | OUT port: Rc1/4
AR40M-0303-D Reverse flow: No | Body size: 40 | IN port: Rc3/8 | OUT port: Rc3/8
AR40M-0402-D Reverse flow: No | Body size: 40 | IN port: Rc1/2 | OUT port: Rc1/4
AR40M-0403-D Reverse flow: No | Body size: 40 | IN port: Rc1/2 | OUT port: Rc3/8
AR20MK-0101-D Reverse flow: Yes (K) | Body size: 20 | IN port: Rc1/8 | OUT port: Rc1/8
AR20MK-0201-D Reverse flow: Yes (K) | Body size: 20 | IN port: Rc1/4 | OUT port: Rc1/8
AR20MK-0202-D Reverse flow: Yes (K) | Body size: 20 | IN port: Rc1/4 | OUT port: Rc1/4
AR30MK-0202-D Reverse flow: Yes (K) | Body size: 30 | IN port: Rc1/4 | OUT port: Rc1/4
AR30MK-0302-D Reverse flow: Yes (K) | Body size: 30 | IN port: Rc3/8 | OUT port: Rc1/4
AR40MK-0302-D Reverse flow: Yes (K) | Body size: 40 | IN port: Rc3/8 | OUT port: Rc1/4
AR40MK-0303-D Reverse flow: Yes (K) | Body size: 40 | IN port: Rc3/8 | OUT port: Rc3/8
AR40MK-0402-D Reverse flow: Yes (K) | Body size: 40 | IN port: Rc1/2 | OUT port: Rc1/4
AR40MK-0403-D Reverse flow: Yes (K) | Body size: 40 | IN port: Rc1/2 | OUT port: Rc3/8
