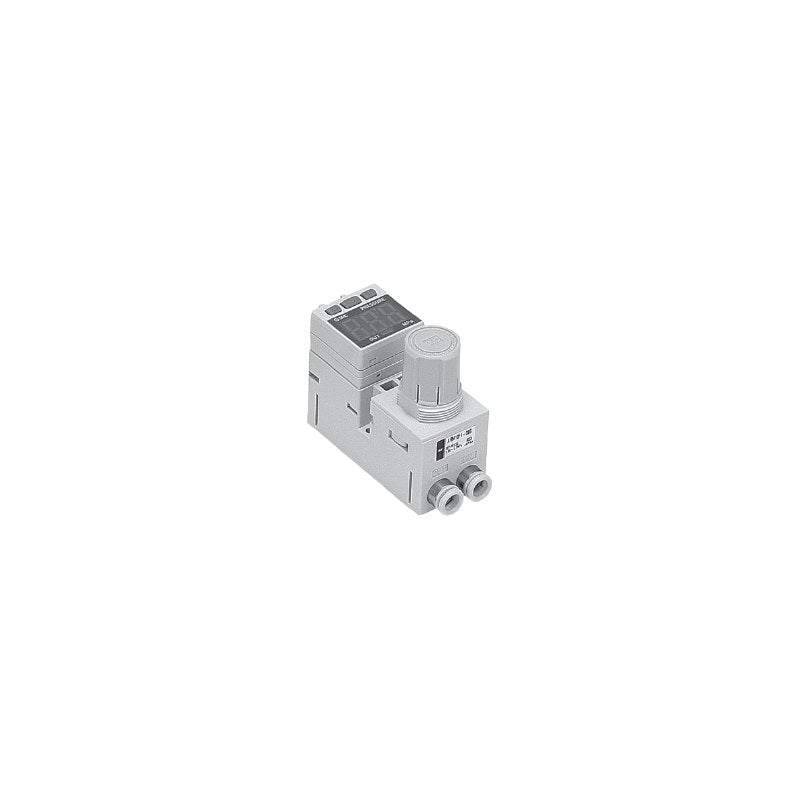

SMC ARM10 Compact Regulator (Single Unit, Standard / Handle Front)

SMC ARM10 Compact Regulator (Single Unit, Standard / Handle Front)

SMC ARM10 compact single-unit regulator with built-in ø4/ø6 one-touch fittings, in standard type and handle-front panel-mount type (ARM10F).

Key features

  • Single regulator with one-touch fittings on IN and OUT (straight or elbow, ø4/ø6)
  • ARM10F handle-front type for panel mounting; IN/OUT piping each top or bottom (positions 1-4)
  • Accessories as suffix: bracket (B), pressure gauge (G), panel nut (P), digital pressure switch, protective cover (GPC on ARM10F)
  • Semi-standard: 0.35 MPa setting, non-relief, oil-free (1-7); psi units (Z, ZA); inch fittings (56-84)
  • ARM10F-X201 manifold-mount version is made to order

Specifications

Fluid Air
Regulator construction Direct operated, diaphragm type, relief (non-relief semi-standard)
Backflow function Yes (unbalanced type)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range 0.05-0.7 MPa (0.05-0.35 MPa low-pressure semi-standard)
Ambient and fluid temperature 5 to 60°C (digital pressure switch 5 to 50°C)
IN/OUT tube O.D. ø4, ø6 (inch ø5/32, ø1/4)
Source SMC Korea catalog ARM10/11 (SMCKR_ARM10_ARM11.pdf), p. 1023-1024, 1030 (PDF p. 28-29, 35)
ARM10-06 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10-07 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10-08 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10-18 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10-19 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10-20 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10-25 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10-26 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10-27 Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10-32 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10-33 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10-34 Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F1-06 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F1-07 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F1-08 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F1-18 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F1-19 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F1-20 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F1-25 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F1-26 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F1-27 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F1-32 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F1-33 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F1-34 Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F2-06 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F2-07 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F2-08 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F2-18 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F2-19 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F2-20 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F2-25 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F2-26 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F2-27 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F2-32 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F2-33 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F2-34 Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F3-06 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F3-07 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F3-08 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F3-18 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F3-19 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F3-20 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F3-25 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F3-26 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F3-27 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F3-32 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F3-33 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F3-34 Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F4-06 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F4-07 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F4-08 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F4-18 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F4-19 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F4-20 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F4-25 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F4-26 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F4-27 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F4-32 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F4-33 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F4-34 Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
RegulatorsSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ARM10 Compact Regulator (Single Unit, Standard / Handle Front)

Brand SMC·Regulators

Available part numbers (60)

ARM10-06, ARM10-07, ARM10-08, ARM10-18, ARM10-19, ARM10-20, ARM10-25, ARM10-26, ARM10-27, ARM10-32 + 50 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARM10-06Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10-07Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10-08Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10-18Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10-19Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10-20Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10-25Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10-26Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10-27Type: Standard | IN/OUT position: Side ported | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10-32Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10-33Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10-34Type: Standard | IN/OUT position: Side ported | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F1-06Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F1-07Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F1-08Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F1-18Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F1-19Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F1-20Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F1-25Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F1-26Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F1-27Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F1-32Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F1-33Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F1-34Type: Handle front | IN/OUT position: IN bottom / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F2-06Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F2-07Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F2-08Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F2-18Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F2-19Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F2-20Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F2-25Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F2-26Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F2-27Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F2-32Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F2-33Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F2-34Type: Handle front | IN/OUT position: IN top / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F3-06Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F3-07Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F3-08Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F3-18Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F3-19Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F3-20Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F3-25Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F3-26Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F3-27Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F3-32Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F3-33Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F3-34Type: Handle front | IN/OUT position: IN bottom / OUT top | IN fitting: Elbow ø6 | OUT fitting: Straight ø6
ARM10F4-06Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Straight ø4
ARM10F4-07Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø4
ARM10F4-08Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Straight ø6
ARM10F4-18Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Elbow ø4
ARM10F4-19Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø4
ARM10F4-20Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Elbow ø6
ARM10F4-25Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø4 | OUT fitting: Elbow ø4
ARM10F4-26Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø4
ARM10F4-27Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Straight ø6 | OUT fitting: Elbow ø6
ARM10F4-32Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø4 | OUT fitting: Straight ø4
ARM10F4-33Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø4
ARM10F4-34Type: Handle front | IN/OUT position: IN top / OUT bottom | IN fitting: Elbow ø6 | OUT fitting: Straight ø6

Need a different model, or a part not listed here? Send us your parts list →
