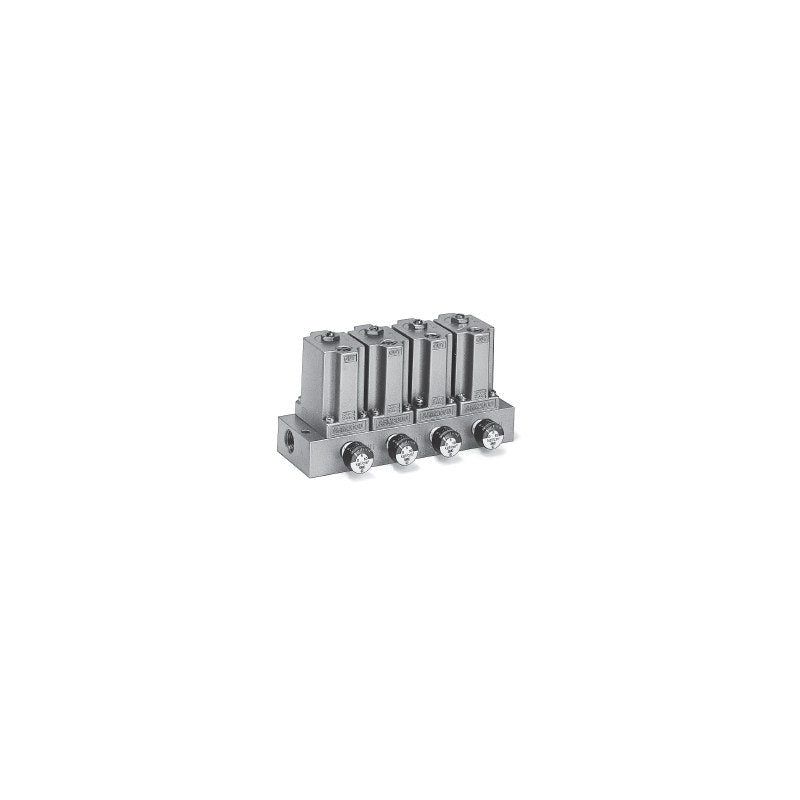

SMC ARM1000/2000 Manifold Regulator (1 to 10 Stations)

SMC ARM1000/2000 Manifold Regulator (1 to 10 Stations)

SMC ARM1000/2000 manifold-type regulators with 1 to 10 stations, common or individual IN supply, Rc1/8 outlets and standard backflow function.

Key features

  • Four piping configurations: common IN (A1, A2) or individual IN (B1, B2), with OUT on manifold side or body side
  • Compact ø15 pressure gauge available (G suffix, G15-10-01)
  • Backflow function standard; space-saving manifold construction
  • Listed codes include the 0.2 MPa setting version (-1) for 0.05-0.2 MPa
  • Replacement regulator bodies ARM1000A/ARM2000A and manifold bodies available; NPT thread (N) on order

Specifications

Fluid Air
Proof pressure 1.2 MPa
Max. operating pressure 0.8 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Cracking pressure (valve body) 0.02 MPa
Construction Relief type, backflow function
OUT port Rc1/8
IN port ARM1000 1/8; ARM2000 common 1/4, individual 1/8
Source SMC Korea catalog ARM1000/2000 (SMCKR_ARM1000.pdf), p. 1035-1036 (PDF p. 1-2)
ARM1000-1A1-01 Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1A1-01-1 Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1A2-01 Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1A2-01-1 Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1B1-01 Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1B1-01-1 Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1B2-01 Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1B2-01-1 Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2A1-01 Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2A1-01-1 Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2A2-01 Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2A2-01-1 Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2B1-01 Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2B1-01-1 Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2B2-01 Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2B2-01-1 Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3A1-01 Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3A1-01-1 Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3A2-01 Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3A2-01-1 Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3B1-01 Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3B1-01-1 Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3B2-01 Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3B2-01-1 Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4A1-01 Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4A1-01-1 Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4A2-01 Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4A2-01-1 Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4B1-01 Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4B1-01-1 Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4B2-01 Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4B2-01-1 Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5A1-01 Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5A1-01-1 Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5A2-01 Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5A2-01-1 Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5B1-01 Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5B1-01-1 Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5B2-01 Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5B2-01-1 Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6A1-01 Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6A1-01-1 Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6A2-01 Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6A2-01-1 Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6B1-01 Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6B1-01-1 Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6B2-01 Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6B2-01-1 Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7A1-01 Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7A1-01-1 Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7A2-01 Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7A2-01-1 Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7B1-01 Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7B1-01-1 Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7B2-01 Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7B2-01-1 Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8A1-01 Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8A1-01-1 Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8A2-01 Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8A2-01-1 Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8B1-01 Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8B1-01-1 Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8B2-01 Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8B2-01-1 Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9A1-01 Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9A1-01-1 Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9A2-01 Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9A2-01-1 Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9B1-01 Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9B1-01-1 Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9B2-01 Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9B2-01-1 Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10A1-01 Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10A1-01-1 Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10A2-01 Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10A2-01-1 Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10B1-01 Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10B1-01-1 Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10B2-01 Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10B2-01-1 Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1A1-01 Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1A1-01-1 Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1A2-01 Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1A2-01-1 Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1B1-01 Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1B1-01-1 Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1B2-01 Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1B2-01-1 Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2A1-01 Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2A1-01-1 Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2A2-01 Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2A2-01-1 Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2B1-01 Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2B1-01-1 Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2B2-01 Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2B2-01-1 Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3A1-01 Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3A1-01-1 Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3A2-01 Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3A2-01-1 Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3B1-01 Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3B1-01-1 Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3B2-01 Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3B2-01-1 Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4A1-01 Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4A1-01-1 Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4A2-01 Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4A2-01-1 Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4B1-01 Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4B1-01-1 Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4B2-01 Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4B2-01-1 Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5A1-01 Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5A1-01-1 Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5A2-01 Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5A2-01-1 Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5B1-01 Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5B1-01-1 Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5B2-01 Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5B2-01-1 Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6A1-01 Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6A1-01-1 Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6A2-01 Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6A2-01-1 Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6B1-01 Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6B1-01-1 Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6B2-01 Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6B2-01-1 Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7A1-01 Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7A1-01-1 Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7A2-01 Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7A2-01-1 Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7B1-01 Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7B1-01-1 Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7B2-01 Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7B2-01-1 Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8A1-01 Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8A1-01-1 Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8A2-01 Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8A2-01-1 Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8B1-01 Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8B1-01-1 Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8B2-01 Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8B2-01-1 Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9A1-01 Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9A1-01-1 Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9A2-01 Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9A2-01-1 Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9B1-01 Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9B1-01-1 Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9B2-01 Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9B2-01-1 Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10A1-01 Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10A1-01-1 Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10A2-01 Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10A2-01-1 Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10B1-01 Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10B1-01-1 Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10B2-01 Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10B2-01-1 Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
RegulatorsSMC
160 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ARM1000/2000 Manifold Regulator (1 to 10 Stations)

Brand SMC·Regulators

Available part numbers (160)

ARM1000-1A1-01, ARM1000-1A1-01-1, ARM1000-1A2-01, ARM1000-1A2-01-1, ARM1000-1B1-01, ARM1000-1B1-01-1, ARM1000-1B2-01, ARM1000-1B2-01-1, ARM1000-2A1-01, ARM1000-2A1-01-1 + 150 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARM1000-1A1-01Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1A1-01-1Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1A2-01Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1A2-01-1Series: ARM1000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1B1-01Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1B1-01-1Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-1B2-01Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-1B2-01-1Series: ARM1000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2A1-01Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2A1-01-1Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2A2-01Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2A2-01-1Series: ARM1000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2B1-01Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2B1-01-1Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-2B2-01Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-2B2-01-1Series: ARM1000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3A1-01Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3A1-01-1Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3A2-01Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3A2-01-1Series: ARM1000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3B1-01Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3B1-01-1Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-3B2-01Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-3B2-01-1Series: ARM1000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4A1-01Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4A1-01-1Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4A2-01Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4A2-01-1Series: ARM1000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4B1-01Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4B1-01-1Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-4B2-01Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-4B2-01-1Series: ARM1000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5A1-01Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5A1-01-1Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5A2-01Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5A2-01-1Series: ARM1000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5B1-01Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5B1-01-1Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-5B2-01Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-5B2-01-1Series: ARM1000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6A1-01Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6A1-01-1Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6A2-01Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6A2-01-1Series: ARM1000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6B1-01Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6B1-01-1Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-6B2-01Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-6B2-01-1Series: ARM1000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7A1-01Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7A1-01-1Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7A2-01Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7A2-01-1Series: ARM1000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7B1-01Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7B1-01-1Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-7B2-01Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-7B2-01-1Series: ARM1000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8A1-01Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8A1-01-1Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8A2-01Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8A2-01-1Series: ARM1000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8B1-01Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8B1-01-1Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-8B2-01Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-8B2-01-1Series: ARM1000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9A1-01Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9A1-01-1Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9A2-01Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9A2-01-1Series: ARM1000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9B1-01Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9B1-01-1Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-9B2-01Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-9B2-01-1Series: ARM1000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10A1-01Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10A1-01-1Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10A2-01Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10A2-01-1Series: ARM1000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10B1-01Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10B1-01-1Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM1000-10B2-01Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM1000-10B2-01-1Series: ARM1000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1A1-01Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1A1-01-1Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1A2-01Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1A2-01-1Series: ARM2000 | Stations: 1 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1B1-01Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1B1-01-1Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-1B2-01Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-1B2-01-1Series: ARM2000 | Stations: 1 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2A1-01Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2A1-01-1Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2A2-01Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2A2-01-1Series: ARM2000 | Stations: 2 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2B1-01Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2B1-01-1Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-2B2-01Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-2B2-01-1Series: ARM2000 | Stations: 2 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3A1-01Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3A1-01-1Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3A2-01Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3A2-01-1Series: ARM2000 | Stations: 3 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3B1-01Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3B1-01-1Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-3B2-01Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-3B2-01-1Series: ARM2000 | Stations: 3 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4A1-01Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4A1-01-1Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4A2-01Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4A2-01-1Series: ARM2000 | Stations: 4 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4B1-01Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4B1-01-1Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-4B2-01Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-4B2-01-1Series: ARM2000 | Stations: 4 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5A1-01Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5A1-01-1Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5A2-01Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5A2-01-1Series: ARM2000 | Stations: 5 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5B1-01Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5B1-01-1Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-5B2-01Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-5B2-01-1Series: ARM2000 | Stations: 5 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6A1-01Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6A1-01-1Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6A2-01Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6A2-01-1Series: ARM2000 | Stations: 6 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6B1-01Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6B1-01-1Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-6B2-01Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-6B2-01-1Series: ARM2000 | Stations: 6 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7A1-01Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7A1-01-1Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7A2-01Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7A2-01-1Series: ARM2000 | Stations: 7 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7B1-01Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7B1-01-1Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-7B2-01Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-7B2-01-1Series: ARM2000 | Stations: 7 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8A1-01Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8A1-01-1Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8A2-01Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8A2-01-1Series: ARM2000 | Stations: 8 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8B1-01Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8B1-01-1Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-8B2-01Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-8B2-01-1Series: ARM2000 | Stations: 8 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9A1-01Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9A1-01-1Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9A2-01Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9A2-01-1Series: ARM2000 | Stations: 9 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9B1-01Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9B1-01-1Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-9B2-01Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-9B2-01-1Series: ARM2000 | Stations: 9 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10A1-01Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10A1-01-1Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10A2-01Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10A2-01-1Series: ARM2000 | Stations: 10 | Piping: Common IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10B1-01Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10B1-01-1Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on manifold | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)
ARM2000-10B2-01Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.7 MPa (standard)
ARM2000-10B2-01-1Series: ARM2000 | Stations: 10 | Piping: Individual IN, OUT on valve body | Set pressure: 0.05-0.2 MPa (0.2 MPa setting)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
