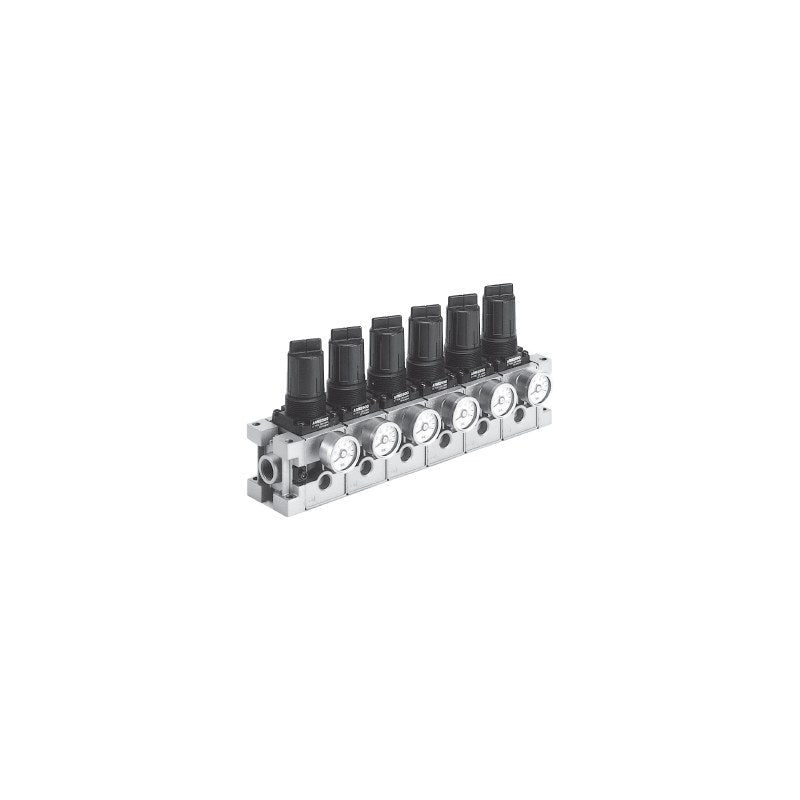

SMC ARM2500/3000 Modular Manifold Regulator (2 to 10 Stations)

SMC ARM2500/3000 Modular Manifold Regulator (2 to 10 Stations)

SMC ARM2500/3000 modular manifold-type regulators, 2 to 10 stations, with common IN through end plates or individual IN, Rc1/4 or Rc3/8 outlets.

Key features

  • Modular construction allows free change of station count; ideal for centralized pressure control
  • Common IN type (A) supplied from end plates, or individual IN type (B) per regulator
  • New handle design with one-touch locking for easy setting
  • Pressure gauge options G1 (rear thread) / G2 (side thread) and X216 (with backflow function) on order
  • Mounting bolt and bracket assemblies available; NPT (N) and G (F) threads on order

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Set pressure range 0.05-0.85 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Construction Relief type
IN port ARM2500 3/8 (common) or 1/4 (individual); ARM3000 1/2 or 3/8
Gauge port 1/8
Source SMC Korea catalog ARM2500/3000 (SMCKR_ARM2500.pdf), p. 1038-1039 (PDF p. 1-2)
ARM2500-02A-02 Series: ARM2500 | Stations: 2 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-02B-02 Series: ARM2500 | Stations: 2 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-03A-02 Series: ARM2500 | Stations: 3 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-03B-02 Series: ARM2500 | Stations: 3 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-04A-02 Series: ARM2500 | Stations: 4 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-04B-02 Series: ARM2500 | Stations: 4 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-05A-02 Series: ARM2500 | Stations: 5 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-05B-02 Series: ARM2500 | Stations: 5 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-06A-02 Series: ARM2500 | Stations: 6 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-06B-02 Series: ARM2500 | Stations: 6 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-07A-02 Series: ARM2500 | Stations: 7 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-07B-02 Series: ARM2500 | Stations: 7 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-08A-02 Series: ARM2500 | Stations: 8 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-08B-02 Series: ARM2500 | Stations: 8 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-09A-02 Series: ARM2500 | Stations: 9 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-09B-02 Series: ARM2500 | Stations: 9 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-10A-02 Series: ARM2500 | Stations: 10 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-10B-02 Series: ARM2500 | Stations: 10 | Piping: Individual IN | OUT port: Rc1/4
ARM3000-02A-03 Series: ARM3000 | Stations: 2 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-02B-03 Series: ARM3000 | Stations: 2 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-03A-03 Series: ARM3000 | Stations: 3 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-03B-03 Series: ARM3000 | Stations: 3 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-04A-03 Series: ARM3000 | Stations: 4 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-04B-03 Series: ARM3000 | Stations: 4 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-05A-03 Series: ARM3000 | Stations: 5 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-05B-03 Series: ARM3000 | Stations: 5 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-06A-03 Series: ARM3000 | Stations: 6 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-06B-03 Series: ARM3000 | Stations: 6 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-07A-03 Series: ARM3000 | Stations: 7 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-07B-03 Series: ARM3000 | Stations: 7 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-08A-03 Series: ARM3000 | Stations: 8 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-08B-03 Series: ARM3000 | Stations: 8 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-09A-03 Series: ARM3000 | Stations: 9 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-09B-03 Series: ARM3000 | Stations: 9 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-10A-03 Series: ARM3000 | Stations: 10 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-10B-03 Series: ARM3000 | Stations: 10 | Piping: Individual IN | OUT port: Rc3/8
RegulatorsSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ARM2500/3000 Modular Manifold Regulator (2 to 10 Stations)

Brand SMC·Regulators

Available part numbers (36)

ARM2500-02A-02, ARM2500-02B-02, ARM2500-03A-02, ARM2500-03B-02, ARM2500-04A-02, ARM2500-04B-02, ARM2500-05A-02, ARM2500-05B-02, ARM2500-06A-02, ARM2500-06B-02 + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARM2500-02A-02Series: ARM2500 | Stations: 2 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-02B-02Series: ARM2500 | Stations: 2 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-03A-02Series: ARM2500 | Stations: 3 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-03B-02Series: ARM2500 | Stations: 3 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-04A-02Series: ARM2500 | Stations: 4 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-04B-02Series: ARM2500 | Stations: 4 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-05A-02Series: ARM2500 | Stations: 5 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-05B-02Series: ARM2500 | Stations: 5 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-06A-02Series: ARM2500 | Stations: 6 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-06B-02Series: ARM2500 | Stations: 6 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-07A-02Series: ARM2500 | Stations: 7 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-07B-02Series: ARM2500 | Stations: 7 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-08A-02Series: ARM2500 | Stations: 8 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-08B-02Series: ARM2500 | Stations: 8 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-09A-02Series: ARM2500 | Stations: 9 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-09B-02Series: ARM2500 | Stations: 9 | Piping: Individual IN | OUT port: Rc1/4
ARM2500-10A-02Series: ARM2500 | Stations: 10 | Piping: Common IN (end plate) | OUT port: Rc1/4
ARM2500-10B-02Series: ARM2500 | Stations: 10 | Piping: Individual IN | OUT port: Rc1/4
ARM3000-02A-03Series: ARM3000 | Stations: 2 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-02B-03Series: ARM3000 | Stations: 2 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-03A-03Series: ARM3000 | Stations: 3 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-03B-03Series: ARM3000 | Stations: 3 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-04A-03Series: ARM3000 | Stations: 4 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-04B-03Series: ARM3000 | Stations: 4 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-05A-03Series: ARM3000 | Stations: 5 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-05B-03Series: ARM3000 | Stations: 5 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-06A-03Series: ARM3000 | Stations: 6 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-06B-03Series: ARM3000 | Stations: 6 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-07A-03Series: ARM3000 | Stations: 7 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-07B-03Series: ARM3000 | Stations: 7 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-08A-03Series: ARM3000 | Stations: 8 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-08B-03Series: ARM3000 | Stations: 8 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-09A-03Series: ARM3000 | Stations: 9 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-09B-03Series: ARM3000 | Stations: 9 | Piping: Individual IN | OUT port: Rc3/8
ARM3000-10A-03Series: ARM3000 | Stations: 10 | Piping: Common IN (end plate) | OUT port: Rc3/8
ARM3000-10B-03Series: ARM3000 | Stations: 10 | Piping: Individual IN | OUT port: Rc3/8
