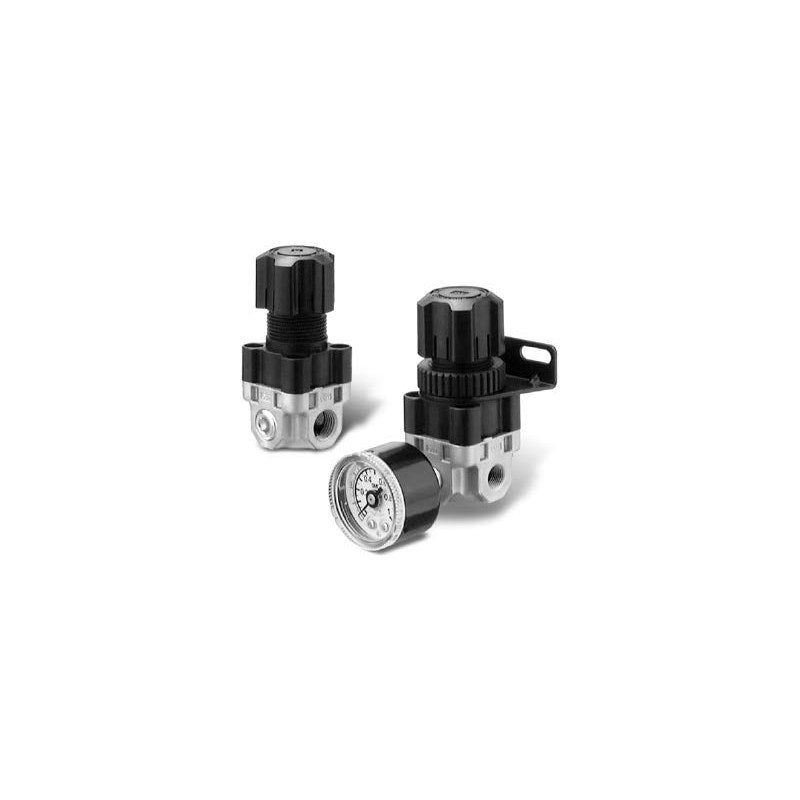

SMC ARX20 Compact Regulator (2.0 MPa Inlet, Piston Type)

SMC ARX20 Compact Regulator (2.0 MPa Inlet, Piston Type)

SMC ARX20 compact piston-type relief regulator for inlet supply pressure up to 2.0 MPa, 35 mm across flats, Rc1/8 or Rc1/4 ports with three outlet ports.

Key features

  • Accepts inlet supply pressure up to 2.0 MPa; suited to compressor discharge and air blow regulation
  • Compact body: 35 mm width, 80 mm overall length, 110 g; easy-grip handle
  • Piston type pressure regulating mechanism with relief
  • ARX20 standard 0.05-0.85 MPa; ARX21 low pressure 0.05-0.3 MPa
  • Options: bracket (B), pressure gauge (G), panel nut (P) and combinations BG, GP; NPT and G threads on order

Specifications

Fluid Air
Proof pressure 3.0 MPa
Max. operating pressure 2.0 MPa
Gauge port Rc1/8, 1/4
Construction Piston type, relief
Ambient and fluid temperature -5 to 60°C (no freezing)
Mass 110 g
Source SMC Korea catalog ARX20 (SMCKR_ARX20.pdf), p. 965-966 (PDF p. 1-2)
ARX20-01 Model: ARX20 | Set pressure range: 0.05-0.85 MPa | Port: Rc1/8
ARX20-02 Model: ARX20 | Set pressure range: 0.05-0.85 MPa | Port: Rc1/4
ARX21-01 Model: ARX21 | Set pressure range: 0.05-0.3 MPa | Port: Rc1/8
ARX21-02 Model: ARX21 | Set pressure range: 0.05-0.3 MPa | Port: Rc1/4
RegulatorsSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ARX20 Compact Regulator (2.0 MPa Inlet, Piston Type)

Brand SMC·Regulators

Available part numbers (4)

ARX20-01, ARX20-02, ARX21-01, ARX21-02

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ARX20-01Model: ARX20 | Set pressure range: 0.05-0.85 MPa | Port: Rc1/8
ARX20-02Model: ARX20 | Set pressure range: 0.05-0.85 MPa | Port: Rc1/4
ARX21-01Model: ARX21 | Set pressure range: 0.05-0.3 MPa | Port: Rc1/8
ARX21-02Model: ARX21 | Set pressure range: 0.05-0.3 MPa | Port: Rc1/4
