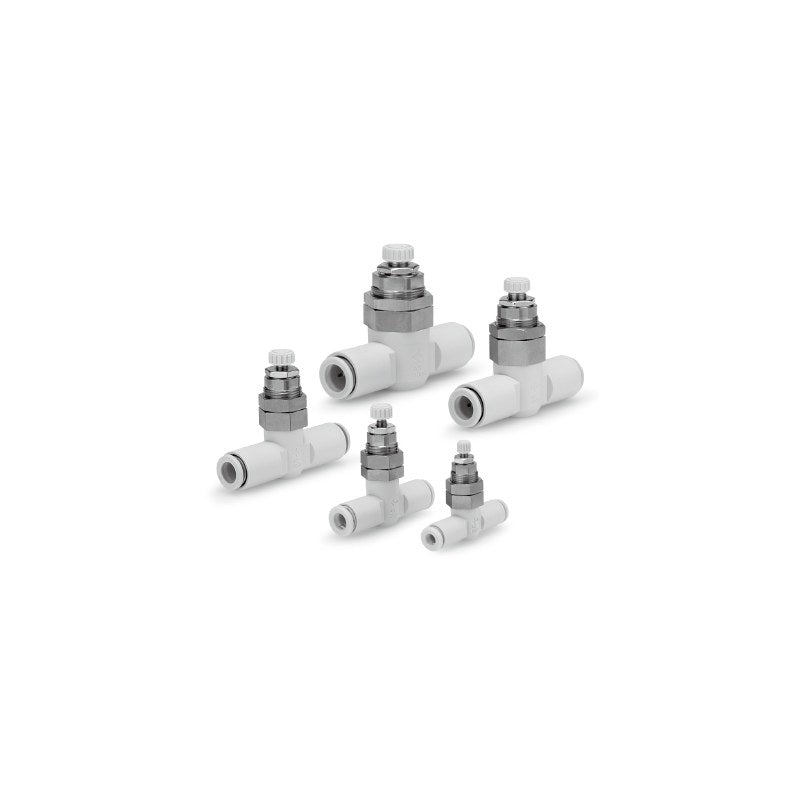

SMC AS-1F-3 Panel Mount Speed Controller (Inline, One-touch)

SMC AS-1F-3 Panel Mount Speed Controller (Inline, One-touch)

SMC AS1F-3 inline speed controllers with one-touch fittings and a panel nut for mounting through panels up to 3.5 mm thick.

Key features

  • Panel mount type: panel nut with hex flats top and bottom for easy installation and removal
  • Panel thickness up to 3.5 mm
  • One-touch fittings on both ends for metric ø3.2-ø12 and inch ø1/8"-ø1/2" tubing
  • Brass parts electroless nickel plated as standard
  • Optional round lock nut (suffix J)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60 °C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane
Max. panel thickness 3.5 mm
Controlled flow (0.5 MPa) 100 to 1390 L/min (ANR) by size
Options (not expanded) J: round lock nut; -X12, -X21, -X214
Source SMC Korea catalog AS-1F-3 (SMCKR_AS________1F-3.pdf), p. 621-624 (PDF p. 1-4)
AS1001F-23-3 Body size: AS1001F (M5 class) | Tube OD: ø3.2 mm | Tube sizing: Metric
AS1001F-04-3 Body size: AS1001F (M5 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS1001F-06-3 Body size: AS1001F (M5 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS1001F-01-3 Body size: AS1001F (M5 class) | Tube OD: ø1/8 in | Tube sizing: Inch
AS1001F-03-3 Body size: AS1001F (M5 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS1001F-05-3 Body size: AS1001F (M5 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS1001F-07-3 Body size: AS1001F (M5 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2001F-04-3 Body size: AS2001F (1/8 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS2001F-06-3 Body size: AS2001F (1/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2001F-03-3 Body size: AS2001F (1/8 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS2001F-05-3 Body size: AS2001F (1/8 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS2001F-07-3 Body size: AS2001F (1/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2051F-06-3 Body size: AS2051F (1/4 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2051F-08-3 Body size: AS2051F (1/4 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS2051F-05-3 Body size: AS2051F (1/4 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS2051F-07-3 Body size: AS2051F (1/4 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2051F-09-3 Body size: AS2051F (1/4 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3001F-06-3 Body size: AS3001F (3/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS3001F-08-3 Body size: AS3001F (3/8 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS3001F-10-3 Body size: AS3001F (3/8 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS3001F-12-3 Body size: AS3001F (3/8 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS3001F-07-3 Body size: AS3001F (3/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS3001F-09-3 Body size: AS3001F (3/8 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3001F-11-3 Body size: AS3001F (3/8 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4001F-10-3 Body size: AS4001F (1/2 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS4001F-12-3 Body size: AS4001F (1/2 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS4001F-11-3 Body size: AS4001F (1/2 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4001F-13-3 Body size: AS4001F (1/2 class) | Tube OD: ø1/2 in | Tube sizing: Inch
Speed ControllersSMC
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-1F-3 Panel Mount Speed Controller (Inline, One-touch)

Brand SMC·Speed Controllers

Available part numbers (28)

AS1001F-23-3, AS1001F-04-3, AS1001F-06-3, AS1001F-01-3, AS1001F-03-3, AS1001F-05-3, AS1001F-07-3, AS2001F-04-3, AS2001F-06-3, AS2001F-03-3 + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1001F-23-3Body size: AS1001F (M5 class) | Tube OD: ø3.2 mm | Tube sizing: Metric
AS1001F-04-3Body size: AS1001F (M5 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS1001F-06-3Body size: AS1001F (M5 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS1001F-01-3Body size: AS1001F (M5 class) | Tube OD: ø1/8 in | Tube sizing: Inch
AS1001F-03-3Body size: AS1001F (M5 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS1001F-05-3Body size: AS1001F (M5 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS1001F-07-3Body size: AS1001F (M5 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2001F-04-3Body size: AS2001F (1/8 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS2001F-06-3Body size: AS2001F (1/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2001F-03-3Body size: AS2001F (1/8 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS2001F-05-3Body size: AS2001F (1/8 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS2001F-07-3Body size: AS2001F (1/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2051F-06-3Body size: AS2051F (1/4 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2051F-08-3Body size: AS2051F (1/4 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS2051F-05-3Body size: AS2051F (1/4 class) | Tube OD: ø3/16 in | Tube sizing: Inch
AS2051F-07-3Body size: AS2051F (1/4 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2051F-09-3Body size: AS2051F (1/4 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3001F-06-3Body size: AS3001F (3/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS3001F-08-3Body size: AS3001F (3/8 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS3001F-10-3Body size: AS3001F (3/8 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS3001F-12-3Body size: AS3001F (3/8 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS3001F-07-3Body size: AS3001F (3/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS3001F-09-3Body size: AS3001F (3/8 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3001F-11-3Body size: AS3001F (3/8 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4001F-10-3Body size: AS4001F (1/2 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS4001F-12-3Body size: AS4001F (1/2 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS4001F-11-3Body size: AS4001F (1/2 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4001F-13-3Body size: AS4001F (1/2 class) | Tube OD: ø1/2 in | Tube sizing: Inch
