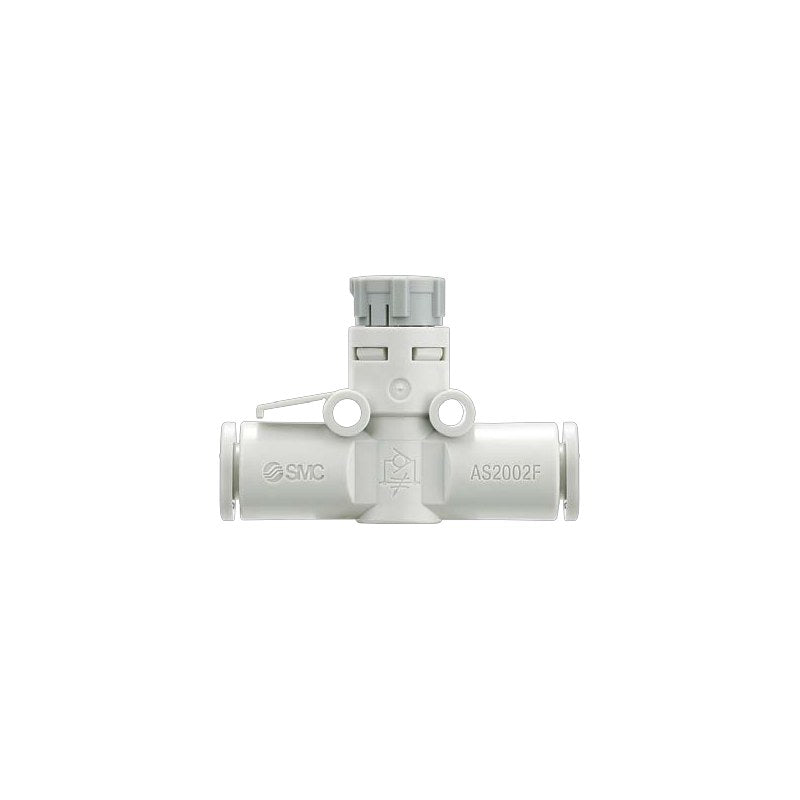

SMC AS-A Inline Speed Controller (Push-Lock, One-touch Fitting)

SMC AS-A Inline Speed Controller (Push-Lock, One-touch Fitting)

SMC AS2F-A inline speed controllers with one-touch fittings on both ends and a large push-lock handle for quick needle locking.

Key features

  • Push-lock handle about twice the former diameter for easy fine adjustment and one-push locking
  • Face-contact rotation stopper gives repeatable flow versus handle turns
  • About 27% lighter than the previous model (AS1002F-04A: 4.0 g)
  • Mounting by direct, L-bracket (AS-0L), DIN rail bracket (AS-0D), holder or panel mount adapter (suffix 3 / PMA-)
  • Manifold long bolt sets AS-3B/4B for 4 to 10 stations; index plate for flow direction identification

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60 °C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body material PBT / brass (electroless nickel plated)
Release bushing colour Light grey (metric), orange (inch)
Options (not expanded) 3: panel mount adapter; -X12, -X21, -X214, 10- (clean)
Source SMC Korea catalog CAT.KS20-243C (SMCKR_AS_inline_push_.pdf), p. 1-8
AS1002F-23A Body size: AS1002F (M5 class) | Tube OD: ø3.2 mm | Tube sizing: Metric
AS1002F-04A Body size: AS1002F (M5 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS1002F-06A Body size: AS1002F (M5 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS1002F-01A Body size: AS1002F (M5 class) | Tube OD: ø1/8 in | Tube sizing: Inch
AS1002F-03A Body size: AS1002F (M5 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS1002F-07A Body size: AS1002F (M5 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2002F-04A Body size: AS2002F (1/8 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS2002F-06A Body size: AS2002F (1/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2002F-03A Body size: AS2002F (1/8 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS2002F-07A Body size: AS2002F (1/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2052F-06A Body size: AS2052F (1/4 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2052F-08A Body size: AS2052F (1/4 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS2052F-07A Body size: AS2052F (1/4 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2052F-09A Body size: AS2052F (1/4 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3002F-06A Body size: AS3002F (3/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS3002F-08A Body size: AS3002F (3/8 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS3002F-10A Body size: AS3002F (3/8 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS3002F-12A Body size: AS3002F (3/8 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS3002F-07A Body size: AS3002F (3/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS3002F-09A Body size: AS3002F (3/8 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3002F-11A Body size: AS3002F (3/8 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4002F-10A Body size: AS4002F (1/2 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS4002F-12A Body size: AS4002F (1/2 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS4002F-11A Body size: AS4002F (1/2 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4002F-13A Body size: AS4002F (1/2 class) | Tube OD: ø1/2 in | Tube sizing: Inch
Speed ControllersSMC
25 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-A Inline Speed Controller (Push-Lock, One-touch Fitting)

Brand SMC·Speed Controllers

Available part numbers (25)

AS1002F-23A, AS1002F-04A, AS1002F-06A, AS1002F-01A, AS1002F-03A, AS1002F-07A, AS2002F-04A, AS2002F-06A, AS2002F-03A, AS2002F-07A + 15 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1002F-23ABody size: AS1002F (M5 class) | Tube OD: ø3.2 mm | Tube sizing: Metric
AS1002F-04ABody size: AS1002F (M5 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS1002F-06ABody size: AS1002F (M5 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS1002F-01ABody size: AS1002F (M5 class) | Tube OD: ø1/8 in | Tube sizing: Inch
AS1002F-03ABody size: AS1002F (M5 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS1002F-07ABody size: AS1002F (M5 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2002F-04ABody size: AS2002F (1/8 class) | Tube OD: ø4 mm | Tube sizing: Metric
AS2002F-06ABody size: AS2002F (1/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2002F-03ABody size: AS2002F (1/8 class) | Tube OD: ø5/32 in | Tube sizing: Inch
AS2002F-07ABody size: AS2002F (1/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2052F-06ABody size: AS2052F (1/4 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS2052F-08ABody size: AS2052F (1/4 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS2052F-07ABody size: AS2052F (1/4 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS2052F-09ABody size: AS2052F (1/4 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3002F-06ABody size: AS3002F (3/8 class) | Tube OD: ø6 mm | Tube sizing: Metric
AS3002F-08ABody size: AS3002F (3/8 class) | Tube OD: ø8 mm | Tube sizing: Metric
AS3002F-10ABody size: AS3002F (3/8 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS3002F-12ABody size: AS3002F (3/8 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS3002F-07ABody size: AS3002F (3/8 class) | Tube OD: ø1/4 in | Tube sizing: Inch
AS3002F-09ABody size: AS3002F (3/8 class) | Tube OD: ø5/16 in | Tube sizing: Inch
AS3002F-11ABody size: AS3002F (3/8 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4002F-10ABody size: AS4002F (1/2 class) | Tube OD: ø10 mm | Tube sizing: Metric
AS4002F-12ABody size: AS4002F (1/2 class) | Tube OD: ø12 mm | Tube sizing: Metric
AS4002F-11ABody size: AS4002F (1/2 class) | Tube OD: ø3/8 in | Tube sizing: Inch
AS4002F-13ABody size: AS4002F (1/2 class) | Tube OD: ø1/2 in | Tube sizing: Inch
