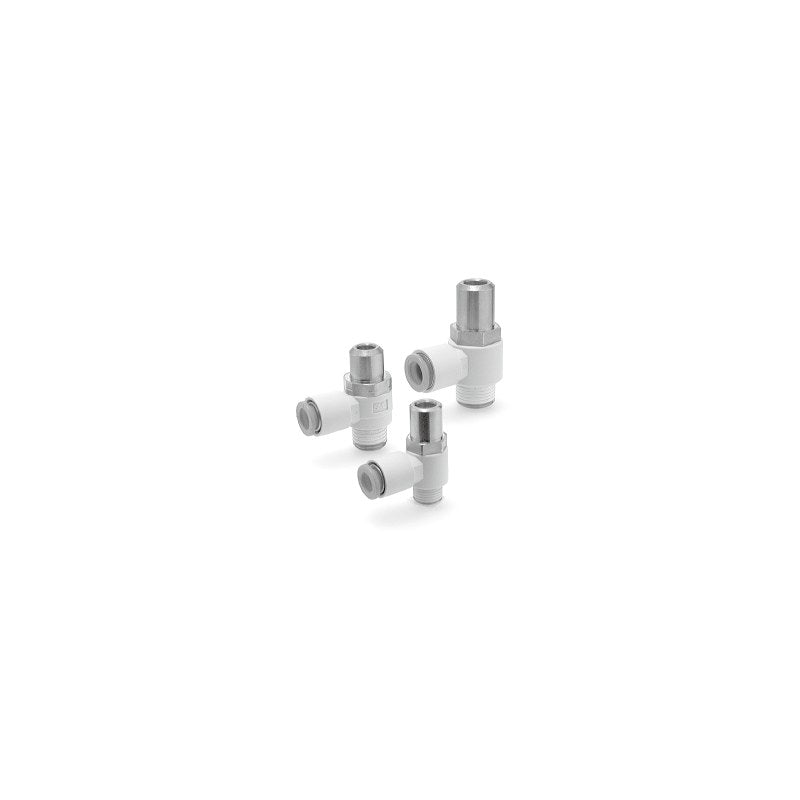

SMC AS-D Speed Controller, Screwdriver Adjust (Elbow/Universal)

SMC AS-D Speed Controller, Screwdriver Adjust (Elbow/Universal)

SMC AS1F-D series speed controller with one-touch fitting, elbow or universal type, adjusted with a flat-blade screwdriver to prevent careless manual changes of the flow setting.

Key features

  • Needle adjusted with a flat-blade screwdriver; no handle to turn by hand
  • Elbow (AS21F) and universal (AS31F) types
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8 and R1/2 ports, tube OD ø3.2 to ø12 mm
  • Meter-out and meter-in identified by flow direction symbol on body
  • 10-32UNF, NPT and inch tube versions available
  • Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Adjustment Flat-blade screwdriver (D type)
Applicable tubing Nylon, soft nylon, polyurethane
Seal Sealant on R threads (S); gasket on M5
Source SMC Korea catalog AS-D (SMCKR_AS________-D.pdf), PDF p. 1-6
AS1201F-M5-23D Body type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1211F-M5-23D Body type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1201F-M5-04D Body type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1211F-M5-04D Body type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1201F-M5-06D Body type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211F-M5-06D Body type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201F-01-23SD Body type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2211F-01-23SD Body type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2201F-01-04SD Body type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2211F-01-04SD Body type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2201F-01-06SD Body type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2211F-01-06SD Body type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2201F-01-08SD Body type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211F-01-08SD Body type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201F-01-10SD Body type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm
AS2211F-01-10SD Body type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm
AS2201F-02-04SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2211F-02-04SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2201F-02-06SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2211F-02-06SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2201F-02-08SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2211F-02-08SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2201F-02-10SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211F-02-10SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-06SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3211F-02-06SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3201F-02-08SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3211F-02-08SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3201F-02-10SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211F-02-10SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-12SD Body type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3211F-02-12SD Body type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3201F-03-06SD Body type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3211F-03-06SD Body type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3201F-03-08SD Body type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3211F-03-08SD Body type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3201F-03-10SD Body type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211F-03-10SD Body type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3201F-03-12SD Body type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3211F-03-12SD Body type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4201F-04-10SD Body type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4211F-04-10SD Body type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4201F-04-12SD Body type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211F-04-12SD Body type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
AS1301F-M5-23D Body type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1311F-M5-23D Body type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1301F-M5-04D Body type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1311F-M5-04D Body type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1301F-M5-06D Body type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1311F-M5-06D Body type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2301F-01-23SD Body type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2311F-01-23SD Body type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2301F-01-04SD Body type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2311F-01-04SD Body type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2301F-01-06SD Body type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2311F-01-06SD Body type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2301F-01-08SD Body type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2311F-01-08SD Body type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2301F-02-04SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2311F-02-04SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2301F-02-06SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2311F-02-06SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2301F-02-08SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2311F-02-08SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2301F-02-10SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2311F-02-10SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3301F-02-06SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3311F-02-06SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3301F-02-08SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3311F-02-08SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3301F-02-10SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3311F-02-10SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3301F-02-12SD Body type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3311F-02-12SD Body type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3301F-03-06SD Body type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3311F-03-06SD Body type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3301F-03-08SD Body type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3311F-03-08SD Body type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3301F-03-10SD Body type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3311F-03-10SD Body type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3301F-03-12SD Body type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3311F-03-12SD Body type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4301F-04-10SD Body type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4311F-04-10SD Body type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4301F-04-12SD Body type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4311F-04-12SD Body type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
Speed ControllersSMC
86 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-D Speed Controller, Screwdriver Adjust (Elbow/Universal)

Brand SMC·Speed Controllers

Available part numbers (86)

AS1201F-M5-23D, AS1211F-M5-23D, AS1201F-M5-04D, AS1211F-M5-04D, AS1201F-M5-06D, AS1211F-M5-06D, AS2201F-01-23SD, AS2211F-01-23SD, AS2201F-01-04SD, AS2211F-01-04SD + 76 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201F-M5-23DBody type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1211F-M5-23DBody type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1201F-M5-04DBody type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1211F-M5-04DBody type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1201F-M5-06DBody type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211F-M5-06DBody type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201F-01-23SDBody type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2211F-01-23SDBody type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2201F-01-04SDBody type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2211F-01-04SDBody type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2201F-01-06SDBody type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2211F-01-06SDBody type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2201F-01-08SDBody type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211F-01-08SDBody type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201F-01-10SDBody type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm
AS2211F-01-10SDBody type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm
AS2201F-02-04SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2211F-02-04SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2201F-02-06SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2211F-02-06SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2201F-02-08SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2211F-02-08SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2201F-02-10SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211F-02-10SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-06SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3211F-02-06SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3201F-02-08SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3211F-02-08SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3201F-02-10SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211F-02-10SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201F-02-12SDBody type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3211F-02-12SDBody type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3201F-03-06SDBody type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3211F-03-06SDBody type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3201F-03-08SDBody type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3211F-03-08SDBody type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3201F-03-10SDBody type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211F-03-10SDBody type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3201F-03-12SDBody type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3211F-03-12SDBody type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4201F-04-10SDBody type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4211F-04-10SDBody type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4201F-04-12SDBody type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211F-04-12SDBody type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
AS1301F-M5-23DBody type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1311F-M5-23DBody type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS1301F-M5-04DBody type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1311F-M5-04DBody type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1301F-M5-06DBody type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1311F-M5-06DBody type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2301F-01-23SDBody type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2311F-01-23SDBody type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm (use ø1/8 in)
AS2301F-01-04SDBody type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2311F-01-04SDBody type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2301F-01-06SDBody type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2311F-01-06SDBody type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2301F-01-08SDBody type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2311F-01-08SDBody type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2301F-02-04SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2311F-02-04SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2301F-02-06SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2311F-02-06SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2301F-02-08SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2311F-02-08SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2301F-02-10SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2311F-02-10SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3301F-02-06SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS3311F-02-06SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS3301F-02-08SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3311F-02-08SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3301F-02-10SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3311F-02-10SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3301F-02-12SDBody type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm
AS3311F-02-12SDBody type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm
AS3301F-03-06SDBody type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3311F-03-06SDBody type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3301F-03-08SDBody type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3311F-03-08SDBody type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3301F-03-10SDBody type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3311F-03-10SDBody type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3301F-03-12SDBody type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3311F-03-12SDBody type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4301F-04-10SDBody type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4311F-04-10SDBody type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4301F-04-12SDBody type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4311F-04-12SDBody type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
