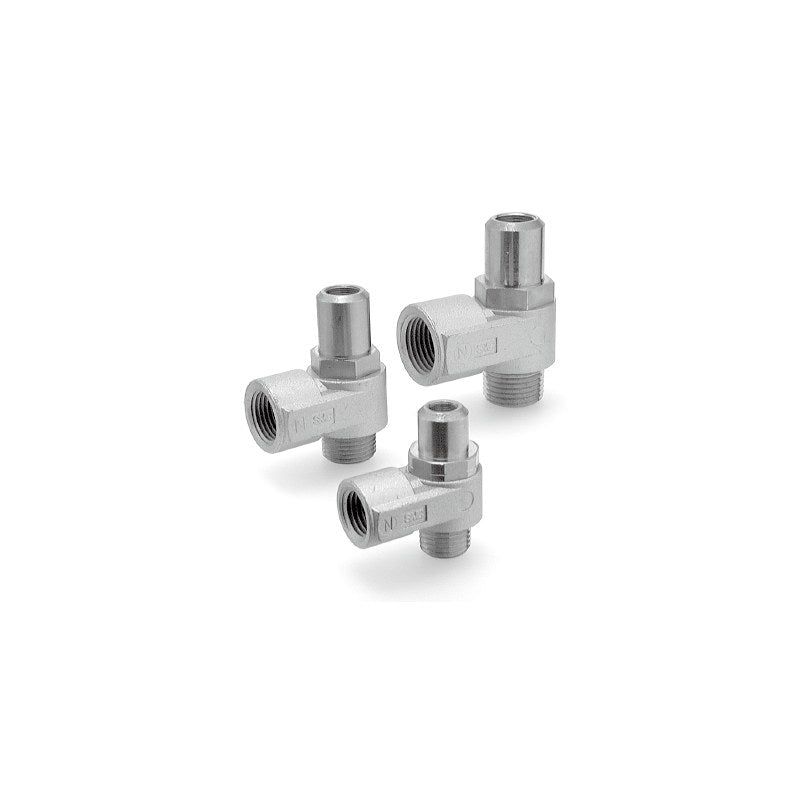

SMC AS-D Speed Controller, Screwdriver Adjust (Standard Metal Elbow)

SMC AS20-D series standard metal-body elbow speed controller with male cylinder thread and female valve-side thread, adjusted with a flat-blade screwdriver to prevent careless manual changes of the flow setting.

Key features

Needle adjusted with a flat-blade screwdriver; no handle to turn by hand
Metal elbow body: male R thread on cylinder side, female Rc thread on valve side
Sizes for M5, 1/8, 1/4 (AS22 and AS32 bodies), 3/8 and 1/2
Meter-out and meter-in versions identified by flow direction symbol
Brass parts electroless nickel plated; G (F) and NPT (N) threads available

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Adjustment	Flat-blade screwdriver (D type)
Body type	Standard metal elbow, female port to valve side
Seal	Sealant on R threads (S); gasket on M5
Source	SMC Korea catalog AS-D standard (SMCKR_AS________-D.pdf), PDF p. 16-18

AS1200-M5-D		Body size: Size 1 \| Control: Meter-out \| Ports (male / female): M5x0.8 / M5x0.8
AS1210-M5-D		Body size: Size 1 \| Control: Meter-in \| Ports (male / female): M5x0.8 / M5x0.8
AS2200-01-SD		Body size: Size 2 \| Control: Meter-out \| Ports (male / female): R1/8 / Rc1/8
AS2210-01-SD		Body size: Size 2 \| Control: Meter-in \| Ports (male / female): R1/8 / Rc1/8
AS2200-02-SD		Body size: Size 2 \| Control: Meter-out \| Ports (male / female): R1/4 / Rc1/4
AS2210-02-SD		Body size: Size 2 \| Control: Meter-in \| Ports (male / female): R1/4 / Rc1/4
AS3200-02-SD		Body size: Size 3 \| Control: Meter-out \| Ports (male / female): R1/4 / Rc3/8
AS3210-02-SD		Body size: Size 3 \| Control: Meter-in \| Ports (male / female): R1/4 / Rc3/8
AS3200-03-SD		Body size: Size 3 \| Control: Meter-out \| Ports (male / female): R3/8 / Rc3/8
AS3210-03-SD		Body size: Size 3 \| Control: Meter-in \| Ports (male / female): R3/8 / Rc3/8
AS4200-04-SD		Body size: Size 4 \| Control: Meter-out \| Ports (male / female): R1/2 / Rc1/2
AS4210-04-SD		Body size: Size 4 \| Control: Meter-in \| Ports (male / female): R1/2 / Rc1/2

Speed ControllersSMC

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-D Speed Controller, Screwdriver Adjust (Standard Metal Elbow)

Brand SMC·Speed Controllers

Available part numbers (12)

AS1200-M5-D, AS1210-M5-D, AS2200-01-SD, AS2210-01-SD, AS2200-02-SD, AS2210-02-SD, AS3200-02-SD, AS3210-02-SD, AS3200-03-SD, AS3210-03-SD + 2 more — see full table ↓
