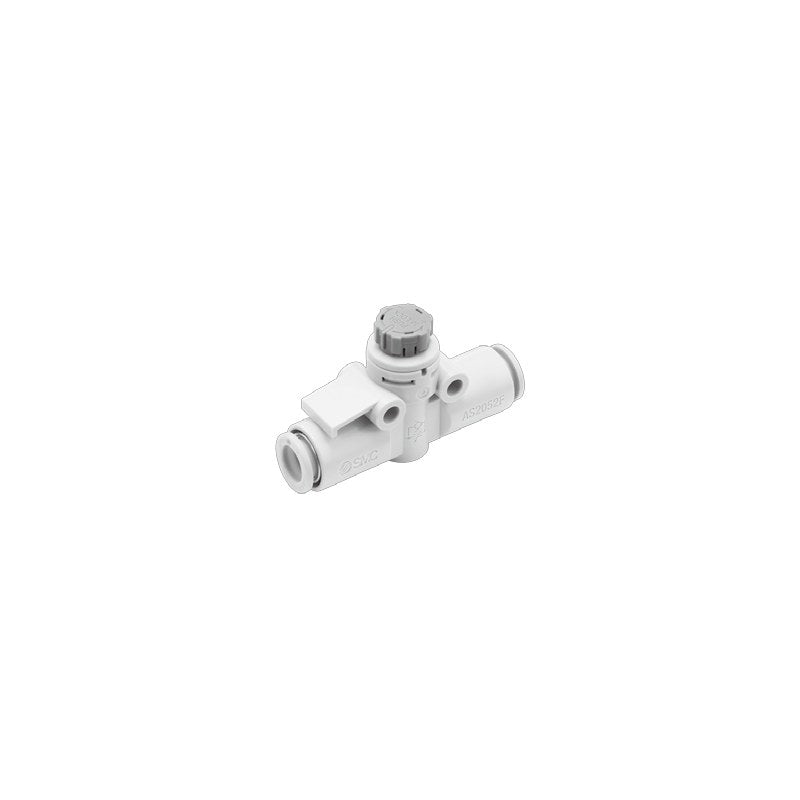

SMC AS-FM/FC Inline Low Speed Controller with One-touch Fitting

SMC AS-FM/FC series inline Push-Lock low speed controller with one-touch fittings on both ends, for cylinder speeds of 1-50 mm/s (FM) or 50-150 mm/s (FC).

Key features

Inline body, tube to tube connection with one-touch fittings both ends
Low speed control: FM 1-50 mm/s, FC 50-150 mm/s
Push-Lock handle for tool-free locking
Body sizes AS100 (M5 class), AS200 (1/8 class), AS205 (1/4 class) for ø3.2 to ø8 mm and 1/8 to 5/16 in tubing
DIN rail / L bracket mounting options; made to order -X12, -X21, -X214, 10-

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Applicable tubing	Nylon, soft nylon, polyurethane, FEP, PFA
Type	Inline
Source	SMC Korea catalog CAT.KS20-267A (SMCKR_AS-FM_FC__AS-FSM_FSC_.pdf), PDF p. 4-19

AS1002FM-01A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø1/8 in
AS1002FC-01A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø1/8 in
AS1002FM-03A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø5/32 in
AS1002FC-03A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø5/32 in
AS1002FM-04A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø4 mm
AS1002FC-04A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø4 mm
AS1002FM-06A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø6 mm
AS1002FC-06A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø6 mm
AS1002FM-07A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø1/4 in
AS1002FC-07A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø1/4 in
AS1002FM-23A		Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø3.2 mm
AS1002FC-23A		Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø3.2 mm
AS2002FM-03A		Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø5/32 in
AS2002FC-03A		Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø5/32 in
AS2002FM-04A		Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø4 mm
AS2002FC-04A		Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø4 mm
AS2002FM-06A		Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø6 mm
AS2002FC-06A		Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø6 mm
AS2002FM-07A		Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø1/4 in
AS2002FC-07A		Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø1/4 in
AS2052FM-06A		Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø6 mm
AS2052FC-06A		Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø6 mm
AS2052FM-07A		Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø1/4 in
AS2052FC-07A		Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø1/4 in
AS2052FM-08A		Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø8 mm
AS2052FC-08A		Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø8 mm
AS2052FM-09A		Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø5/16 in
AS2052FC-09A		Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø5/16 in

Speed ControllersSMC

28 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-FM/FC Inline Low Speed Controller with One-touch Fitting

Brand SMC·Speed Controllers

Available part numbers (28)

AS1002FM-01A, AS1002FC-01A, AS1002FM-03A, AS1002FC-03A, AS1002FM-04A, AS1002FC-04A, AS1002FM-06A, AS1002FC-06A, AS1002FM-07A, AS1002FC-07A + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AS1002FM-01A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø1/8 in
	AS1002FC-01A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø1/8 in
	AS1002FM-03A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø5/32 in
	AS1002FC-03A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø5/32 in
	AS1002FM-04A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø4 mm
	AS1002FC-04A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø4 mm
	AS1002FM-06A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø6 mm
	AS1002FC-06A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø6 mm
	AS1002FM-07A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø1/4 in
	AS1002FC-07A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø1/4 in
	AS1002FM-23A	Speed range: 1-50 mm/s \| Body size: M5 class \| Tube OD: ø3.2 mm
	AS1002FC-23A	Speed range: 50-150 mm/s \| Body size: M5 class \| Tube OD: ø3.2 mm
	AS2002FM-03A	Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø5/32 in
	AS2002FC-03A	Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø5/32 in
	AS2002FM-04A	Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø4 mm
	AS2002FC-04A	Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø4 mm
	AS2002FM-06A	Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø6 mm
	AS2002FC-06A	Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø6 mm
	AS2002FM-07A	Speed range: 1-50 mm/s \| Body size: 1/8 class \| Tube OD: ø1/4 in
	AS2002FC-07A	Speed range: 50-150 mm/s \| Body size: 1/8 class \| Tube OD: ø1/4 in
	AS2052FM-06A	Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø6 mm
	AS2052FC-06A	Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø6 mm
	AS2052FM-07A	Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø1/4 in
	AS2052FC-07A	Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø1/4 in
	AS2052FM-08A	Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø8 mm
	AS2052FC-08A	Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø8 mm
	AS2052FM-09A	Speed range: 1-50 mm/s \| Body size: 1/4 class \| Tube OD: ø5/16 in
	AS2052FC-09A	Speed range: 50-150 mm/s \| Body size: 1/4 class \| Tube OD: ø5/16 in
