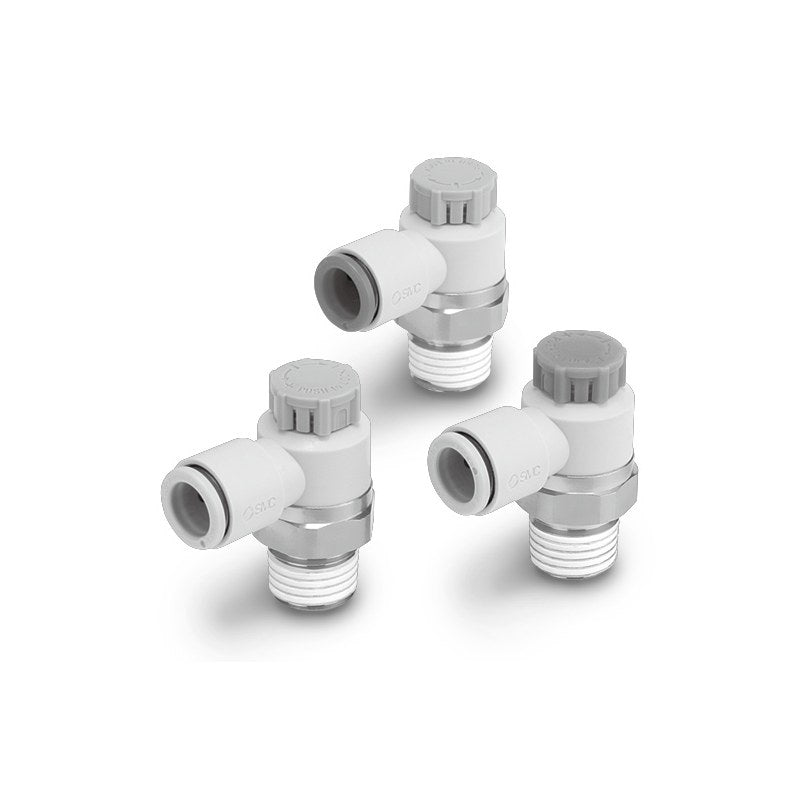

SMC AS-FM/FC Low Speed Controller with One-touch Fitting (Elbow/Universal)

SMC AS-FM/FC Low Speed Controller with One-touch Fitting (Elbow/Universal)

SMC AS-FM/FC series Push-Lock low speed controller with one-touch fitting, elbow or universal type, for cylinder speeds of 1-50 mm/s (FM) or 50-150 mm/s (FC).

Key features

  • Improved resolution in the low-flow range: FM 1-50 mm/s, FC 50-150 mm/s
  • Push-Lock handle, no lock nut or spanner needed; meter-out grey, meter-in light blue
  • Body size 1 (M5, hex 8 mm E or 9 mm) and size 2 (R1/8, R1/4 with or without sealant S)
  • Tube direction rotates 360°; milli tube release bushing light grey, inch orange
  • NPT, G (packing seal) and 10-32UNF versions also offered
  • Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve), 10- (clean)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body material Resin / brass (electroless nickel plated)
Source SMC Korea catalog CAT.KS20-267A (SMCKR_AS-FM_FC__AS-FSM_FSC_.pdf), PDF p. 1-15
AS1201FM-M5E-02A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-02A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-02A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-02A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-02A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-02A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-02A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-02A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS2201FM-01-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FM-01-04SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FM-01-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FM-01-04SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FC-01-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FC-01-04SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FC-01-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FC-01-04SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FM-01-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FM-01-06SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FM-01-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FM-01-06SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FC-01-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FC-01-06SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FC-01-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FC-01-06SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FM-01-08A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FM-01-08SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FM-01-08A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FM-01-08SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FC-01-08A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FC-01-08SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FC-01-08A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FC-01-08SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FM-01-10A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FM-01-10SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FM-01-10A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FM-01-10SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FC-01-10A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FC-01-10SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FC-01-10A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FC-01-10SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FM-01-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FM-01-23SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FM-01-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FM-01-23SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FC-01-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FC-01-23SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FC-01-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FC-01-23SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FM-02-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FM-02-04SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FM-02-04A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FM-02-04SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FC-02-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FC-02-04SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FC-02-04A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FC-02-04SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FM-02-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FM-02-06SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FM-02-06A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FM-02-06SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FC-02-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FC-02-06SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FC-02-06A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FC-02-06SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FM-02-08A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FM-02-08SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FM-02-08A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FM-02-08SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FC-02-08A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FC-02-08SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FC-02-08A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FC-02-08SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FM-02-10A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FM-02-10SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FM-02-10A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FM-02-10SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FC-02-10A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FC-02-10SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FC-02-10A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FC-02-10SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FM-02-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FM-02-23SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FM-02-23A Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FM-02-23SA Speed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FC-02-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FC-02-23SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FC-02-23A Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FC-02-23SA Speed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FM-01-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FM-01-04SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FM-01-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FM-01-04SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FC-01-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FC-01-04SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FC-01-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FC-01-04SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FM-01-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FM-01-06SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FM-01-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FM-01-06SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FC-01-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FC-01-06SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FC-01-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FC-01-06SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FM-01-08A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FM-01-08SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FM-01-08A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FM-01-08SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FC-01-08A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FC-01-08SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FC-01-08A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FC-01-08SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FM-01-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FM-01-23SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FM-01-23A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FM-01-23SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FC-01-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FC-01-23SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FC-01-23A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FC-01-23SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FM-02-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FM-02-04SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FM-02-04A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FM-02-04SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FC-02-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FC-02-04SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FC-02-04A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FC-02-04SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FM-02-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FM-02-06SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FM-02-06A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FM-02-06SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FC-02-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FC-02-06SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FC-02-06A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FC-02-06SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FM-02-08A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FM-02-08SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FM-02-08A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FM-02-08SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FC-02-08A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FC-02-08SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FC-02-08A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FC-02-08SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FM-02-10A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FM-02-10SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FM-02-10A Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FM-02-10SA Speed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301FC-02-10A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FC-02-10SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FC-02-10A Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FC-02-10SA Speed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
Speed ControllersSMC
200 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-FM/FC Low Speed Controller with One-touch Fitting (Elbow/Universal)

Brand SMC·Speed Controllers

Available part numbers (200)

AS1201FM-M5E-02A, AS1201FM-M5-02A, AS1211FM-M5E-02A, AS1211FM-M5-02A, AS1201FC-M5E-02A, AS1201FC-M5-02A, AS1211FC-M5E-02A, AS1211FC-M5-02A, AS1201FM-M5E-04A, AS1201FM-M5-04A + 190 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201FM-M5E-02ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-02ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-02ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-02ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-02ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-02ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-02ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-02ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201FM-M5E-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201FM-M5-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211FM-M5E-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211FM-M5-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1201FC-M5E-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201FC-M5-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211FC-M5E-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211FC-M5-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301FM-M5E-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301FM-M5-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311FM-M5E-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311FM-M5-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301FC-M5E-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301FC-M5-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311FC-M5E-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311FC-M5-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS2201FM-01-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FM-01-04SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FM-01-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FM-01-04SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FC-01-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FC-01-04SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FC-01-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FC-01-04SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FM-01-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FM-01-06SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FM-01-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FM-01-06SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FC-01-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FC-01-06SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FC-01-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FC-01-06SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FM-01-08ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FM-01-08SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FM-01-08ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FM-01-08SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FC-01-08ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FC-01-08SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FC-01-08ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FC-01-08SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FM-01-10ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FM-01-10SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FM-01-10ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FM-01-10SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FC-01-10ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FC-01-10SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FC-01-10ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FC-01-10SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FM-01-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FM-01-23SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FM-01-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FM-01-23SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FC-01-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FC-01-23SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FC-01-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FC-01-23SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FM-02-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FM-02-04SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FM-02-04ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FM-02-04SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FC-02-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FC-02-04SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FC-02-04ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FC-02-04SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FM-02-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FM-02-06SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FM-02-06ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FM-02-06SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FC-02-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FC-02-06SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FC-02-06ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FC-02-06SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FM-02-08ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FM-02-08SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FM-02-08ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FM-02-08SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FC-02-08ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FC-02-08SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FC-02-08ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FC-02-08SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FM-02-10ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FM-02-10SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FM-02-10ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FM-02-10SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FC-02-10ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FC-02-10SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FC-02-10ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FC-02-10SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FM-02-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FM-02-23SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FM-02-23ASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FM-02-23SASpeed range: 1-50 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FC-02-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FC-02-23SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FC-02-23ASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FC-02-23SASpeed range: 50-150 mm/s | Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FM-01-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FM-01-04SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FM-01-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FM-01-04SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FC-01-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FC-01-04SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FC-01-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FC-01-04SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FM-01-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FM-01-06SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FM-01-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FM-01-06SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FC-01-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FC-01-06SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FC-01-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FC-01-06SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FM-01-08ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FM-01-08SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FM-01-08ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FM-01-08SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FC-01-08ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FC-01-08SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FC-01-08ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FC-01-08SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FM-01-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FM-01-23SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FM-01-23ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FM-01-23SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FC-01-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FC-01-23SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FC-01-23ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FC-01-23SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FM-02-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FM-02-04SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FM-02-04ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FM-02-04SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FC-02-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FC-02-04SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FC-02-04ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FC-02-04SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FM-02-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FM-02-06SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FM-02-06ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FM-02-06SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FC-02-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FC-02-06SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FC-02-06ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FC-02-06SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FM-02-08ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FM-02-08SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FM-02-08ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FM-02-08SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FC-02-08ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FC-02-08SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FC-02-08ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FC-02-08SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FM-02-10ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FM-02-10SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FM-02-10ASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FM-02-10SASpeed range: 1-50 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301FC-02-10ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FC-02-10SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FC-02-10ASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FC-02-10SASpeed range: 50-150 mm/s | Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
