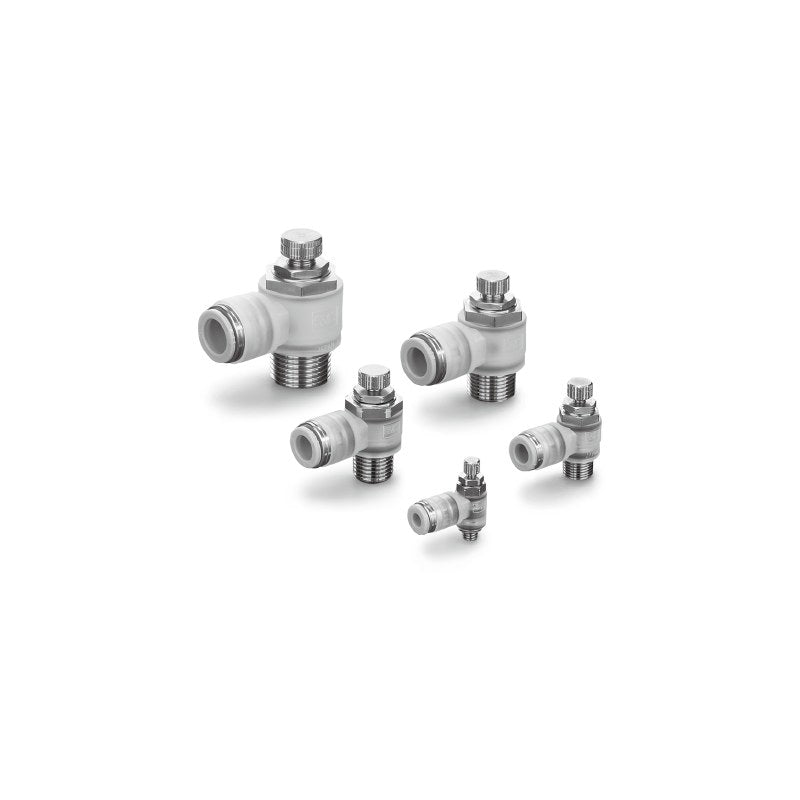

SMC AS-FPQ/FPG Clean Speed Controller with One-touch Fitting (Elbow)

SMC AS-FPQ/FPG Clean Speed Controller with One-touch Fitting (Elbow)

SMC AS-FPQ (brass, electroless nickel) and AS-FPG (stainless SUS304) low-particle-generation elbow speed controllers with one-touch fitting for clean room use.

Key features

  • Low particle generation, ISO Class 3, for clean room applications
  • Polypropylene resin body and release bushing (light grey FPQ, light blue FPG)
  • Metal parts: brass with electroless nickel (FPQ) or stainless steel SUS304 (FPG)
  • 21- prefix version (FPQ only): copper-, fluorine- and silicone-free plus low particle generation
  • Body sizes 1 to 4 for M5, R1/8, R1/4, R3/8 and R1/2 ports, tube OD ø4 to ø12 mm
  • Round lock nut option (-J) available

Specifications

Fluid Air
Particle generation ISO Class 3
Proof pressure (20°C) 1.5 MPa
Max. operating pressure (20°C) 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Body type Elbow, one-touch fitting
Grease Fluorine grease (21-: lithium soap grease)
Recommended tubing Clean series polyurethane 10-TU
Source SMC Korea catalog AS-FPQ/FPG (SMCKR_AS-FPQ_AS-FPG.pdf), p. 709-714; (21-) AS-FPQ/FPG (SMCKR__21-_AS-FP_A.pdf), p. 1291-1293
AS1201FPQ-M5-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1201FPG-M5-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1201FPQ-M5-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1201FPG-M5-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211FPQ-M5-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1211FPG-M5-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1211FPQ-M5-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS1211FPG-M5-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201FPQ-01-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2201FPG-01-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
AS2201FPQ-01-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2201FPG-01-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2201FPQ-01-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2201FPG-01-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211FPQ-01-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2211FPG-01-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
AS2211FPQ-01-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2211FPG-01-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2211FPQ-01-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2211FPG-01-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201FPQ-02-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2201FPG-02-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
AS2201FPQ-02-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2201FPG-02-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2201FPQ-02-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2201FPG-02-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2201FPQ-02-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2201FPG-02-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211FPQ-02-04 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2211FPG-02-04 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
AS2211FPQ-02-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2211FPG-02-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2211FPQ-02-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2211FPG-02-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2211FPQ-02-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS2211FPG-02-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201FPQ-03-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3201FPG-03-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
AS3201FPQ-03-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3201FPG-03-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3201FPQ-03-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3201FPG-03-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3201FPQ-03-12 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3201FPG-03-12 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
AS3211FPQ-03-06 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3211FPG-03-06 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
AS3211FPQ-03-08 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3211FPG-03-08 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3211FPQ-03-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3211FPG-03-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS3211FPQ-03-12 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS3211FPG-03-12 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
AS4201FPQ-04-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4201FPG-04-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4201FPQ-04-12 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4201FPG-04-12 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211FPQ-04-10 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4211FPG-04-10 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4211FPQ-04-12 Spec: Standard clean | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
AS4211FPG-04-12 Spec: Standard clean | Metal parts: Stainless SUS304 (FPG) | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
21-AS1201FPQ-M5-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
21-AS1201FPQ-M5-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
21-AS1211FPQ-M5-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
21-AS1211FPQ-M5-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
21-AS2201FPQ-01-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm
21-AS2201FPQ-01-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
21-AS2201FPQ-01-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
21-AS2211FPQ-01-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm
21-AS2211FPQ-01-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
21-AS2211FPQ-01-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
21-AS2201FPQ-02-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm
21-AS2201FPQ-02-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
21-AS2201FPQ-02-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
21-AS2201FPQ-02-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
21-AS2211FPQ-02-04 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm
21-AS2211FPQ-02-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
21-AS2211FPQ-02-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
21-AS2211FPQ-02-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
21-AS3201FPQ-03-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm
21-AS3201FPQ-03-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
21-AS3201FPQ-03-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
21-AS3201FPQ-03-12 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm
21-AS3211FPQ-03-06 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm
21-AS3211FPQ-03-08 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
21-AS3211FPQ-03-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
21-AS3211FPQ-03-12 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm
21-AS4201FPQ-04-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
21-AS4201FPQ-04-12 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
21-AS4211FPQ-04-10 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
21-AS4211FPQ-04-12 Spec: 21- Cu/F/Si-free | Metal parts: Brass, electroless Ni (FPQ) | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
