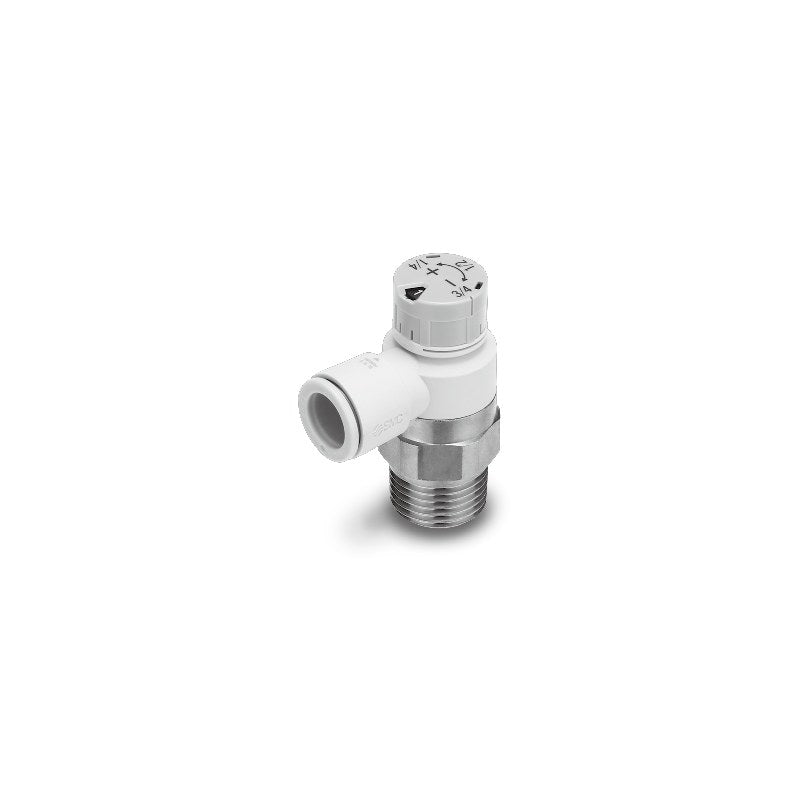

SMC AS-FSA Compact Speed Controller with Scale (Elbow/Universal)

SMC AS-FSA series compact speed controller with one-touch fitting and a needle-turn scale window, elbow or universal type, brass with electroless nickel plating.

Key features

Scale window with vernier lets the flow setting be read and repeated in 1/4-turn steps (32 divisions size 1, 40 divisions sizes 2-4)
Height reduced by up to 5.5 mm versus the previous scale type; scale readable from 360°
Body sizes 1 to 4 for M5, 1/8, 1/4, 3/8 and 1/2 ports; R thread with or without sealant (S)
Size 1 hex across flats 8 mm (E) or 9 mm; G thread packing seal, NPT and 10-32UNF versions also offered
Meter-out (grey handle) and meter-in (light blue handle) versions
Made to order: -X12, -X21, -X214 and 10- (clean)

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60°C (no freezing)
Applicable tubing	Nylon, soft nylon, polyurethane, FEP, PFA
Body material	PBT / brass (electroless nickel plated)
Needle turns	8 (size 1), 10 (sizes 2-4)
Source	SMC Korea catalog CAT.KS20-280A (SMCKR_AS-FSA_AS-FSGA.pdf), PDF p. 1-16

AS1201FS-M5E-01A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-01A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
AS1211FS-M5E-01A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-01A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
AS1201FS-M5E-02A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-02A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 9 mm
AS1211FS-M5E-02A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-02A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 9 mm
AS1201FS-M5E-03A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-03A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
AS1211FS-M5E-03A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-03A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
AS1201FS-M5E-04A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-04A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
AS1211FS-M5E-04A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-04A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
AS1201FS-M5E-06A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-06A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
AS1211FS-M5E-06A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-06A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
AS1201FS-M5E-07A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-07A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
AS1211FS-M5E-07A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-07A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
AS1201FS-M5E-23A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
AS1201FS-M5-23A		Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
AS1211FS-M5E-23A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
AS1211FS-M5-23A		Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
AS1301FS-M5E-01A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-01A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
AS1311FS-M5E-01A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-01A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
AS1301FS-M5E-03A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-03A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
AS1311FS-M5E-03A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-03A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
AS1301FS-M5E-04A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-04A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
AS1311FS-M5E-04A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-04A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
AS1301FS-M5E-06A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-06A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
AS1311FS-M5E-06A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-06A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
AS1301FS-M5E-07A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-07A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
AS1311FS-M5E-07A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-07A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
AS1301FS-M5E-23A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
AS1301FS-M5-23A		Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
AS1311FS-M5E-23A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
AS1311FS-M5-23A		Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
AS2201FS-01-01A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2201FS-01-01SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2211FS-01-01A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2211FS-01-01SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2201FS-01-03A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2201FS-01-03SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2211FS-01-03A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2211FS-01-03SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2201FS-01-04A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2201FS-01-04SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2211FS-01-04A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2211FS-01-04SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2201FS-01-06A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2201FS-01-06SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2211FS-01-06A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2211FS-01-06SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2201FS-01-07A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2201FS-01-07SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2211FS-01-07A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2211FS-01-07SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2201FS-01-08A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2201FS-01-08SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2211FS-01-08A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2211FS-01-08SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2201FS-01-09A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2201FS-01-09SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2211FS-01-09A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2211FS-01-09SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2201FS-01-10A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2201FS-01-10SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2211FS-01-10A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2211FS-01-10SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2201FS-01-23A		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2201FS-01-23SA		Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2211FS-01-23A		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2211FS-01-23SA		Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2201FS-02-01A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2201FS-02-01SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2211FS-02-01A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2211FS-02-01SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2201FS-02-03A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2201FS-02-03SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2211FS-02-03A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2211FS-02-03SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2201FS-02-04A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2201FS-02-04SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2211FS-02-04A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2211FS-02-04SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2201FS-02-06A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2201FS-02-06SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2211FS-02-06A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2211FS-02-06SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2201FS-02-07A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2201FS-02-07SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2211FS-02-07A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2211FS-02-07SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2201FS-02-08A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2201FS-02-08SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2211FS-02-08A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2211FS-02-08SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2201FS-02-09A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2201FS-02-09SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2211FS-02-09A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2211FS-02-09SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2201FS-02-10A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2201FS-02-10SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2211FS-02-10A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2211FS-02-10SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2201FS-02-11A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS2201FS-02-11SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS2211FS-02-11A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS2211FS-02-11SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS2201FS-02-23A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2201FS-02-23SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2211FS-02-23A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2211FS-02-23SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2301FS-01-01A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2301FS-01-01SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2311FS-01-01A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
AS2311FS-01-01SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
AS2301FS-01-03A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2301FS-01-03SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2311FS-01-03A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2311FS-01-03SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2301FS-01-04A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2301FS-01-04SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2311FS-01-04A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2311FS-01-04SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2301FS-01-06A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2301FS-01-06SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2311FS-01-06A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2311FS-01-06SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2301FS-01-07A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2301FS-01-07SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2311FS-01-07A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2311FS-01-07SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2301FS-01-08A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2301FS-01-08SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2311FS-01-08A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2311FS-01-08SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2301FS-01-09A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2301FS-01-09SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2311FS-01-09A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2311FS-01-09SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2301FS-01-23A		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2301FS-01-23SA		Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2311FS-01-23A		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
AS2311FS-01-23SA		Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
AS2301FS-02-03A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2301FS-02-03SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2311FS-02-03A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
AS2311FS-02-03SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
AS2301FS-02-04A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2301FS-02-04SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2311FS-02-04A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
AS2311FS-02-04SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
AS2301FS-02-06A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2301FS-02-06SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2311FS-02-06A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS2311FS-02-06SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS2301FS-02-07A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2301FS-02-07SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2311FS-02-07A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS2311FS-02-07SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS2301FS-02-08A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2301FS-02-08SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2311FS-02-08A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS2311FS-02-08SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS2301FS-02-09A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2301FS-02-09SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2311FS-02-09A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS2311FS-02-09SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS2301FS-02-10A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2301FS-02-10SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2311FS-02-10A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS2311FS-02-10SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS2301FS-02-11A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS2301FS-02-11SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS2311FS-02-11A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS2311FS-02-11SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3201FS-02-06A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3201FS-02-06SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3211FS-02-06A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3211FS-02-06SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3201FS-02-07A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3201FS-02-07SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3211FS-02-07A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3211FS-02-07SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3201FS-02-08A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3201FS-02-08SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3211FS-02-08A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3211FS-02-08SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3201FS-02-09A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3201FS-02-09SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3211FS-02-09A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3211FS-02-09SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3201FS-02-10A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3201FS-02-10SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3211FS-02-10A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3211FS-02-10SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3201FS-02-11A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3201FS-02-11SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3211FS-02-11A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3211FS-02-11SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3201FS-02-12A		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3201FS-02-12SA		Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3211FS-02-12A		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3211FS-02-12SA		Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3201FS-03-06A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3201FS-03-06SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3211FS-03-06A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3211FS-03-06SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3201FS-03-07A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3201FS-03-07SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3211FS-03-07A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3211FS-03-07SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3201FS-03-08A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3201FS-03-08SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3211FS-03-08A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3211FS-03-08SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3201FS-03-09A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3201FS-03-09SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3211FS-03-09A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3211FS-03-09SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3201FS-03-10A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3201FS-03-10SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3211FS-03-10A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3211FS-03-10SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3201FS-03-11A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3201FS-03-11SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3211FS-03-11A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3211FS-03-11SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3201FS-03-12A		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3201FS-03-12SA		Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3211FS-03-12A		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3211FS-03-12SA		Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3301FS-02-06A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3301FS-02-06SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3311FS-02-06A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3311FS-02-06SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3301FS-02-07A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3301FS-02-07SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3311FS-02-07A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3311FS-02-07SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3301FS-02-08A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3301FS-02-08SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3311FS-02-08A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3311FS-02-08SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3301FS-02-09A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3301FS-02-09SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3311FS-02-09A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3311FS-02-09SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3301FS-02-10A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3301FS-02-10SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3311FS-02-10A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3311FS-02-10SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3301FS-02-11A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3301FS-02-11SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3311FS-02-11A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3311FS-02-11SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3301FS-02-12A		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3301FS-02-12SA		Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3311FS-02-12A		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3311FS-02-12SA		Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3301FS-03-06A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3301FS-03-06SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3311FS-03-06A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
AS3311FS-03-06SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
AS3301FS-03-07A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3301FS-03-07SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3311FS-03-07A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
AS3311FS-03-07SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
AS3301FS-03-08A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3301FS-03-08SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3311FS-03-08A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
AS3311FS-03-08SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
AS3301FS-03-09A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3301FS-03-09SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3311FS-03-09A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
AS3311FS-03-09SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
AS3301FS-03-10A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3301FS-03-10SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3311FS-03-10A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS3311FS-03-10SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS3301FS-03-11A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3301FS-03-11SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3311FS-03-11A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS3311FS-03-11SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS3301FS-03-12A		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3301FS-03-12SA		Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS3311FS-03-12A		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS3311FS-03-12SA		Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS4201FS-04-10A		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS4201FS-04-10SA		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS4211FS-04-10A		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS4211FS-04-10SA		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS4201FS-04-11A		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS4201FS-04-11SA		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS4211FS-04-11A		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS4211FS-04-11SA		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS4201FS-04-12A		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS4201FS-04-12SA		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS4211FS-04-12A		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS4211FS-04-12SA		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS4201FS-04-13A		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
AS4201FS-04-13SA		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
AS4211FS-04-13A		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
AS4211FS-04-13SA		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
AS4201FS-04-16A		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: No sealant
AS4201FS-04-16SA		Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: Sealant (S)
AS4211FS-04-16A		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: No sealant
AS4211FS-04-16SA		Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: Sealant (S)
AS4301FS-04-10A		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS4301FS-04-10SA		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS4311FS-04-10A		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
AS4311FS-04-10SA		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
AS4301FS-04-11A		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS4301FS-04-11SA		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS4311FS-04-11A		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
AS4311FS-04-11SA		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
AS4301FS-04-12A		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS4301FS-04-12SA		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS4311FS-04-12A		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
AS4311FS-04-12SA		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
AS4301FS-04-13A		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
AS4301FS-04-13SA		Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
AS4311FS-04-13A		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
AS4311FS-04-13SA		Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)

Speed ControllersSMC

340 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-FSA Compact Speed Controller with Scale (Elbow/Universal)

Brand SMC·Speed Controllers

Available part numbers (340)

AS1201FS-M5E-01A, AS1201FS-M5-01A, AS1211FS-M5E-01A, AS1211FS-M5-01A, AS1201FS-M5E-02A, AS1201FS-M5-02A, AS1211FS-M5E-02A, AS1211FS-M5-02A, AS1201FS-M5E-03A, AS1201FS-M5-03A + 330 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AS1201FS-M5E-01A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-01A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-01A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-01A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-02A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-02A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-02A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-02A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø2 mm \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-03A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-03A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-03A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-03A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-04A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-04A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-04A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-04A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-06A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-06A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-06A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-06A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-07A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-07A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-07A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-07A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
	AS1201FS-M5E-23A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
	AS1201FS-M5-23A	Type: Elbow \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
	AS1211FS-M5E-23A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
	AS1211FS-M5-23A	Type: Elbow \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-01A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-01A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-01A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-01A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/8 in \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-03A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-03A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-03A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-03A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø5/32 in \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-04A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-04A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-04A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-04A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø4 mm \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-06A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-06A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-06A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-06A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø6 mm \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-07A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-07A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-07A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-07A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø1/4 in \| Seal/hex: Hex 9 mm
	AS1301FS-M5E-23A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
	AS1301FS-M5-23A	Type: Universal \| Control: Meter-out \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
	AS1311FS-M5E-23A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 8 mm (E)
	AS1311FS-M5-23A	Type: Universal \| Control: Meter-in \| Port: M5x0.8 \| Tube OD: ø3.2 mm \| Seal/hex: Hex 9 mm
	AS2201FS-01-01A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2201FS-01-01SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2211FS-01-01A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2211FS-01-01SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2201FS-01-03A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2201FS-01-03SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2211FS-01-03A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2211FS-01-03SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2201FS-01-04A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2201FS-01-04SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2211FS-01-04A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2211FS-01-04SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2201FS-01-06A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2201FS-01-06SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2211FS-01-06A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2211FS-01-06SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2201FS-01-07A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2201FS-01-07SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2211FS-01-07A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2211FS-01-07SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2201FS-01-08A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2201FS-01-08SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2211FS-01-08A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2211FS-01-08SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2201FS-01-09A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2201FS-01-09SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2211FS-01-09A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2211FS-01-09SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2201FS-01-10A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2201FS-01-10SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2211FS-01-10A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2211FS-01-10SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2201FS-01-23A	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2201FS-01-23SA	Type: Elbow \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2211FS-01-23A	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2211FS-01-23SA	Type: Elbow \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2201FS-02-01A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2201FS-02-01SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2211FS-02-01A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2211FS-02-01SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2201FS-02-03A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2201FS-02-03SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2211FS-02-03A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2211FS-02-03SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2201FS-02-04A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2201FS-02-04SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2211FS-02-04A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2211FS-02-04SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2201FS-02-06A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2201FS-02-06SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2211FS-02-06A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2211FS-02-06SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2201FS-02-07A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2201FS-02-07SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2211FS-02-07A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2211FS-02-07SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2201FS-02-08A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2201FS-02-08SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2211FS-02-08A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2211FS-02-08SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2201FS-02-09A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2201FS-02-09SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2211FS-02-09A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2211FS-02-09SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2201FS-02-10A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2201FS-02-10SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2211FS-02-10A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2211FS-02-10SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2201FS-02-11A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS2201FS-02-11SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS2211FS-02-11A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS2211FS-02-11SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS2201FS-02-23A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2201FS-02-23SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2211FS-02-23A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2211FS-02-23SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2301FS-01-01A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2301FS-01-01SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2311FS-01-01A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: No sealant
	AS2311FS-01-01SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/8 in \| Seal/hex: Sealant (S)
	AS2301FS-01-03A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2301FS-01-03SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2311FS-01-03A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2311FS-01-03SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2301FS-01-04A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2301FS-01-04SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2311FS-01-04A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2311FS-01-04SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2301FS-01-06A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2301FS-01-06SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2311FS-01-06A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2311FS-01-06SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2301FS-01-07A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2301FS-01-07SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2311FS-01-07A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2311FS-01-07SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2301FS-01-08A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2301FS-01-08SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2311FS-01-08A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2311FS-01-08SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2301FS-01-09A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2301FS-01-09SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2311FS-01-09A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2311FS-01-09SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2301FS-01-23A	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2301FS-01-23SA	Type: Universal \| Control: Meter-out \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2311FS-01-23A	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: No sealant
	AS2311FS-01-23SA	Type: Universal \| Control: Meter-in \| Port: R1/8 \| Tube OD: ø3.2 mm \| Seal/hex: Sealant (S)
	AS2301FS-02-03A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2301FS-02-03SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2311FS-02-03A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: No sealant
	AS2311FS-02-03SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/32 in \| Seal/hex: Sealant (S)
	AS2301FS-02-04A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2301FS-02-04SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2311FS-02-04A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: No sealant
	AS2311FS-02-04SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø4 mm \| Seal/hex: Sealant (S)
	AS2301FS-02-06A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2301FS-02-06SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2311FS-02-06A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS2311FS-02-06SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS2301FS-02-07A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2301FS-02-07SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2311FS-02-07A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS2311FS-02-07SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS2301FS-02-08A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2301FS-02-08SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2311FS-02-08A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS2311FS-02-08SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS2301FS-02-09A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2301FS-02-09SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2311FS-02-09A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS2311FS-02-09SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS2301FS-02-10A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2301FS-02-10SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2311FS-02-10A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS2311FS-02-10SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS2301FS-02-11A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS2301FS-02-11SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS2311FS-02-11A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS2311FS-02-11SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3201FS-02-06A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3201FS-02-06SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3211FS-02-06A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3211FS-02-06SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3201FS-02-07A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3201FS-02-07SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3211FS-02-07A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3211FS-02-07SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3201FS-02-08A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3201FS-02-08SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3211FS-02-08A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3211FS-02-08SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3201FS-02-09A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3201FS-02-09SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3211FS-02-09A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3211FS-02-09SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3201FS-02-10A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3201FS-02-10SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3211FS-02-10A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3211FS-02-10SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3201FS-02-11A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3201FS-02-11SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3211FS-02-11A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3211FS-02-11SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3201FS-02-12A	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3201FS-02-12SA	Type: Elbow \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3211FS-02-12A	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3211FS-02-12SA	Type: Elbow \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3201FS-03-06A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3201FS-03-06SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3211FS-03-06A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3211FS-03-06SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3201FS-03-07A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3201FS-03-07SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3211FS-03-07A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3211FS-03-07SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3201FS-03-08A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3201FS-03-08SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3211FS-03-08A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3211FS-03-08SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3201FS-03-09A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3201FS-03-09SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3211FS-03-09A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3211FS-03-09SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3201FS-03-10A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3201FS-03-10SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3211FS-03-10A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3211FS-03-10SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3201FS-03-11A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3201FS-03-11SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3211FS-03-11A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3211FS-03-11SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3201FS-03-12A	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3201FS-03-12SA	Type: Elbow \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3211FS-03-12A	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3211FS-03-12SA	Type: Elbow \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3301FS-02-06A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3301FS-02-06SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3311FS-02-06A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3311FS-02-06SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3301FS-02-07A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3301FS-02-07SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3311FS-02-07A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3311FS-02-07SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3301FS-02-08A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3301FS-02-08SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3311FS-02-08A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3311FS-02-08SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3301FS-02-09A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3301FS-02-09SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3311FS-02-09A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3311FS-02-09SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3301FS-02-10A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3301FS-02-10SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3311FS-02-10A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3311FS-02-10SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3301FS-02-11A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3301FS-02-11SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3311FS-02-11A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3311FS-02-11SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3301FS-02-12A	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3301FS-02-12SA	Type: Universal \| Control: Meter-out \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3311FS-02-12A	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3311FS-02-12SA	Type: Universal \| Control: Meter-in \| Port: R1/4 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3301FS-03-06A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3301FS-03-06SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3311FS-03-06A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: No sealant
	AS3311FS-03-06SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø6 mm \| Seal/hex: Sealant (S)
	AS3301FS-03-07A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3301FS-03-07SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3311FS-03-07A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: No sealant
	AS3311FS-03-07SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø1/4 in \| Seal/hex: Sealant (S)
	AS3301FS-03-08A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3301FS-03-08SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3311FS-03-08A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: No sealant
	AS3311FS-03-08SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø8 mm \| Seal/hex: Sealant (S)
	AS3301FS-03-09A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3301FS-03-09SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3311FS-03-09A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: No sealant
	AS3311FS-03-09SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø5/16 in \| Seal/hex: Sealant (S)
	AS3301FS-03-10A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3301FS-03-10SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3311FS-03-10A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS3311FS-03-10SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS3301FS-03-11A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3301FS-03-11SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3311FS-03-11A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS3311FS-03-11SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS3301FS-03-12A	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3301FS-03-12SA	Type: Universal \| Control: Meter-out \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS3311FS-03-12A	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS3311FS-03-12SA	Type: Universal \| Control: Meter-in \| Port: R3/8 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS4201FS-04-10A	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS4201FS-04-10SA	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS4211FS-04-10A	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS4211FS-04-10SA	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS4201FS-04-11A	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS4201FS-04-11SA	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS4211FS-04-11A	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS4211FS-04-11SA	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS4201FS-04-12A	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS4201FS-04-12SA	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS4211FS-04-12A	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS4211FS-04-12SA	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS4201FS-04-13A	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
	AS4201FS-04-13SA	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
	AS4211FS-04-13A	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
	AS4211FS-04-13SA	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
	AS4201FS-04-16A	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: No sealant
	AS4201FS-04-16SA	Type: Elbow \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: Sealant (S)
	AS4211FS-04-16A	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: No sealant
	AS4211FS-04-16SA	Type: Elbow \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø16 mm \| Seal/hex: Sealant (S)
	AS4301FS-04-10A	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS4301FS-04-10SA	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS4311FS-04-10A	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: No sealant
	AS4311FS-04-10SA	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø10 mm \| Seal/hex: Sealant (S)
	AS4301FS-04-11A	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS4301FS-04-11SA	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS4311FS-04-11A	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: No sealant
	AS4311FS-04-11SA	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø3/8 in \| Seal/hex: Sealant (S)
	AS4301FS-04-12A	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS4301FS-04-12SA	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS4311FS-04-12A	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: No sealant
	AS4311FS-04-12SA	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø12 mm \| Seal/hex: Sealant (S)
	AS4301FS-04-13A	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
	AS4301FS-04-13SA	Type: Universal \| Control: Meter-out \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)
	AS4311FS-04-13A	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: No sealant
	AS4311FS-04-13SA	Type: Universal \| Control: Meter-in \| Port: R1/2 \| Tube OD: ø1/2 in \| Seal/hex: Sealant (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC AS-FSA Compact Speed Controller with Scale (Elbow/Universal)
