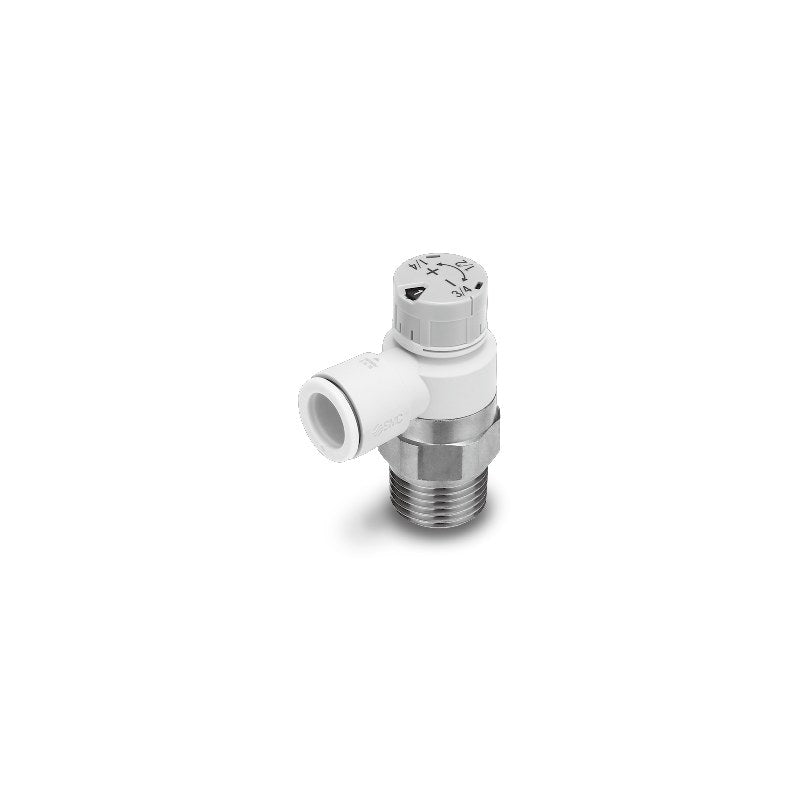

SMC AS-FSGA Stainless Speed Controller with Scale (Elbow/Universal)

SMC AS-FSGA Stainless Speed Controller with Scale (Elbow/Universal)

SMC AS-FSGA series compact speed controller with scale window and one-touch fitting, stainless steel metal parts, elbow or universal type.

Key features

  • Stainless steel metal parts; release bushing white for identification
  • Scale window with vernier for 1/4-turn flow setting resolution
  • Body sizes 1 to 4 for M5, 1/8, 1/4, 3/8 and 1/2 ports; R thread with or without sealant (S)
  • G thread packing seal, NPT and 10-32UNF versions also offered
  • Meter-out (grey handle) and meter-in (light blue handle) versions
  • Made to order: -X12, -X21, -X214 and 10- (clean)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Metal parts material Stainless steel
Needle turns 8 (size 1), 10 (sizes 2-4)
Source SMC Korea catalog CAT.KS20-280A (SMCKR_AS-FSA_AS-FSGA.pdf), PDF p. 17-30
AS1201FSG-M5-01A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1211FSG-M5-01A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1201FSG-M5-02A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Gasket seal
AS1211FSG-M5-02A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Gasket seal
AS1201FSG-M5-03A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1211FSG-M5-03A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1201FSG-M5-04A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1211FSG-M5-04A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1201FSG-M5-06A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1211FSG-M5-06A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1201FSG-M5-07A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1211FSG-M5-07A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1201FSG-M5-23A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1211FSG-M5-23A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1301FSG-M5-01A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1311FSG-M5-01A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1301FSG-M5-03A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1311FSG-M5-03A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1301FSG-M5-04A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1311FSG-M5-04A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1301FSG-M5-06A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1311FSG-M5-06A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1301FSG-M5-07A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1311FSG-M5-07A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1301FSG-M5-23A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1311FSG-M5-23A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS2201FSG-01-01A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201FSG-01-01SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211FSG-01-01A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211FSG-01-01SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201FSG-01-03A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201FSG-01-03SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211FSG-01-03A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211FSG-01-03SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201FSG-01-04A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FSG-01-04SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FSG-01-04A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FSG-01-04SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FSG-01-06A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FSG-01-06SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FSG-01-06A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FSG-01-06SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FSG-01-07A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201FSG-01-07SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211FSG-01-07A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211FSG-01-07SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201FSG-01-08A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FSG-01-08SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FSG-01-08A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FSG-01-08SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FSG-01-09A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201FSG-01-09SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211FSG-01-09A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211FSG-01-09SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201FSG-01-10A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FSG-01-10SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FSG-01-10A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FSG-01-10SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FSG-01-23A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FSG-01-23SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FSG-01-23A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FSG-01-23SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FSG-02-01A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201FSG-02-01SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211FSG-02-01A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211FSG-02-01SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201FSG-02-03A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201FSG-02-03SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211FSG-02-03A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211FSG-02-03SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201FSG-02-04A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FSG-02-04SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FSG-02-04A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FSG-02-04SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FSG-02-06A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FSG-02-06SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FSG-02-06A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FSG-02-06SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FSG-02-07A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201FSG-02-07SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211FSG-02-07A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211FSG-02-07SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201FSG-02-08A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FSG-02-08SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FSG-02-08A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FSG-02-08SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FSG-02-09A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201FSG-02-09SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211FSG-02-09A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211FSG-02-09SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201FSG-02-10A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FSG-02-10SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FSG-02-10A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FSG-02-10SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FSG-02-11A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2201FSG-02-11SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2211FSG-02-11A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2211FSG-02-11SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2201FSG-02-23A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FSG-02-23SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FSG-02-23A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FSG-02-23SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FSG-01-01A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2301FSG-01-01SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2311FSG-01-01A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2311FSG-01-01SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2301FSG-01-03A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301FSG-01-03SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311FSG-01-03A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311FSG-01-03SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301FSG-01-04A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FSG-01-04SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FSG-01-04A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FSG-01-04SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FSG-01-06A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FSG-01-06SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FSG-01-06A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FSG-01-06SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FSG-01-07A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301FSG-01-07SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311FSG-01-07A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311FSG-01-07SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301FSG-01-08A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FSG-01-08SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FSG-01-08A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FSG-01-08SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FSG-01-09A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301FSG-01-09SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311FSG-01-09A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311FSG-01-09SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301FSG-01-23A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FSG-01-23SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FSG-01-23A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FSG-01-23SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FSG-02-03A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301FSG-02-03SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311FSG-02-03A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311FSG-02-03SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301FSG-02-04A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FSG-02-04SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FSG-02-04A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FSG-02-04SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FSG-02-06A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FSG-02-06SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FSG-02-06A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FSG-02-06SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FSG-02-07A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301FSG-02-07SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311FSG-02-07A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311FSG-02-07SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301FSG-02-08A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FSG-02-08SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FSG-02-08A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FSG-02-08SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FSG-02-09A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301FSG-02-09SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311FSG-02-09A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311FSG-02-09SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301FSG-02-10A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FSG-02-10SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FSG-02-10A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FSG-02-10SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301FSG-02-11A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2301FSG-02-11SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2311FSG-02-11A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2311FSG-02-11SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-02-06A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201FSG-02-06SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211FSG-02-06A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211FSG-02-06SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201FSG-02-07A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201FSG-02-07SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211FSG-02-07A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211FSG-02-07SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201FSG-02-08A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201FSG-02-08SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211FSG-02-08A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211FSG-02-08SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201FSG-02-09A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201FSG-02-09SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211FSG-02-09A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211FSG-02-09SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201FSG-02-10A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201FSG-02-10SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211FSG-02-10A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211FSG-02-10SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201FSG-02-11A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201FSG-02-11SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211FSG-02-11A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211FSG-02-11SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-02-12A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201FSG-02-12SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211FSG-02-12A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211FSG-02-12SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3201FSG-03-06A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201FSG-03-06SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211FSG-03-06A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211FSG-03-06SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201FSG-03-07A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201FSG-03-07SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211FSG-03-07A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211FSG-03-07SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201FSG-03-08A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201FSG-03-08SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211FSG-03-08A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211FSG-03-08SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201FSG-03-09A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201FSG-03-09SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211FSG-03-09A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211FSG-03-09SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201FSG-03-10A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201FSG-03-10SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211FSG-03-10A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211FSG-03-10SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201FSG-03-11A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201FSG-03-11SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211FSG-03-11A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211FSG-03-11SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-03-12A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201FSG-03-12SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211FSG-03-12A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211FSG-03-12SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301FSG-02-06A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301FSG-02-06SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311FSG-02-06A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311FSG-02-06SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301FSG-02-07A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301FSG-02-07SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311FSG-02-07A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311FSG-02-07SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301FSG-02-08A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301FSG-02-08SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311FSG-02-08A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311FSG-02-08SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301FSG-02-09A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301FSG-02-09SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311FSG-02-09A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311FSG-02-09SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301FSG-02-10A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301FSG-02-10SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311FSG-02-10A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311FSG-02-10SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301FSG-02-11A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301FSG-02-11SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311FSG-02-11A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311FSG-02-11SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301FSG-02-12A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301FSG-02-12SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311FSG-02-12A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311FSG-02-12SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301FSG-03-06A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301FSG-03-06SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311FSG-03-06A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311FSG-03-06SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301FSG-03-07A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301FSG-03-07SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311FSG-03-07A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311FSG-03-07SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301FSG-03-08A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301FSG-03-08SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311FSG-03-08A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311FSG-03-08SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301FSG-03-09A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301FSG-03-09SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311FSG-03-09A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311FSG-03-09SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301FSG-03-10A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301FSG-03-10SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311FSG-03-10A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311FSG-03-10SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301FSG-03-11A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301FSG-03-11SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311FSG-03-11A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311FSG-03-11SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301FSG-03-12A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301FSG-03-12SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311FSG-03-12A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311FSG-03-12SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201FSG-04-10A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4201FSG-04-10SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4211FSG-04-10A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4211FSG-04-10SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4201FSG-04-11A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4201FSG-04-11SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4211FSG-04-11A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4211FSG-04-11SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4201FSG-04-12A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4201FSG-04-12SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4211FSG-04-12A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4211FSG-04-12SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201FSG-04-13A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4201FSG-04-13SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4211FSG-04-13A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4211FSG-04-13SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4201FSG-04-16A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4201FSG-04-16SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4211FSG-04-16A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4211FSG-04-16SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4301FSG-04-10A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4301FSG-04-10SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4311FSG-04-10A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4311FSG-04-10SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4301FSG-04-11A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4301FSG-04-11SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4311FSG-04-11A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4311FSG-04-11SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4301FSG-04-12A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4301FSG-04-12SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4311FSG-04-12A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4311FSG-04-12SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4301FSG-04-13A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4301FSG-04-13SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4311FSG-04-13A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4311FSG-04-13SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
Speed ControllersSMC
314 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-FSGA Stainless Speed Controller with Scale (Elbow/Universal)

Brand SMC·Speed Controllers

Available part numbers (314)

AS1201FSG-M5-01A, AS1211FSG-M5-01A, AS1201FSG-M5-02A, AS1211FSG-M5-02A, AS1201FSG-M5-03A, AS1211FSG-M5-03A, AS1201FSG-M5-04A, AS1211FSG-M5-04A, AS1201FSG-M5-06A, AS1211FSG-M5-06A + 304 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201FSG-M5-01AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1211FSG-M5-01AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1201FSG-M5-02AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Gasket seal
AS1211FSG-M5-02AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Gasket seal
AS1201FSG-M5-03AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1211FSG-M5-03AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1201FSG-M5-04AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1211FSG-M5-04AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1201FSG-M5-06AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1211FSG-M5-06AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1201FSG-M5-07AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1211FSG-M5-07AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1201FSG-M5-23AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1211FSG-M5-23AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1301FSG-M5-01AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1311FSG-M5-01AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Gasket seal
AS1301FSG-M5-03AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1311FSG-M5-03AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Gasket seal
AS1301FSG-M5-04AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1311FSG-M5-04AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Gasket seal
AS1301FSG-M5-06AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1311FSG-M5-06AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Gasket seal
AS1301FSG-M5-07AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1311FSG-M5-07AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Gasket seal
AS1301FSG-M5-23AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS1311FSG-M5-23AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Gasket seal
AS2201FSG-01-01AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201FSG-01-01SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211FSG-01-01AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211FSG-01-01SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201FSG-01-03AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201FSG-01-03SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211FSG-01-03AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211FSG-01-03SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201FSG-01-04AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FSG-01-04SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FSG-01-04AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FSG-01-04SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FSG-01-06AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FSG-01-06SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FSG-01-06AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FSG-01-06SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FSG-01-07AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201FSG-01-07SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211FSG-01-07AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211FSG-01-07SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201FSG-01-08AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FSG-01-08SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FSG-01-08AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FSG-01-08SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FSG-01-09AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201FSG-01-09SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211FSG-01-09AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211FSG-01-09SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201FSG-01-10AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FSG-01-10SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FSG-01-10AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FSG-01-10SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FSG-01-23AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FSG-01-23SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FSG-01-23AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FSG-01-23SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201FSG-02-01AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201FSG-02-01SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211FSG-02-01AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211FSG-02-01SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201FSG-02-03AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201FSG-02-03SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211FSG-02-03AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211FSG-02-03SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201FSG-02-04AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201FSG-02-04SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211FSG-02-04AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211FSG-02-04SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201FSG-02-06AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201FSG-02-06SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211FSG-02-06AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211FSG-02-06SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201FSG-02-07AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201FSG-02-07SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211FSG-02-07AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211FSG-02-07SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201FSG-02-08AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201FSG-02-08SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211FSG-02-08AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211FSG-02-08SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201FSG-02-09AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201FSG-02-09SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211FSG-02-09AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211FSG-02-09SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201FSG-02-10AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201FSG-02-10SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211FSG-02-10AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211FSG-02-10SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201FSG-02-11AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2201FSG-02-11SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2211FSG-02-11AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2211FSG-02-11SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2201FSG-02-23AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201FSG-02-23SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211FSG-02-23AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211FSG-02-23SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FSG-01-01AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2301FSG-01-01SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2311FSG-01-01AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2311FSG-01-01SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2301FSG-01-03AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301FSG-01-03SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311FSG-01-03AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311FSG-01-03SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301FSG-01-04AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FSG-01-04SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FSG-01-04AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FSG-01-04SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FSG-01-06AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FSG-01-06SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FSG-01-06AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FSG-01-06SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FSG-01-07AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301FSG-01-07SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311FSG-01-07AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311FSG-01-07SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301FSG-01-08AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FSG-01-08SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FSG-01-08AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FSG-01-08SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FSG-01-09AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301FSG-01-09SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311FSG-01-09AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311FSG-01-09SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301FSG-01-23AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301FSG-01-23SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311FSG-01-23AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311FSG-01-23SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301FSG-02-03AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301FSG-02-03SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311FSG-02-03AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311FSG-02-03SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301FSG-02-04AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301FSG-02-04SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311FSG-02-04AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311FSG-02-04SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301FSG-02-06AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301FSG-02-06SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311FSG-02-06AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311FSG-02-06SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301FSG-02-07AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301FSG-02-07SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311FSG-02-07AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311FSG-02-07SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301FSG-02-08AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301FSG-02-08SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311FSG-02-08AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311FSG-02-08SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301FSG-02-09AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301FSG-02-09SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311FSG-02-09AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311FSG-02-09SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301FSG-02-10AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301FSG-02-10SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311FSG-02-10AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311FSG-02-10SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301FSG-02-11AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2301FSG-02-11SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2311FSG-02-11AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2311FSG-02-11SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-02-06AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201FSG-02-06SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211FSG-02-06AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211FSG-02-06SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201FSG-02-07AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201FSG-02-07SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211FSG-02-07AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211FSG-02-07SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201FSG-02-08AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201FSG-02-08SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211FSG-02-08AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211FSG-02-08SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201FSG-02-09AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201FSG-02-09SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211FSG-02-09AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211FSG-02-09SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201FSG-02-10AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201FSG-02-10SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211FSG-02-10AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211FSG-02-10SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201FSG-02-11AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201FSG-02-11SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211FSG-02-11AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211FSG-02-11SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-02-12AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201FSG-02-12SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211FSG-02-12AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211FSG-02-12SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3201FSG-03-06AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201FSG-03-06SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211FSG-03-06AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211FSG-03-06SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201FSG-03-07AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201FSG-03-07SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211FSG-03-07AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211FSG-03-07SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201FSG-03-08AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201FSG-03-08SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211FSG-03-08AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211FSG-03-08SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201FSG-03-09AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201FSG-03-09SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211FSG-03-09AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211FSG-03-09SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201FSG-03-10AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201FSG-03-10SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211FSG-03-10AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211FSG-03-10SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201FSG-03-11AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201FSG-03-11SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211FSG-03-11AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211FSG-03-11SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201FSG-03-12AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201FSG-03-12SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211FSG-03-12AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211FSG-03-12SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301FSG-02-06AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301FSG-02-06SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311FSG-02-06AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311FSG-02-06SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301FSG-02-07AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301FSG-02-07SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311FSG-02-07AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311FSG-02-07SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301FSG-02-08AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301FSG-02-08SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311FSG-02-08AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311FSG-02-08SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301FSG-02-09AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301FSG-02-09SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311FSG-02-09AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311FSG-02-09SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301FSG-02-10AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301FSG-02-10SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311FSG-02-10AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311FSG-02-10SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301FSG-02-11AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301FSG-02-11SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311FSG-02-11AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311FSG-02-11SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301FSG-02-12AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301FSG-02-12SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311FSG-02-12AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311FSG-02-12SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301FSG-03-06AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301FSG-03-06SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311FSG-03-06AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311FSG-03-06SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301FSG-03-07AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301FSG-03-07SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311FSG-03-07AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311FSG-03-07SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301FSG-03-08AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301FSG-03-08SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311FSG-03-08AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311FSG-03-08SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301FSG-03-09AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301FSG-03-09SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311FSG-03-09AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311FSG-03-09SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301FSG-03-10AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301FSG-03-10SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311FSG-03-10AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311FSG-03-10SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301FSG-03-11AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301FSG-03-11SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311FSG-03-11AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311FSG-03-11SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301FSG-03-12AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301FSG-03-12SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311FSG-03-12AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311FSG-03-12SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201FSG-04-10AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4201FSG-04-10SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4211FSG-04-10AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4211FSG-04-10SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4201FSG-04-11AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4201FSG-04-11SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4211FSG-04-11AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4211FSG-04-11SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4201FSG-04-12AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4201FSG-04-12SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4211FSG-04-12AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4211FSG-04-12SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201FSG-04-13AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4201FSG-04-13SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4211FSG-04-13AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4211FSG-04-13SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4201FSG-04-16AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4201FSG-04-16SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4211FSG-04-16AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4211FSG-04-16SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4301FSG-04-10AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4301FSG-04-10SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4311FSG-04-10AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4311FSG-04-10SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4301FSG-04-11AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4301FSG-04-11SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4311FSG-04-11AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4311FSG-04-11SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4301FSG-04-12AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4301FSG-04-12SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4311FSG-04-12AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4311FSG-04-12SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4301FSG-04-13AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4301FSG-04-13SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4311FSG-04-13AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4311FSG-04-13SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
