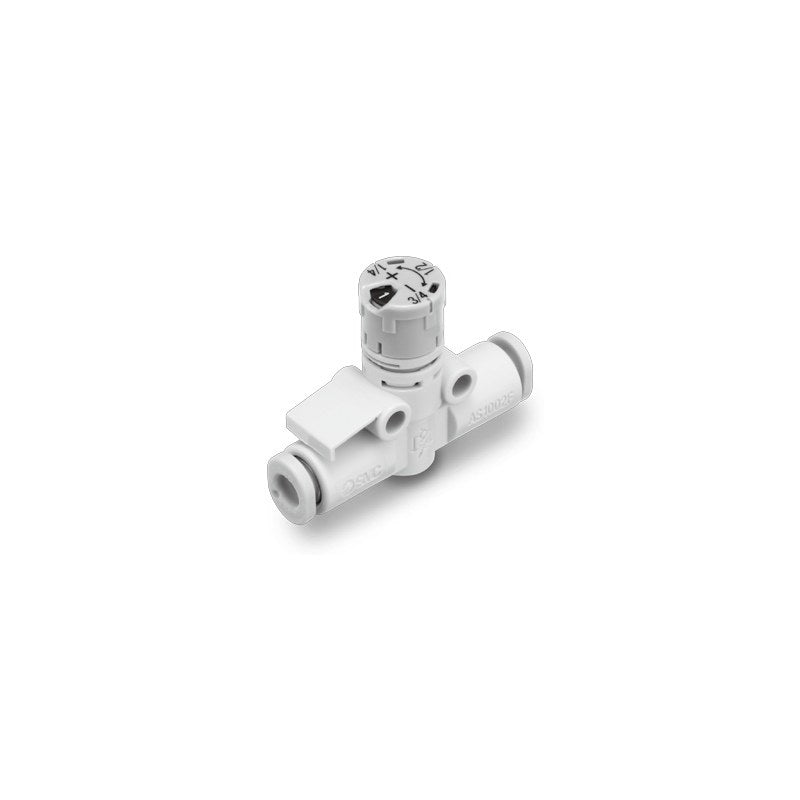

SMC AS-FSMA/FSCA Inline Low Speed Controller with Scale

SMC AS-FSMA/FSCA Inline Low Speed Controller with Scale

SMC AS-FSMA/FSCA series inline low speed controller with one-touch fittings on both ends and scale window, for cylinder speeds of 1-50 mm/s (FSM) or 50-150 mm/s (FSC).

Key features

  • Inline body, tube to tube connection with one-touch fittings both ends
  • Low speed control: FSM 1-50 mm/s, FSC 50-150 mm/s with improved resolution in the low-flow range
  • Scale window with vernier: flow setting readable and repeatable in 1/4-turn steps
  • Body sizes AS100 (M5 class), AS200 (1/8 class), AS205 (1/4 class) for ø3.2 to ø8 mm and 1/8 to 5/16 in tubing
  • Panel mount and DIN rail / L bracket mounting options available; made to order -X12, -X21, -X214, 10-

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Type Inline
Source SMC Korea catalog CAT.KS20-279A (SMCKR_AS-FSMA_AS-FSCA.pdf), PDF p. 5-18
AS1002FSM-01A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø1/8 in
AS1002FSC-01A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø1/8 in
AS1002FSM-03A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø5/32 in
AS1002FSC-03A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø5/32 in
AS1002FSM-04A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø4 mm
AS1002FSC-04A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø4 mm
AS1002FSM-06A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø6 mm
AS1002FSC-06A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø6 mm
AS1002FSM-07A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø1/4 in
AS1002FSC-07A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø1/4 in
AS1002FSM-23A Speed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø3.2 mm
AS1002FSC-23A Speed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø3.2 mm
AS2002FSM-03A Speed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø5/32 in
AS2002FSC-03A Speed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø5/32 in
AS2002FSM-04A Speed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø4 mm
AS2002FSC-04A Speed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø4 mm
AS2002FSM-06A Speed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø6 mm
AS2002FSC-06A Speed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø6 mm
AS2002FSM-07A Speed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø1/4 in
AS2002FSC-07A Speed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø1/4 in
AS2052FSM-06A Speed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø6 mm
AS2052FSC-06A Speed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø6 mm
AS2052FSM-07A Speed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø1/4 in
AS2052FSC-07A Speed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø1/4 in
AS2052FSM-08A Speed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø8 mm
AS2052FSC-08A Speed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø8 mm
AS2052FSM-09A Speed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø5/16 in
AS2052FSC-09A Speed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø5/16 in
Speed ControllersSMC
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-FSMA/FSCA Inline Low Speed Controller with Scale

Brand SMC·Speed Controllers

Available part numbers (28)

AS1002FSM-01A, AS1002FSC-01A, AS1002FSM-03A, AS1002FSC-03A, AS1002FSM-04A, AS1002FSC-04A, AS1002FSM-06A, AS1002FSC-06A, AS1002FSM-07A, AS1002FSC-07A + 18 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1002FSM-01ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø1/8 in
AS1002FSC-01ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø1/8 in
AS1002FSM-03ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø5/32 in
AS1002FSC-03ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø5/32 in
AS1002FSM-04ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø4 mm
AS1002FSC-04ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø4 mm
AS1002FSM-06ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø6 mm
AS1002FSC-06ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø6 mm
AS1002FSM-07ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø1/4 in
AS1002FSC-07ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø1/4 in
AS1002FSM-23ASpeed range: 1-50 mm/s | Body size: M5 class | Tube OD: ø3.2 mm
AS1002FSC-23ASpeed range: 50-150 mm/s | Body size: M5 class | Tube OD: ø3.2 mm
AS2002FSM-03ASpeed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø5/32 in
AS2002FSC-03ASpeed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø5/32 in
AS2002FSM-04ASpeed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø4 mm
AS2002FSC-04ASpeed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø4 mm
AS2002FSM-06ASpeed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø6 mm
AS2002FSC-06ASpeed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø6 mm
AS2002FSM-07ASpeed range: 1-50 mm/s | Body size: 1/8 class | Tube OD: ø1/4 in
AS2002FSC-07ASpeed range: 50-150 mm/s | Body size: 1/8 class | Tube OD: ø1/4 in
AS2052FSM-06ASpeed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø6 mm
AS2052FSC-06ASpeed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø6 mm
AS2052FSM-07ASpeed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø1/4 in
AS2052FSC-07ASpeed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø1/4 in
AS2052FSM-08ASpeed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø8 mm
AS2052FSC-08ASpeed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø8 mm
AS2052FSM-09ASpeed range: 1-50 mm/s | Body size: 1/4 class | Tube OD: ø5/16 in
AS2052FSC-09ASpeed range: 50-150 mm/s | Body size: 1/4 class | Tube OD: ø5/16 in
