SMC AS-M Low Speed Controller, Standard Type (Metal Body)

SMC AS-M Low Speed Controller, Standard Type (Metal Body)

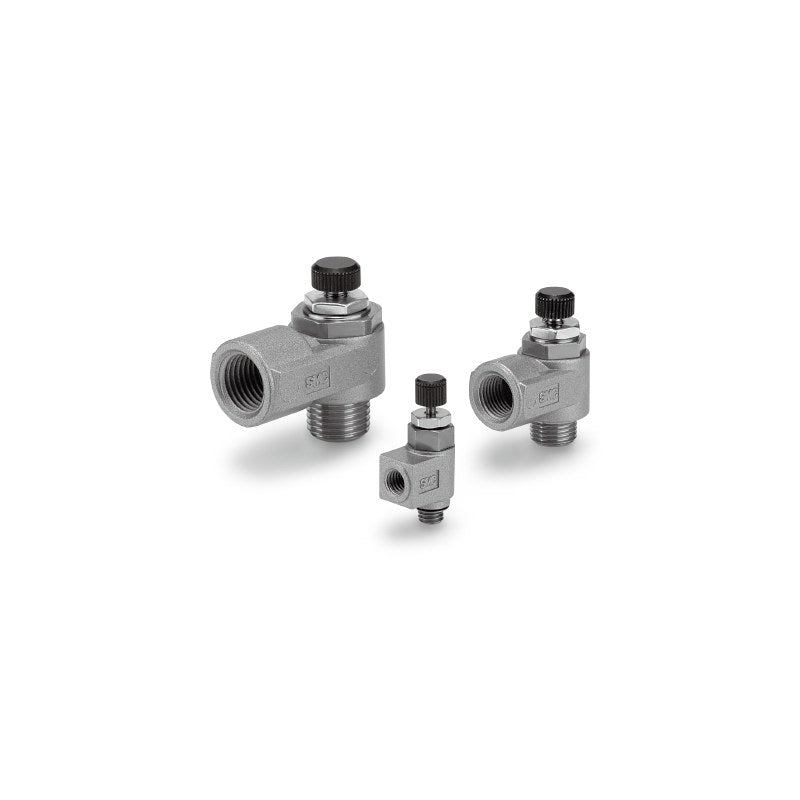

SMC AS-M series metal body low speed controller, elbow type mounted directly on the cylinder port, male R thread and female Rc thread.

Key features

  • For low speed cylinder control with fine needle adjustment
  • Metal body elbow type: male thread to cylinder, female thread to piping
  • Body size 1 (M5) and size 2 (1/8, 1/4); NPT and 10-32UNF versions also offered
  • Meter-out / meter-in; option S (sealant on R thread) and lock nut option J (round)
  • Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Type Elbow (cylinder direct mounting)
Lock nut Hex standard, round (J) option
Source SMC Korea catalog AS-FM/AS-M (SMCKR_AS________-FM.pdf), p. 721 (PDF p. 6-8)
AS1200M-M5 Control: Meter-out | Port: M5x0.8
AS1210M-M5 Control: Meter-in | Port: M5x0.8
AS2200M-01 Control: Meter-out | Port: R/Rc 1/8
AS2210M-01 Control: Meter-in | Port: R/Rc 1/8
AS2200M-02 Control: Meter-out | Port: R/Rc 1/4
AS2210M-02 Control: Meter-in | Port: R/Rc 1/4
Speed ControllersSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS-M Low Speed Controller, Standard Type (Metal Body)

Brand SMC·Speed Controllers

Available part numbers (6)

AS1200M-M5, AS1210M-M5, AS2200M-01, AS2210M-01, AS2200M-02, AS2210M-02
