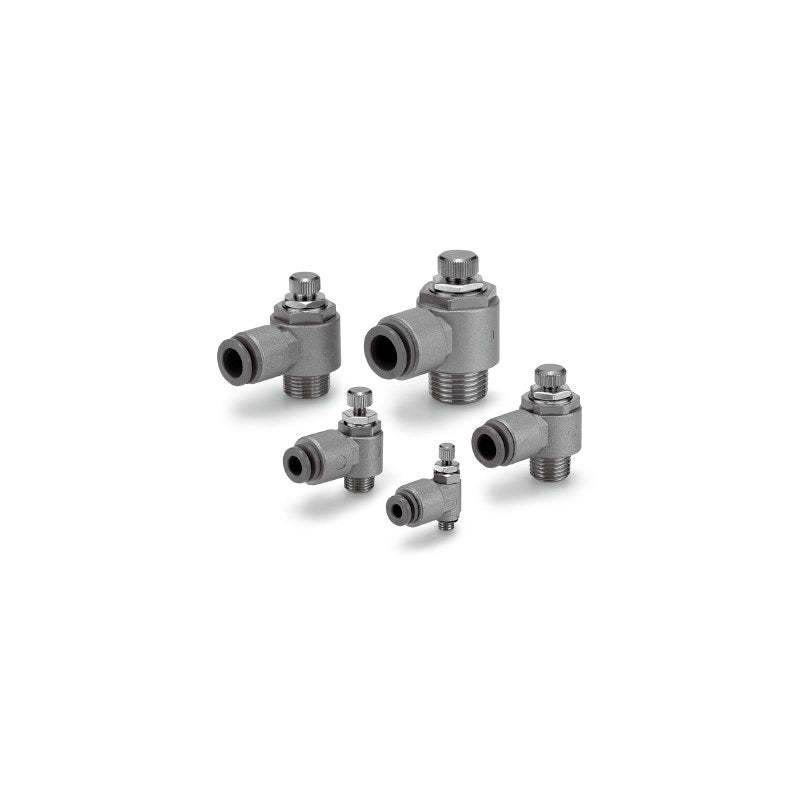

SMC AS Speed Controller, Metal Body Elbow (Built-in One-touch Fitting)

SMC AS Speed Controller, Metal Body Elbow (Built-in One-touch Fitting)

SMC AS series metal-body elbow speed controller with built-in one-touch fitting cassette, for meter-out or meter-in speed control of pneumatic cylinders.

Key features

  • Zinc alloy / brass metal body with built-in one-touch fitting cassette
  • Flame-retardant resin parts (UL94 V-0) as standard
  • Body sizes 1 to 4: M5, R1/8, R1/4 (sizes 2 and 3), R3/8 and R1/2 ports, tube OD ø4 to ø12 mm
  • Meter-out (zinc chromate lock nut) and meter-in (black zinc chromate lock nut) versions
  • Options: all-brass electroless nickel (N), round lock nut (-J)
  • Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Body type Metal body elbow, built-in one-touch fitting
Applicable tubing FR 2-layer, FR 3-layer, FR soft nylon, nylon, soft nylon, polyurethane
Resin Flame-retardant UL94 V-0
Seal Sealant on R threads (S); gasket on M5
Source SMC Korea catalog AS metal body (SMCKR_AS12__1-AS42__1.pdf), p. 611-613
AS1201-M5-F04 Body size: Size 1 | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1201-M5-F06 Body size: Size 1 | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211-M5-F04 Body size: Size 1 | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1211-M5-F06 Body size: Size 1 | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201-01-F06S Body size: Size 2 | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2201-01-F08S Body size: Size 2 | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211-01-F06S Body size: Size 2 | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2211-01-F08S Body size: Size 2 | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201-02-F06S Body size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2201-02-F08S Body size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2201-02-F10S Body size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211-02-F06S Body size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2211-02-F08S Body size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2211-02-F10S Body size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201-02-F08S Body size: Size 3 | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3201-02-F10S Body size: Size 3 | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211-02-F08S Body size: Size 3 | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3211-02-F10S Body size: Size 3 | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201-03-F08S Body size: Size 3 | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3201-03-F10S Body size: Size 3 | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211-03-F08S Body size: Size 3 | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3211-03-F10S Body size: Size 3 | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS4201-04-F10S Body size: Size 4 | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4201-04-F12S Body size: Size 4 | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211-04-F10S Body size: Size 4 | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4211-04-F12S Body size: Size 4 | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
Speed ControllersSMC
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS Speed Controller, Metal Body Elbow (Built-in One-touch Fitting)

Brand SMC·Speed Controllers

Available part numbers (26)

AS1201-M5-F04, AS1201-M5-F06, AS1211-M5-F04, AS1211-M5-F06, AS2201-01-F06S, AS2201-01-F08S, AS2211-01-F06S, AS2211-01-F08S, AS2201-02-F06S, AS2201-02-F08S + 16 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201-M5-F04Body size: Size 1 | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm
AS1201-M5-F06Body size: Size 1 | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm
AS1211-M5-F04Body size: Size 1 | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm
AS1211-M5-F06Body size: Size 1 | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm
AS2201-01-F06SBody size: Size 2 | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm
AS2201-01-F08SBody size: Size 2 | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm
AS2211-01-F06SBody size: Size 2 | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm
AS2211-01-F08SBody size: Size 2 | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm
AS2201-02-F06SBody size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm
AS2201-02-F08SBody size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS2201-02-F10SBody size: Size 2 | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS2211-02-F06SBody size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm
AS2211-02-F08SBody size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS2211-02-F10SBody size: Size 2 | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201-02-F08SBody size: Size 3 | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm
AS3201-02-F10SBody size: Size 3 | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm
AS3211-02-F08SBody size: Size 3 | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm
AS3211-02-F10SBody size: Size 3 | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm
AS3201-03-F08SBody size: Size 3 | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm
AS3201-03-F10SBody size: Size 3 | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm
AS3211-03-F08SBody size: Size 3 | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm
AS3211-03-F10SBody size: Size 3 | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm
AS4201-04-F10SBody size: Size 4 | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm
AS4201-04-F12SBody size: Size 4 | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm
AS4211-04-F10SBody size: Size 4 | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm
AS4211-04-F12SBody size: Size 4 | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm
