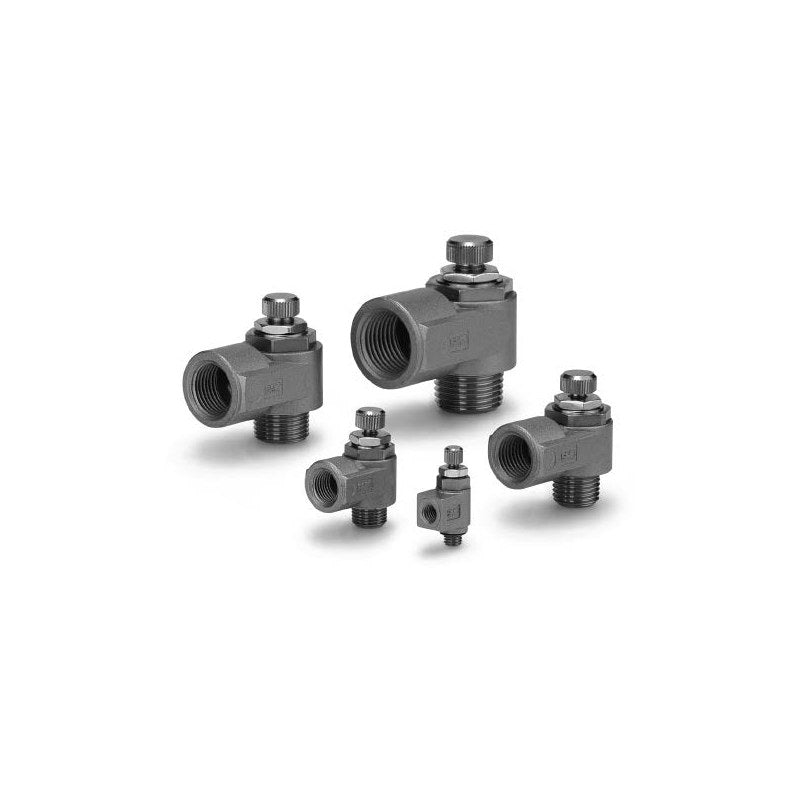

SMC AS Metal Elbow Speed Controller (Cylinder Direct, AS12x0-AS42x0)

SMC AS Metal Elbow Speed Controller (Cylinder Direct, AS12x0-AS42x0)

SMC AS120 to AS420 all-metal elbow speed controllers screw directly into the actuator port, eliminating separate fittings and tubing.

Key features

  • Screws directly into the cylinder port; female thread on the piping side
  • Swivel body: piping direction can be set freely after installation
  • Easy speed control in the low flow range with uniform control
  • Needle anti-drop mechanism
  • Brass body, electroless nickel plated (AS120, AS1400, AS220, AS320)

Specifications

Fluid Air
Proof pressure 1.5 MPa (M3: 1.05 MPa)
Max. operating pressure 1 MPa (M3: 0.7 MPa)
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60 °C (no freezing)
Thread type R (cylinder side) / Rc (piping side); M3, M5 metric
Controlled flow (0.5 MPa) 20 to 1700 L/min (ANR) by size
Options (not expanded) S: sealant, N: electroless nickel, J: round lock nut; -X12, -X21, -X214
Source SMC Korea catalog AS120-AS420 (SMCKR_AS12__0-AS42__0.pdf), p. 646-649 (PDF p. 1-4)
AS1200-M3 Type: Elbow | Control: Meter-out | Port: M3x0.5
AS1400-M3 Type: Flat elbow | Control: Meter-out | Port: M3x0.5
AS1200-M5 Type: Elbow | Control: Meter-out | Port: M5x0.8
AS1210-M5 Type: Elbow | Control: Meter-in | Port: M5x0.8
AS2200-01 Type: Elbow | Control: Meter-out | Port: Rc/R 1/8
AS2210-01 Type: Elbow | Control: Meter-in | Port: Rc/R 1/8
AS2200-02 Type: Elbow | Control: Meter-out | Port: Rc/R 1/4
AS2210-02 Type: Elbow | Control: Meter-in | Port: Rc/R 1/4
AS3200-03 Type: Elbow | Control: Meter-out | Port: Rc/R 3/8
AS3210-03 Type: Elbow | Control: Meter-in | Port: Rc/R 3/8
AS4200-04 Type: Elbow | Control: Meter-out | Port: Rc/R 1/2
AS4210-04 Type: Elbow | Control: Meter-in | Port: Rc/R 1/2
Speed ControllersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS Metal Elbow Speed Controller (Cylinder Direct, AS12x0-AS42x0)

Brand SMC·Speed Controllers

Available part numbers (12)

AS1200-M3, AS1400-M3, AS1200-M5, AS1210-M5, AS2200-01, AS2210-01, AS2200-02, AS2210-02, AS3200-03, AS3210-03 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1200-M3Type: Elbow | Control: Meter-out | Port: M3x0.5
AS1400-M3Type: Flat elbow | Control: Meter-out | Port: M3x0.5
AS1200-M5Type: Elbow | Control: Meter-out | Port: M5x0.8
AS1210-M5Type: Elbow | Control: Meter-in | Port: M5x0.8
AS2200-01Type: Elbow | Control: Meter-out | Port: Rc/R 1/8
AS2210-01Type: Elbow | Control: Meter-in | Port: Rc/R 1/8
AS2200-02Type: Elbow | Control: Meter-out | Port: Rc/R 1/4
AS2210-02Type: Elbow | Control: Meter-in | Port: Rc/R 1/4
AS3200-03Type: Elbow | Control: Meter-out | Port: Rc/R 3/8
AS3210-03Type: Elbow | Control: Meter-in | Port: Rc/R 3/8
AS4200-04Type: Elbow | Control: Meter-out | Port: Rc/R 1/2
AS4210-04Type: Elbow | Control: Meter-in | Port: Rc/R 1/2
