SMC AS-R/AS-Q Air Saving Speed Controller (Elbow, Meter-In)

SMC AS-R/AS-Q Air Saving Speed Controller (Elbow, Meter-In)

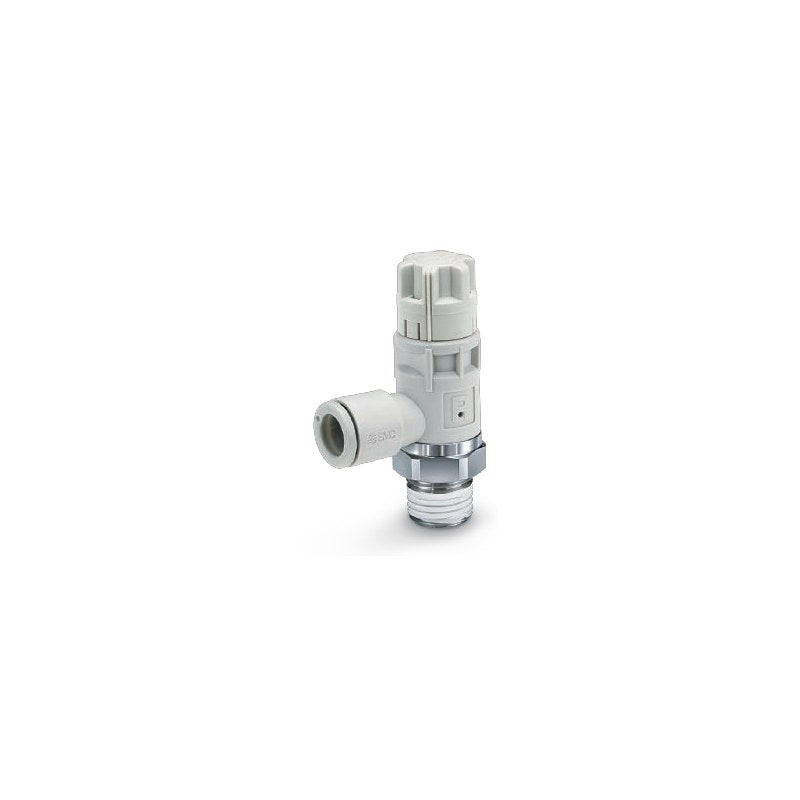

SMC AS-R/AS-Q air saving speed controllers with one-touch fitting: AS-R has a built-in pressure reducing function and AS-Q a built-in quick supply/exhaust function to cut air consumption on the return stroke.

Key features

  • Meter-in construction: the cylinder runs with less flow than conventional meter-out control at the same speed
  • AS-R: supply pressure reduced to approx. 0.2 MPa (handle white); AS-Q: quick supply starts at approx. 0.2 MPa (handle light blue)
  • Elbow type with R male thread (sealant coated) and one-touch fitting for 6 to 12 mm tube
  • Three body sizes: AS22 (1/4 basis), AS32 (3/8 basis), AS42 (1/2 basis)
  • NPT thread with inch tube (07 to 13) and G thread (packing seal) also available on order
  • Listed codes cover R thread, metric tube

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.3 MPa
Set pressure (supply 0.5 MPa) AS-R reduce 0.2 MPa; AS-Q quick supply 0.2 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tube material Nylon, soft nylon, polyurethane, FEP, PFA
Control type Meter-in only
Source SMC Korea catalog (SMCKR_AS_R_AS_Q.pdf), p. 1130-1136 (PDF p. 10-16)
AS22R-01-06 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/8 | Tube OD: 6 mm
AS22R-01-08 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/8 | Tube OD: 8 mm
AS22R-01-10 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/8 | Tube OD: 10 mm
AS22R-02-06 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/4 | Tube OD: 6 mm
AS22R-02-08 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/4 | Tube OD: 8 mm
AS22R-02-10 Function: Pressure reducing (AS-R) | Body size: AS22R (1/4 basis) | Port thread: R1/4 | Tube OD: 10 mm
AS32R-02-06 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R1/4 | Tube OD: 6 mm
AS32R-02-08 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R1/4 | Tube OD: 8 mm
AS32R-02-10 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R1/4 | Tube OD: 10 mm
AS32R-03-06 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R3/8 | Tube OD: 6 mm
AS32R-03-08 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R3/8 | Tube OD: 8 mm
AS32R-03-10 Function: Pressure reducing (AS-R) | Body size: AS32R (3/8 basis) | Port thread: R3/8 | Tube OD: 10 mm
AS42R-03-10 Function: Pressure reducing (AS-R) | Body size: AS42R (1/2 basis) | Port thread: R3/8 | Tube OD: 10 mm
AS42R-03-12 Function: Pressure reducing (AS-R) | Body size: AS42R (1/2 basis) | Port thread: R3/8 | Tube OD: 12 mm
AS42R-04-10 Function: Pressure reducing (AS-R) | Body size: AS42R (1/2 basis) | Port thread: R1/2 | Tube OD: 10 mm
AS42R-04-12 Function: Pressure reducing (AS-R) | Body size: AS42R (1/2 basis) | Port thread: R1/2 | Tube OD: 12 mm
AS22Q-02-06 Function: Quick supply/exhaust (AS-Q) | Body size: AS22Q (1/4 basis) | Port thread: R1/4 | Tube OD: 6 mm
AS22Q-02-08 Function: Quick supply/exhaust (AS-Q) | Body size: AS22Q (1/4 basis) | Port thread: R1/4 | Tube OD: 8 mm
AS22Q-02-10 Function: Quick supply/exhaust (AS-Q) | Body size: AS22Q (1/4 basis) | Port thread: R1/4 | Tube OD: 10 mm
AS32Q-02-06 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R1/4 | Tube OD: 6 mm
AS32Q-02-08 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R1/4 | Tube OD: 8 mm
AS32Q-02-10 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R1/4 | Tube OD: 10 mm
AS32Q-03-06 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R3/8 | Tube OD: 6 mm
AS32Q-03-08 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R3/8 | Tube OD: 8 mm
AS32Q-03-10 Function: Quick supply/exhaust (AS-Q) | Body size: AS32Q (3/8 basis) | Port thread: R3/8 | Tube OD: 10 mm
AS42Q-03-10 Function: Quick supply/exhaust (AS-Q) | Body size: AS42Q (1/2 basis) | Port thread: R3/8 | Tube OD: 10 mm
AS42Q-03-12 Function: Quick supply/exhaust (AS-Q) | Body size: AS42Q (1/2 basis) | Port thread: R3/8 | Tube OD: 12 mm
AS42Q-04-10 Function: Quick supply/exhaust (AS-Q) | Body size: AS42Q (1/2 basis) | Port thread: R1/2 | Tube OD: 10 mm
AS42Q-04-12 Function: Quick supply/exhaust (AS-Q) | Body size: AS42Q (1/2 basis) | Port thread: R1/2 | Tube OD: 12 mm
