SMC AS Speed Controller with One-touch Fitting (Push-Lock, Elbow/Universal)

SMC AS Speed Controller with One-touch Fitting (Push-Lock, Elbow/Universal)

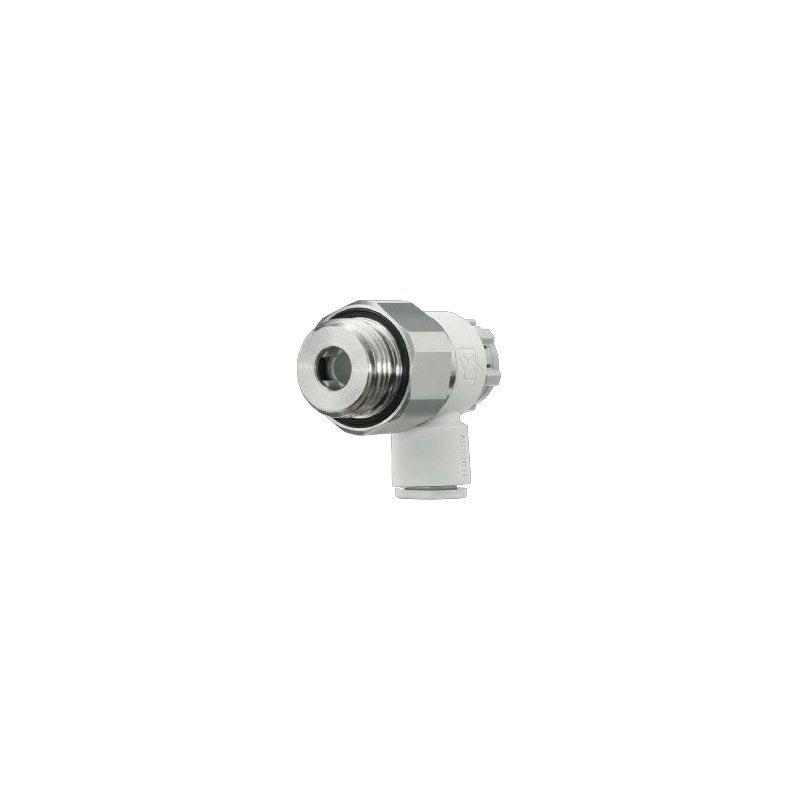

SMC AS series Push-Lock speed controller with one-touch fitting, elbow or universal type, for meter-out or meter-in speed control of pneumatic actuators.

Key features

  • Push-Lock needle: lock and unlock by pushing the enlarged handle, no lock nut or spanner needed
  • Rotation stopper at fully closed position gives repeatable flow setting versus handle turns
  • Body sizes 1 to 4 for M5, 1/8, 1/4, 3/8 and 1/2 ports; brass parts electroless nickel plated
  • Sealant (S) or no-sealant R threads, and packing seal (P) R thread elbow type; G thread packing seal, NPT and 10-32UNF versions also offered
  • Meter-out (grey handle) and meter-in (light blue handle) versions; milli tube release bushing light grey, inch orange
  • Made to order: -X12 (vaseline), -X21 (grease-free + orifice valve), -X214 (orifice valve), 10- (clean)

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -5 to 60°C (no freezing)
Applicable tubing Nylon, soft nylon, polyurethane, FEP, PFA
Body material PBT / brass (electroless nickel plated)
Needle turns 8 (size 1), 10 (sizes 2-4)
Source SMC Korea catalog AS Push-Lock (SMCKR_AS121F-42__1F-A.pdf), p. 549-575 (PDF p. 6-22)
AS1201F-M5E-01A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-01A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1211F-M5E-01A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-01A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1201F-M5E-02A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-02A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-02A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-02A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-03A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-03A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1211F-M5E-03A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-03A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1201F-M5E-04A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-04A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-04A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-04A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-06A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-06A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-06A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-06A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-07A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-07A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1211F-M5E-07A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-07A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1201F-M5E-23A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-23A Type: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-23A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-23A Type: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-01A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-01A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1311F-M5E-01A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-01A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1301F-M5E-03A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-03A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1311F-M5E-03A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-03A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1301F-M5E-04A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-04A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-04A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-04A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-06A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-06A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-06A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-06A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-07A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-07A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1311F-M5E-07A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-07A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1301F-M5E-23A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-23A Type: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-23A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-23A Type: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS2201F-01-01PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2211F-01-01PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2201F-01-01A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201F-01-01SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211F-01-01A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211F-01-01SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201F-01-03PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2211F-01-03PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2201F-01-03A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201F-01-03SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211F-01-03A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211F-01-03SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201F-01-04PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2211F-01-04PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2201F-01-04A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201F-01-04SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211F-01-04A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211F-01-04SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201F-01-06PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2211F-01-06PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2201F-01-06A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201F-01-06SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211F-01-06A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211F-01-06SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201F-01-07PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2211F-01-07PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2201F-01-07A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201F-01-07SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211F-01-07A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211F-01-07SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201F-01-08PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2211F-01-08PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2201F-01-08A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201F-01-08SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211F-01-08A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211F-01-08SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201F-01-09PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2211F-01-09PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2201F-01-09A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201F-01-09SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211F-01-09A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211F-01-09SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201F-01-10PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2211F-01-10PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2201F-01-10A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201F-01-10SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211F-01-10A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211F-01-10SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201F-01-23PA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2211F-01-23PA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2201F-01-23A Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201F-01-23SA Type: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211F-01-23A Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211F-01-23SA Type: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201F-02-01PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2211F-02-01PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2201F-02-01A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201F-02-01SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211F-02-01A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211F-02-01SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201F-02-03PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2211F-02-03PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2201F-02-03A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201F-02-03SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211F-02-03A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211F-02-03SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201F-02-04PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2211F-02-04PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2201F-02-04A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201F-02-04SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211F-02-04A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211F-02-04SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201F-02-06PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2211F-02-06PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2201F-02-06A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201F-02-06SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211F-02-06A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211F-02-06SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201F-02-07PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2211F-02-07PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2201F-02-07A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201F-02-07SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211F-02-07A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211F-02-07SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201F-02-08PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2211F-02-08PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2201F-02-08A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201F-02-08SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211F-02-08A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211F-02-08SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201F-02-09PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2211F-02-09PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2201F-02-09A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201F-02-09SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211F-02-09A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211F-02-09SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201F-02-10PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2211F-02-10PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2201F-02-10A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201F-02-10SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211F-02-10A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211F-02-10SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201F-02-11PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS2211F-02-11PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS2201F-02-11A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2201F-02-11SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2211F-02-11A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2211F-02-11SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2201F-02-23PA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2211F-02-23PA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2201F-02-23A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201F-02-23SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211F-02-23A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211F-02-23SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301F-01-01A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2301F-01-01SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2311F-01-01A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2311F-01-01SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2301F-01-03A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301F-01-03SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311F-01-03A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311F-01-03SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301F-01-04A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301F-01-04SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311F-01-04A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311F-01-04SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301F-01-06A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301F-01-06SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311F-01-06A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311F-01-06SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301F-01-07A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301F-01-07SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311F-01-07A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311F-01-07SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301F-01-08A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301F-01-08SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311F-01-08A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311F-01-08SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301F-01-09A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301F-01-09SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311F-01-09A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311F-01-09SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301F-01-23A Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301F-01-23SA Type: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311F-01-23A Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311F-01-23SA Type: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301F-02-03A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301F-02-03SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311F-02-03A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311F-02-03SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301F-02-04A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301F-02-04SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311F-02-04A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311F-02-04SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301F-02-06A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301F-02-06SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311F-02-06A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311F-02-06SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301F-02-07A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301F-02-07SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311F-02-07A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311F-02-07SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301F-02-08A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301F-02-08SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311F-02-08A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311F-02-08SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301F-02-09A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301F-02-09SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311F-02-09A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311F-02-09SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301F-02-10A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301F-02-10SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311F-02-10A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311F-02-10SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301F-02-11A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2301F-02-11SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2311F-02-11A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2311F-02-11SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-02-06A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201F-02-06SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211F-02-06A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211F-02-06SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201F-02-07A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201F-02-07SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211F-02-07A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211F-02-07SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201F-02-08A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201F-02-08SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211F-02-08A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211F-02-08SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201F-02-09A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201F-02-09SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211F-02-09A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211F-02-09SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201F-02-10A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201F-02-10SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211F-02-10A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211F-02-10SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201F-02-11A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201F-02-11SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211F-02-11A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211F-02-11SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-02-12A Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201F-02-12SA Type: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211F-02-12A Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211F-02-12SA Type: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3201F-03-06PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS3211F-03-06PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS3201F-03-06A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201F-03-06SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211F-03-06A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211F-03-06SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201F-03-07PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS3211F-03-07PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS3201F-03-07A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201F-03-07SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211F-03-07A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211F-03-07SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201F-03-08PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS3211F-03-08PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS3201F-03-08A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201F-03-08SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211F-03-08A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211F-03-08SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201F-03-09PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS3211F-03-09PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS3201F-03-09A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201F-03-09SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211F-03-09A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211F-03-09SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201F-03-10PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS3211F-03-10PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS3201F-03-10A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201F-03-10SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211F-03-10A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211F-03-10SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201F-03-11PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS3211F-03-11PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS3201F-03-11A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201F-03-11SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211F-03-11A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211F-03-11SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-03-12PA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS3211F-03-12PA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS3201F-03-12A Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201F-03-12SA Type: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211F-03-12A Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211F-03-12SA Type: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301F-02-06A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301F-02-06SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311F-02-06A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311F-02-06SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301F-02-07A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301F-02-07SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311F-02-07A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311F-02-07SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301F-02-08A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301F-02-08SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311F-02-08A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311F-02-08SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301F-02-09A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301F-02-09SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311F-02-09A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311F-02-09SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301F-02-10A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301F-02-10SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311F-02-10A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311F-02-10SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301F-02-11A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301F-02-11SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311F-02-11A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311F-02-11SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301F-02-12A Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301F-02-12SA Type: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311F-02-12A Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311F-02-12SA Type: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301F-03-06A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301F-03-06SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311F-03-06A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311F-03-06SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301F-03-07A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301F-03-07SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311F-03-07A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311F-03-07SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301F-03-08A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301F-03-08SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311F-03-08A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311F-03-08SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301F-03-09A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301F-03-09SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311F-03-09A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311F-03-09SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301F-03-10A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301F-03-10SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311F-03-10A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311F-03-10SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301F-03-11A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301F-03-11SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311F-03-11A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311F-03-11SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301F-03-12A Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301F-03-12SA Type: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311F-03-12A Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311F-03-12SA Type: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201F-04-10PA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS4211F-04-10PA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS4201F-04-10A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4201F-04-10SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4211F-04-10A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4211F-04-10SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4201F-04-11PA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS4211F-04-11PA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS4201F-04-11A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4201F-04-11SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4211F-04-11A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4211F-04-11SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4201F-04-12PA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS4211F-04-12PA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS4201F-04-12A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4201F-04-12SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4211F-04-12A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4211F-04-12SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201F-04-13PA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Packing seal (P)
AS4211F-04-13PA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Packing seal (P)
AS4201F-04-13A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4201F-04-13SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4211F-04-13A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4211F-04-13SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4201F-04-16A Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4201F-04-16SA Type: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4211F-04-16A Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4211F-04-16SA Type: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4301F-04-10A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4301F-04-10SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4311F-04-10A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4311F-04-10SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4301F-04-11A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4301F-04-11SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4311F-04-11A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4311F-04-11SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4301F-04-12A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4301F-04-12SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4311F-04-12A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4311F-04-12SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4301F-04-13A Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4301F-04-13SA Type: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4311F-04-13A Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4311F-04-13SA Type: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
Speed ControllersSMC
400 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AS Speed Controller with One-touch Fitting (Push-Lock, Elbow/Universal)

Brand SMC·Speed Controllers

Available part numbers (400)

AS1201F-M5E-01A, AS1201F-M5-01A, AS1211F-M5E-01A, AS1211F-M5-01A, AS1201F-M5E-02A, AS1201F-M5-02A, AS1211F-M5E-02A, AS1211F-M5-02A, AS1201F-M5E-03A, AS1201F-M5-03A + 390 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AS1201F-M5E-01AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-01AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1211F-M5E-01AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-01AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1201F-M5E-02AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-02AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-02AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-02AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø2 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-03AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-03AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1211F-M5E-03AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-03AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1201F-M5E-04AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-04AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-04AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-04AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-06AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-06AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-06AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-06AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1201F-M5E-07AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1201F-M5-07AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1211F-M5E-07AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1211F-M5-07AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1201F-M5E-23AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1201F-M5-23AType: Elbow | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1211F-M5E-23AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1211F-M5-23AType: Elbow | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-01AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-01AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1311F-M5E-01AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-01AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/8 in | Seal/hex: Hex 9 mm
AS1301F-M5E-03AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-03AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1311F-M5E-03AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-03AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø5/32 in | Seal/hex: Hex 9 mm
AS1301F-M5E-04AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-04AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-04AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-04AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø4 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-06AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-06AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-06AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-06AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø6 mm | Seal/hex: Hex 9 mm
AS1301F-M5E-07AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1301F-M5-07AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1311F-M5E-07AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 8 mm (E)
AS1311F-M5-07AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø1/4 in | Seal/hex: Hex 9 mm
AS1301F-M5E-23AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1301F-M5-23AType: Universal | Control: Meter-out | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS1311F-M5E-23AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 8 mm (E)
AS1311F-M5-23AType: Universal | Control: Meter-in | Port: M5x0.8 | Tube OD: ø3.2 mm | Seal/hex: Hex 9 mm
AS2201F-01-01PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2211F-01-01PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2201F-01-01AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201F-01-01SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211F-01-01AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211F-01-01SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201F-01-03PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2211F-01-03PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2201F-01-03AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201F-01-03SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211F-01-03AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211F-01-03SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201F-01-04PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2211F-01-04PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2201F-01-04AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201F-01-04SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211F-01-04AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211F-01-04SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201F-01-06PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2211F-01-06PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2201F-01-06AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201F-01-06SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211F-01-06AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211F-01-06SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201F-01-07PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2211F-01-07PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2201F-01-07AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201F-01-07SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211F-01-07AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211F-01-07SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201F-01-08PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2211F-01-08PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2201F-01-08AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201F-01-08SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211F-01-08AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211F-01-08SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201F-01-09PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2211F-01-09PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2201F-01-09AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201F-01-09SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211F-01-09AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211F-01-09SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201F-01-10PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2211F-01-10PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2201F-01-10AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201F-01-10SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211F-01-10AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211F-01-10SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201F-01-23PAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2211F-01-23PAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2201F-01-23AType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201F-01-23SAType: Elbow | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211F-01-23AType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211F-01-23SAType: Elbow | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2201F-02-01PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2211F-02-01PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Packing seal (P)
AS2201F-02-01AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2201F-02-01SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2211F-02-01AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2211F-02-01SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2201F-02-03PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2211F-02-03PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Packing seal (P)
AS2201F-02-03AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2201F-02-03SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2211F-02-03AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2211F-02-03SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2201F-02-04PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2211F-02-04PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Packing seal (P)
AS2201F-02-04AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2201F-02-04SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2211F-02-04AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2211F-02-04SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2201F-02-06PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2211F-02-06PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS2201F-02-06AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2201F-02-06SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2211F-02-06AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2211F-02-06SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2201F-02-07PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2211F-02-07PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS2201F-02-07AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2201F-02-07SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2211F-02-07AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2211F-02-07SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2201F-02-08PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2211F-02-08PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS2201F-02-08AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2201F-02-08SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2211F-02-08AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2211F-02-08SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2201F-02-09PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2211F-02-09PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS2201F-02-09AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2201F-02-09SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2211F-02-09AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2211F-02-09SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2201F-02-10PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2211F-02-10PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS2201F-02-10AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2201F-02-10SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2211F-02-10AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2211F-02-10SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2201F-02-11PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS2211F-02-11PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS2201F-02-11AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2201F-02-11SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2211F-02-11AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2211F-02-11SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2201F-02-23PAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2211F-02-23PAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Packing seal (P)
AS2201F-02-23AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2201F-02-23SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2211F-02-23AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2211F-02-23SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301F-01-01AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2301F-01-01SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2311F-01-01AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: No sealant
AS2311F-01-01SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/8 in | Seal/hex: Sealant (S)
AS2301F-01-03AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301F-01-03SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311F-01-03AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311F-01-03SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301F-01-04AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301F-01-04SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311F-01-04AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311F-01-04SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301F-01-06AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301F-01-06SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311F-01-06AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311F-01-06SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301F-01-07AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301F-01-07SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311F-01-07AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311F-01-07SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301F-01-08AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301F-01-08SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311F-01-08AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311F-01-08SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301F-01-09AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301F-01-09SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311F-01-09AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311F-01-09SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301F-01-23AType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2301F-01-23SAType: Universal | Control: Meter-out | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2311F-01-23AType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: No sealant
AS2311F-01-23SAType: Universal | Control: Meter-in | Port: R1/8 | Tube OD: ø3.2 mm | Seal/hex: Sealant (S)
AS2301F-02-03AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2301F-02-03SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2311F-02-03AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: No sealant
AS2311F-02-03SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/32 in | Seal/hex: Sealant (S)
AS2301F-02-04AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2301F-02-04SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2311F-02-04AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: No sealant
AS2311F-02-04SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø4 mm | Seal/hex: Sealant (S)
AS2301F-02-06AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2301F-02-06SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2311F-02-06AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS2311F-02-06SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS2301F-02-07AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2301F-02-07SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2311F-02-07AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS2311F-02-07SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS2301F-02-08AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2301F-02-08SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2311F-02-08AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS2311F-02-08SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS2301F-02-09AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2301F-02-09SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2311F-02-09AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS2311F-02-09SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS2301F-02-10AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2301F-02-10SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2311F-02-10AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS2311F-02-10SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS2301F-02-11AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2301F-02-11SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS2311F-02-11AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS2311F-02-11SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-02-06AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201F-02-06SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211F-02-06AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211F-02-06SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201F-02-07AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201F-02-07SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211F-02-07AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211F-02-07SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201F-02-08AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201F-02-08SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211F-02-08AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211F-02-08SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201F-02-09AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201F-02-09SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211F-02-09AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211F-02-09SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201F-02-10AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201F-02-10SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211F-02-10AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211F-02-10SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201F-02-11AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201F-02-11SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211F-02-11AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211F-02-11SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-02-12AType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201F-02-12SAType: Elbow | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211F-02-12AType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211F-02-12SAType: Elbow | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3201F-03-06PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS3211F-03-06PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Packing seal (P)
AS3201F-03-06AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3201F-03-06SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3211F-03-06AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3211F-03-06SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3201F-03-07PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS3211F-03-07PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Packing seal (P)
AS3201F-03-07AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3201F-03-07SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3211F-03-07AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3211F-03-07SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3201F-03-08PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS3211F-03-08PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Packing seal (P)
AS3201F-03-08AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3201F-03-08SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3211F-03-08AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3211F-03-08SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3201F-03-09PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS3211F-03-09PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Packing seal (P)
AS3201F-03-09AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3201F-03-09SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3211F-03-09AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3211F-03-09SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3201F-03-10PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS3211F-03-10PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS3201F-03-10AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3201F-03-10SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3211F-03-10AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3211F-03-10SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3201F-03-11PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS3211F-03-11PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS3201F-03-11AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3201F-03-11SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3211F-03-11AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3211F-03-11SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3201F-03-12PAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS3211F-03-12PAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS3201F-03-12AType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3201F-03-12SAType: Elbow | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3211F-03-12AType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3211F-03-12SAType: Elbow | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301F-02-06AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301F-02-06SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311F-02-06AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311F-02-06SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301F-02-07AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301F-02-07SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311F-02-07AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311F-02-07SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301F-02-08AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301F-02-08SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311F-02-08AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311F-02-08SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301F-02-09AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301F-02-09SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311F-02-09AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311F-02-09SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301F-02-10AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301F-02-10SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311F-02-10AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311F-02-10SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301F-02-11AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301F-02-11SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311F-02-11AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311F-02-11SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301F-02-12AType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301F-02-12SAType: Universal | Control: Meter-out | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311F-02-12AType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311F-02-12SAType: Universal | Control: Meter-in | Port: R1/4 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3301F-03-06AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3301F-03-06SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3311F-03-06AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: No sealant
AS3311F-03-06SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø6 mm | Seal/hex: Sealant (S)
AS3301F-03-07AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3301F-03-07SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3311F-03-07AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: No sealant
AS3311F-03-07SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø1/4 in | Seal/hex: Sealant (S)
AS3301F-03-08AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3301F-03-08SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3311F-03-08AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: No sealant
AS3311F-03-08SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø8 mm | Seal/hex: Sealant (S)
AS3301F-03-09AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3301F-03-09SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3311F-03-09AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: No sealant
AS3311F-03-09SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø5/16 in | Seal/hex: Sealant (S)
AS3301F-03-10AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3301F-03-10SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3311F-03-10AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: No sealant
AS3311F-03-10SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS3301F-03-11AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3301F-03-11SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3311F-03-11AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS3311F-03-11SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS3301F-03-12AType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3301F-03-12SAType: Universal | Control: Meter-out | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS3311F-03-12AType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: No sealant
AS3311F-03-12SAType: Universal | Control: Meter-in | Port: R3/8 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201F-04-10PAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS4211F-04-10PAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Packing seal (P)
AS4201F-04-10AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4201F-04-10SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4211F-04-10AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4211F-04-10SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4201F-04-11PAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS4211F-04-11PAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Packing seal (P)
AS4201F-04-11AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4201F-04-11SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4211F-04-11AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4211F-04-11SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4201F-04-12PAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS4211F-04-12PAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Packing seal (P)
AS4201F-04-12AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4201F-04-12SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4211F-04-12AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4211F-04-12SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4201F-04-13PAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Packing seal (P)
AS4211F-04-13PAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Packing seal (P)
AS4201F-04-13AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4201F-04-13SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4211F-04-13AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4211F-04-13SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4201F-04-16AType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4201F-04-16SAType: Elbow | Control: Meter-out | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4211F-04-16AType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: No sealant
AS4211F-04-16SAType: Elbow | Control: Meter-in | Port: R1/2 | Tube OD: ø16 mm | Seal/hex: Sealant (S)
AS4301F-04-10AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4301F-04-10SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4311F-04-10AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: No sealant
AS4311F-04-10SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø10 mm | Seal/hex: Sealant (S)
AS4301F-04-11AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4301F-04-11SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4311F-04-11AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: No sealant
AS4311F-04-11SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø3/8 in | Seal/hex: Sealant (S)
AS4301F-04-12AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4301F-04-12SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4311F-04-12AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: No sealant
AS4311F-04-12SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø12 mm | Seal/hex: Sealant (S)
AS4301F-04-13AType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4301F-04-13SAType: Universal | Control: Meter-out | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)
AS4311F-04-13AType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: No sealant
AS4311F-04-13SAType: Universal | Control: Meter-in | Port: R1/2 | Tube OD: ø1/2 in | Seal/hex: Sealant (S)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
